Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 387

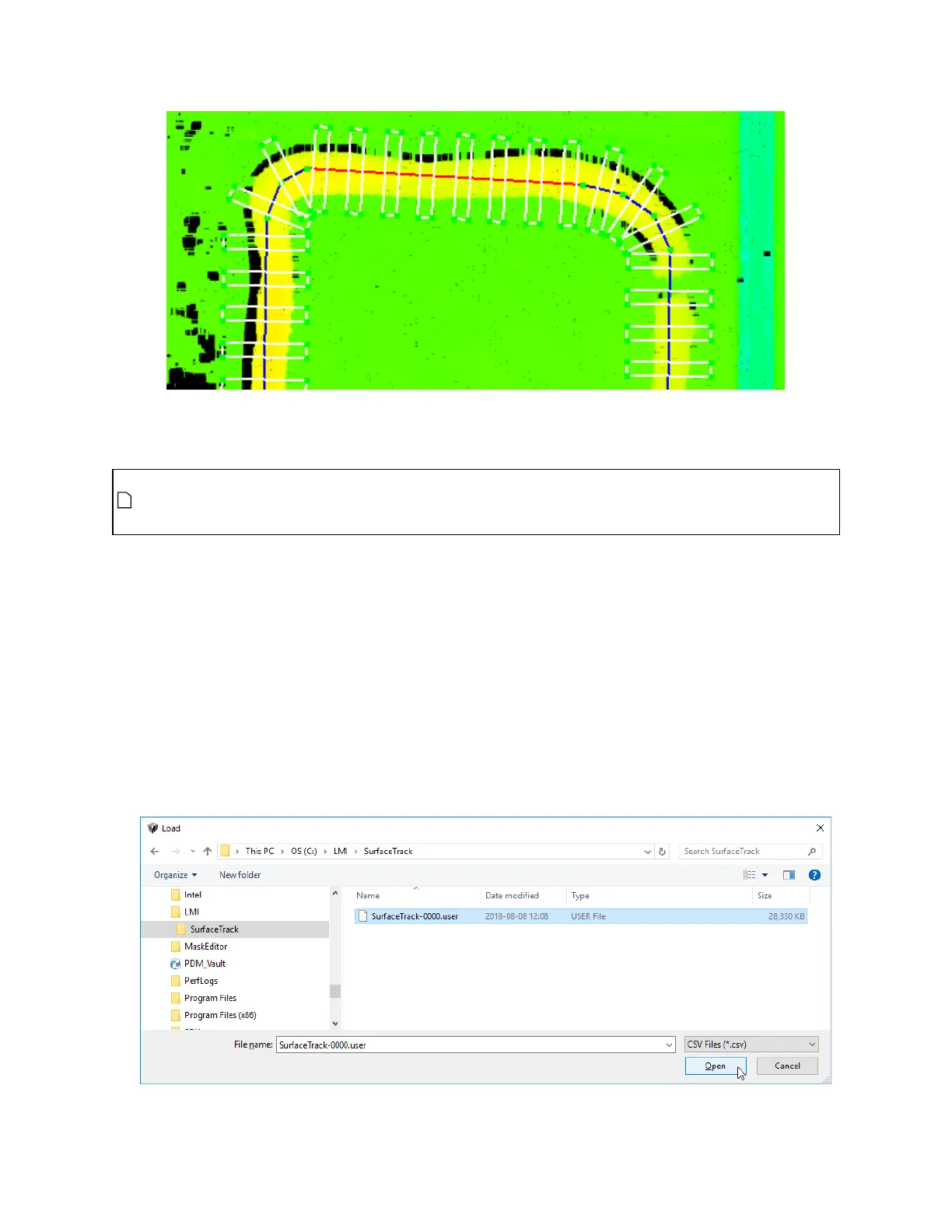

Closeup of the track editor window, showing a track of material on a surface (yellow on green),
a path (blue segments; red segment for the currently selected segment),
path points (green dots), and rulers (white rectangles).
The following assumes that you have already scanned a representative target and created a
CSVfile from within the Track tool. For more information, see the first steps of To configure the
Track tool: on page 380.
Loading and working with scan/track data:
1. In the track editor, in the Source drop-down, choose one of the following:
l PC:Choose thisoption if you are using the Track tool through the accelerator. The track editor will
retrieve the path data file from local (PC)storage and save changes there. (Choose the same if you
are using the emulator).
l Sensor:Choose this option if you are not using the accelerator. The track editor will retrieve the path
data file from the sensor at the IPaddress specified in the IPfield. Because sensors have a limited
amount of space to store path data, only use this option for simple paths.
2. Click Load Tracks, navigate to "C:\LMI\SurfaceTrack" (if you have chosen PCas the source), and choose the
.userfile you created using the Surface Track tool.
The track editor loads the data. If paths have been previously defined, they are also loaded.
