Gocator Line Profile Sensors: User Manual
How Gocator Works • 61

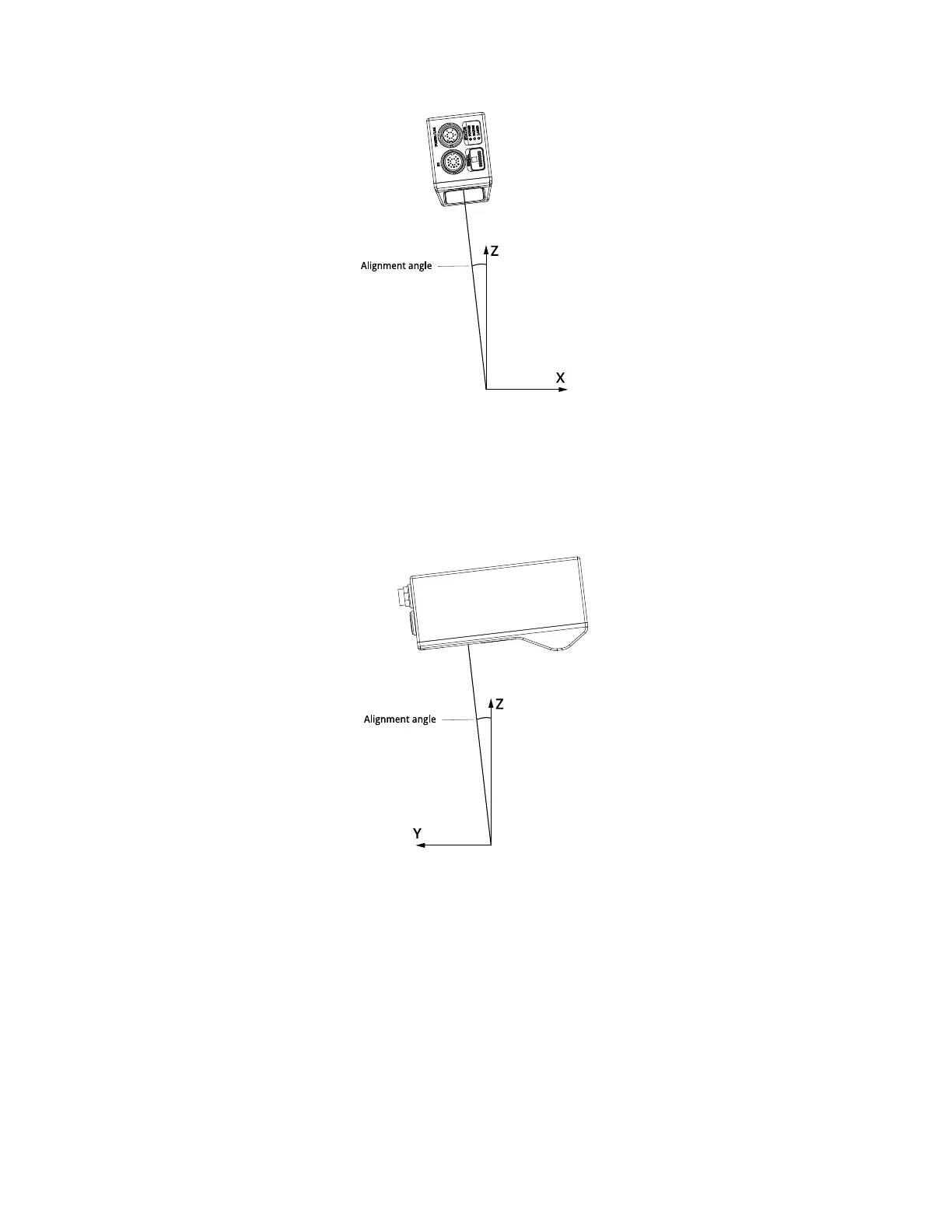

Gocator 2130/2330:Y Angle
Y angle is positive when rotating from positive X to positive Z axis.
Similarly, tilt can be determined around the X and the Zaxis, which compensates for the angle in height
measurements. These are sometimes called pitch correction and yaw correction, respectively. Rotation
around the X axis often used for specular mounting.
Gocator 2130/2330:X Angle
