Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 86
Setting Description
Any Condition
Gocator records a frame when any condition is true.
All Conditions
Gocator only records a frame if all conditions are true.
How Gocator treats conditions
Setting Description
Any Measurement
Gocator records a frame when any measurement is in the state you select.
The following states are supported:
l pass
l fail or invalid
l fail and valid
l valid
l invalid
Single Measurement
Gocator records a frame if the measurement with the IDyou specify in IDis in the state
you select. This setting supports the same states as the Any Measurement setting (see
above).
Any Data
At/Above Threshold: Gocator records a frame if the number of valid points in the
frame is above the value you specify in Range Count Threshold.
Below Threshold: Gocator records a frame if the number of valid points is below the
threshold you specify.
In Surface mode, the number of valid points in the surface is compared to the
threshold, not any sections that may be defined.
Conditions

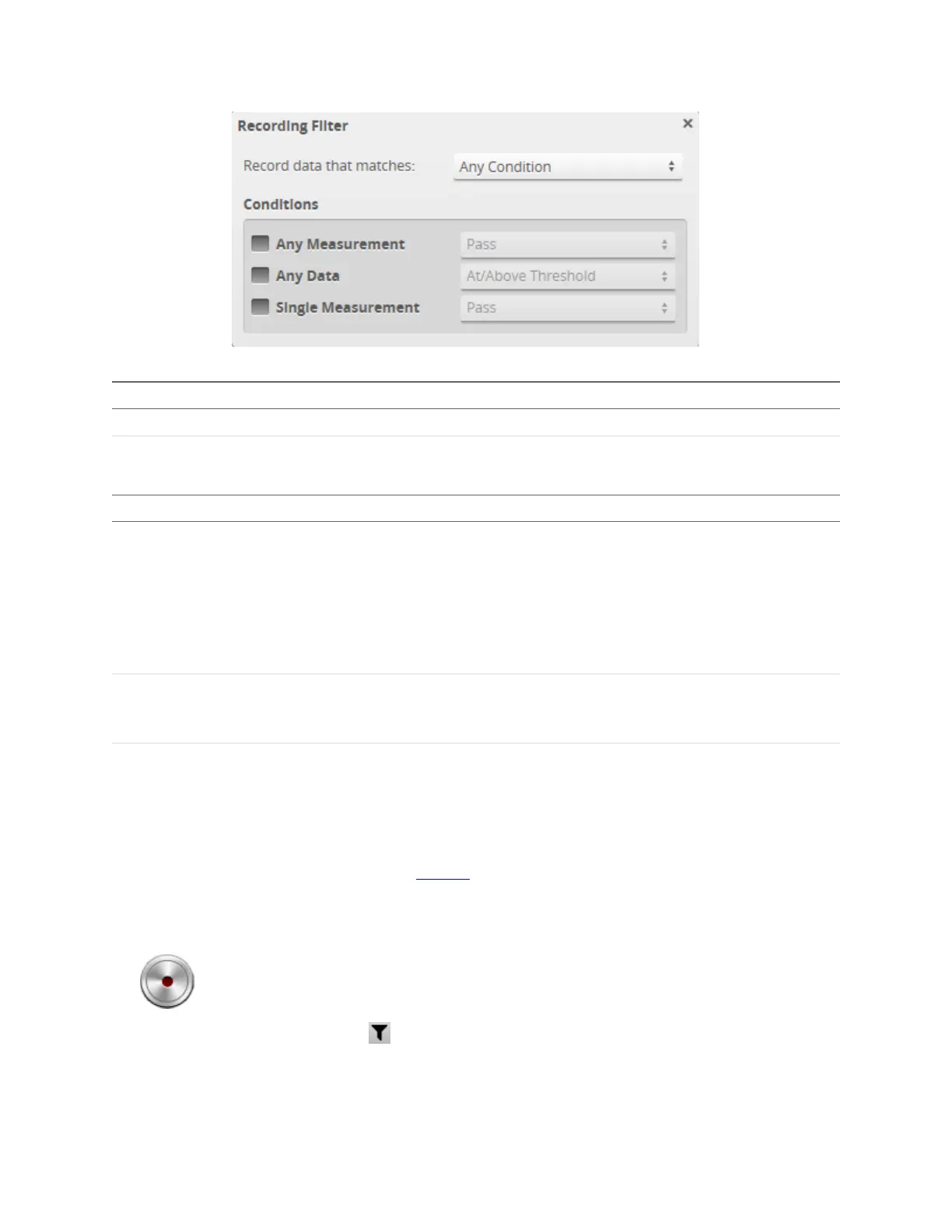

To set recording filtering:
1. Make sure recording is enabled by clicking the Record button.
2. Click the Recording Filtering button .
3. In the Recording Filtering dialog, choose how Gocator treats conditions:
For information on the available settings, see How Gocator treats conditions above.
