LSIS LSLV-S100 User Manual

Technical Specification
427

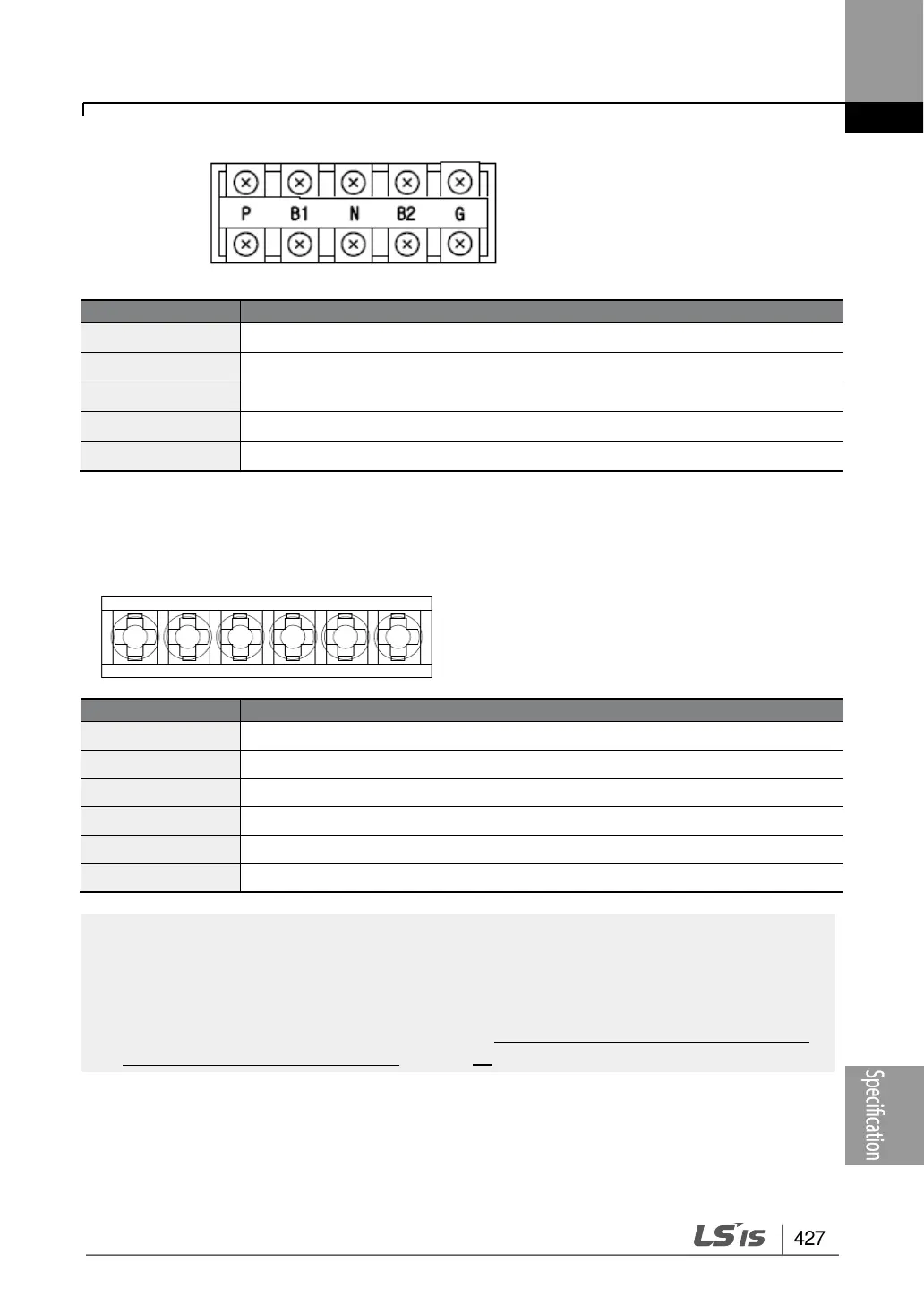

Group 3:
Terminals
Functions
G
Ground Terminal
B2
Terminal for connection with B2 of DBU
B1
Terminal for connection with B1 of DBU
N
Terminal for connection with N of Inverter
P
Terminal for connection with P1 of Inverter
Group 4,5:
Terminals
Functions
P(+)
Terminal for connection with P of Inverter
N(-)
Terminal for connection with N of Inverter
B1
Terminal for connection with B1 of DBU
B2
Terminal for connection with B2 of DBU
N.C
Unused
E
Ground Terminal
Note
• You must refer to dynamic braking unit manual for choice the braking resistor to use the
dynamic braking unit.
• For detailed information on DBU wiring, refer to 2.2 Cable Wiring, Step 7 Selecting the
brake unit (30-75kW models only) on page 52.
P(+) N(-) B1 B2 N.C E
