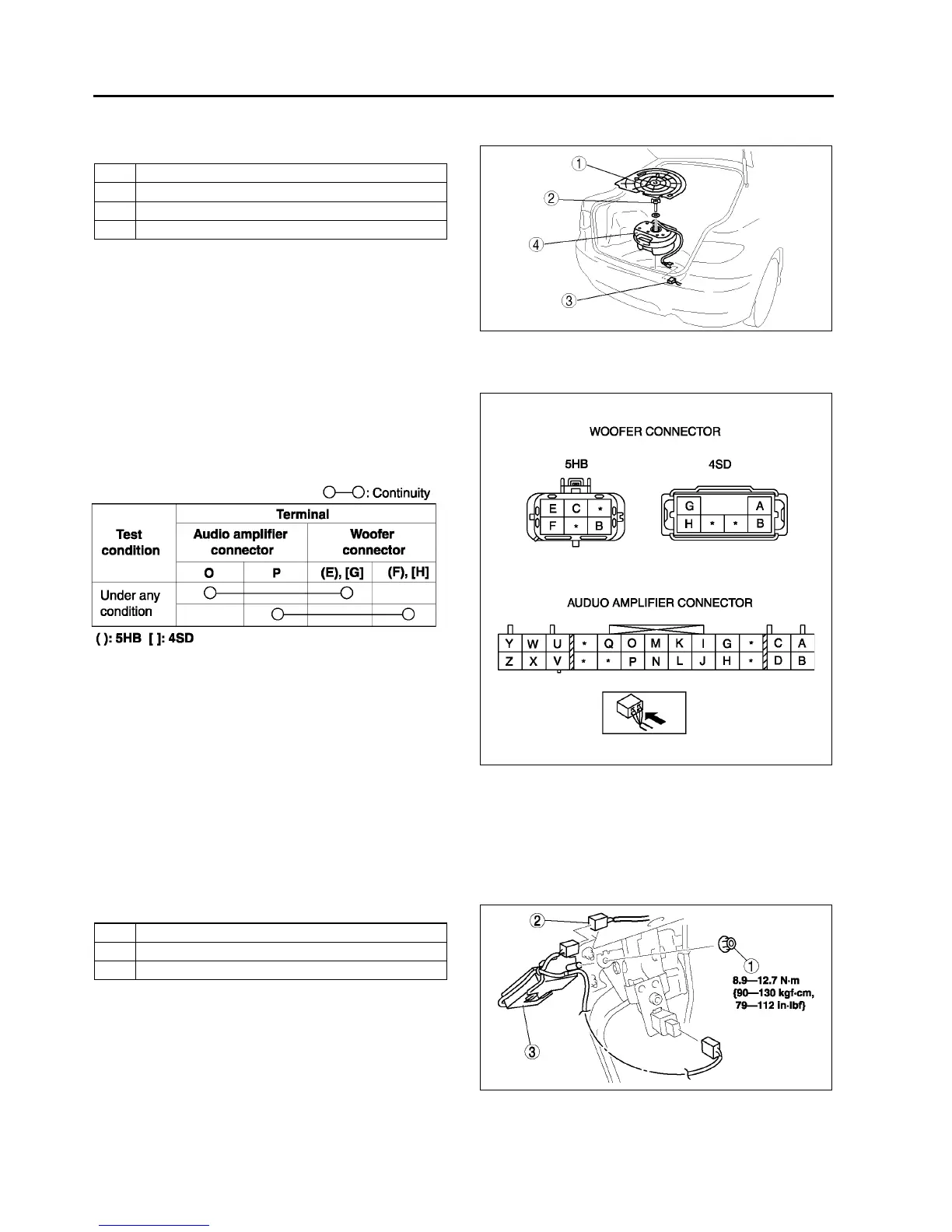

Mazda 2002 6 - Noise Filter; Removal;Installation; Woofer Inspection

T–104
AUDIO AND NAVIGATION SYSTEM
5HB
1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
End Of Sie
WOOFER INSPECTION
A6E812466967W02
1. Inspect for continuity between the audio amplifier
connector terminals and woofer connector
terminals using an ohmmeter.
• If not as specified, replace the related wiring
harnesses.
2. Verify that there is battery positive voltage at the
woofer connector terminal A (4SD) or C (5HB)
using a voltmeter.
• If not as specified, replace the related wiring
haness.
3. Inspect continuity between the woofer connector
terminal B and body ground using an ohmmeter.
• If not as specified, replace the related wiring
harness.
• If as specified, replace the woofer.
End Of Sie
NOISE FILTER REMOVAL/INSTALLATION
A6E812466869W01
Brake Light Noise Filter
1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
1 Temporary spare tire cover
2 Wing bolt
3 Connector
4Woofer
A6E8124W006
A6E8124W046
A6E8124W024
1Nut
2 Connector
3 Noise filter
A6E8124W008
