CONVENTIONAL BRAKE SYSTEM
P–23
P

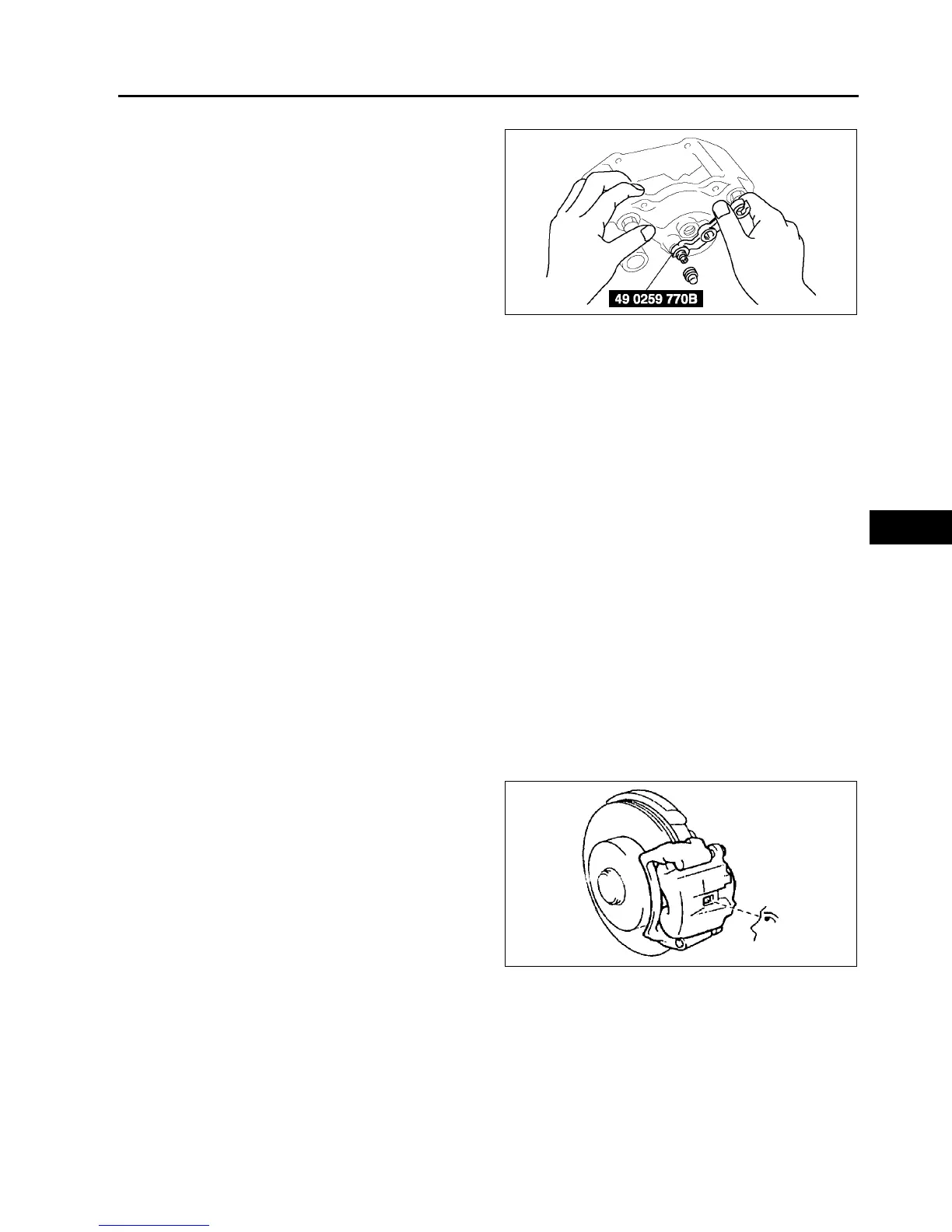

Bleeder Screw Assembly Note
1. Assemble the bleeder screw to the caliper using
the SST.
Tightening torque
6.9—9.8 N·m {71—99 kgf·cm, 62—86 in·lbf}
End Of Sie
REAR BRAKE (DISC) INSPECTION
A6E691226980W01
Brake Judder Repair Hint
1. (See P–17 FRONT BRAKE (DISC) INSPECTION.)
Disc Plate Thickness Inspection
Caution
• Excessive runout may result if the disc plate is removed from the vehicle then machined. Machine
the disc plate while installed on the vehicle.
1. Measure the thickness of the disc plate.
• If the thickness is not within the specification, replace the disc plate.
Minimum
8 mm {0.31 in}
Minimum thickness after machining using a brake lathe on-vehicle
8.8 mm {0.35 in}
Disc Pad Thickness Inspection
1. Jack up the front of the vehicle and support it with safety stands.
2. Remove the wheel and tires.
3. Verify the remaining thickness of the pads.
Minimum thickness
2.0 mm {0.079 in} min.
4. Replace the pads as a set: right and left wheels, if
either one is at or less than the minimum
thickness.
End Of Sie
A6E6912W049
X3U411WAS
