AUTOMATIC TRANSAXLE SHIFT MECHANISM
K–51
K
K AUTOMATIC TRANSAXLE
SELECTOR LEVER DISASSEMBLY/ASSEMBLY
A6E561646102W04

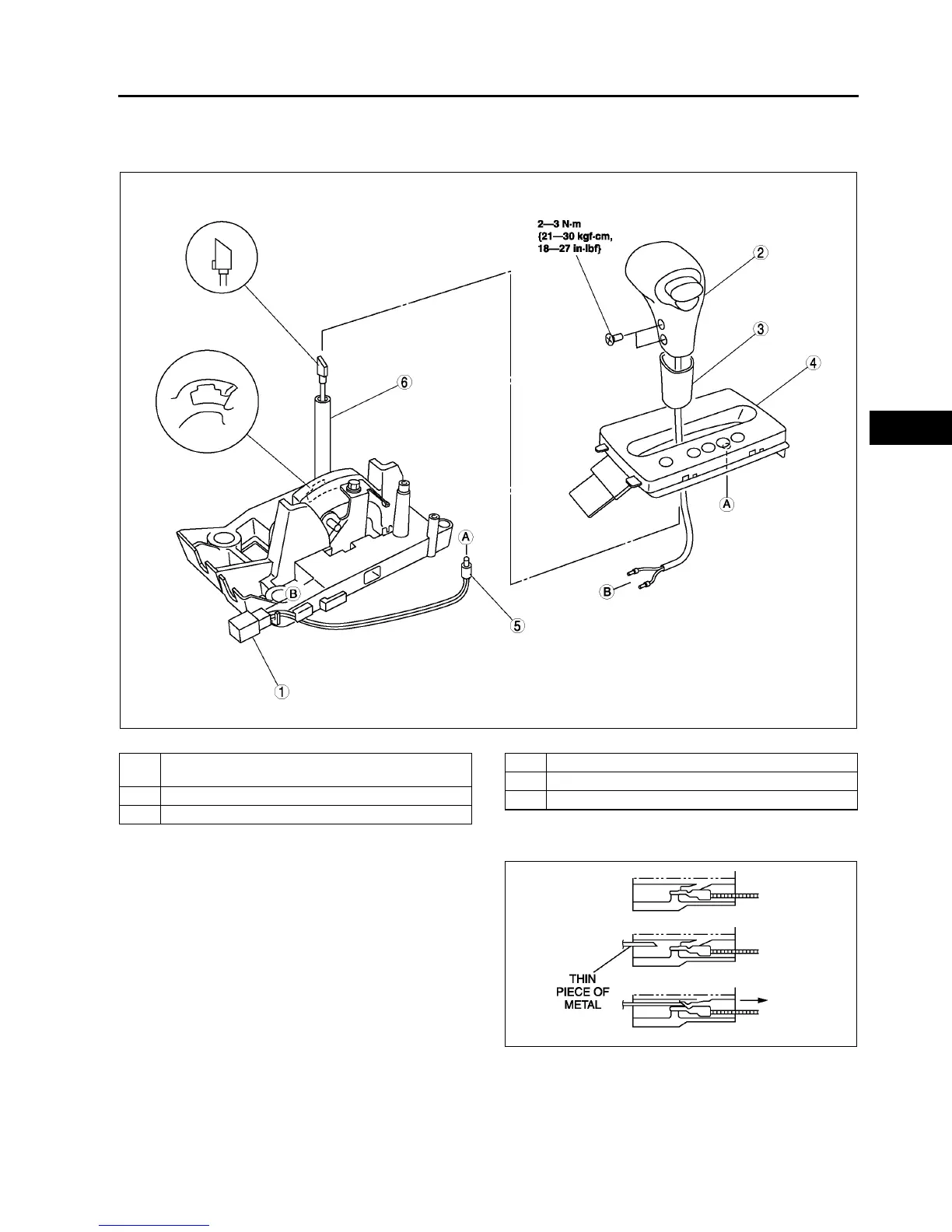

1. Disassemble in the order shown in the figure.
2. Assemble in the reverse order of disassembly.
.
Connector Disassembly Note
1. Insert a thin piece of metal from the terminal side
of the connector, and press down the terminal
locking tab.
2. Pull the terminal out of the connector.
End Of Sie
AUTOMATIC TRANSAXLE SHIFT MECHANISM
A6E5616W015
1 Connector
(See K–51 Connector Disassembly Note.)
2 Selector lever knob component
3 Cover
4 Indicator panel
5 Selector illumination light
6Selector lever
A6E5616W016
