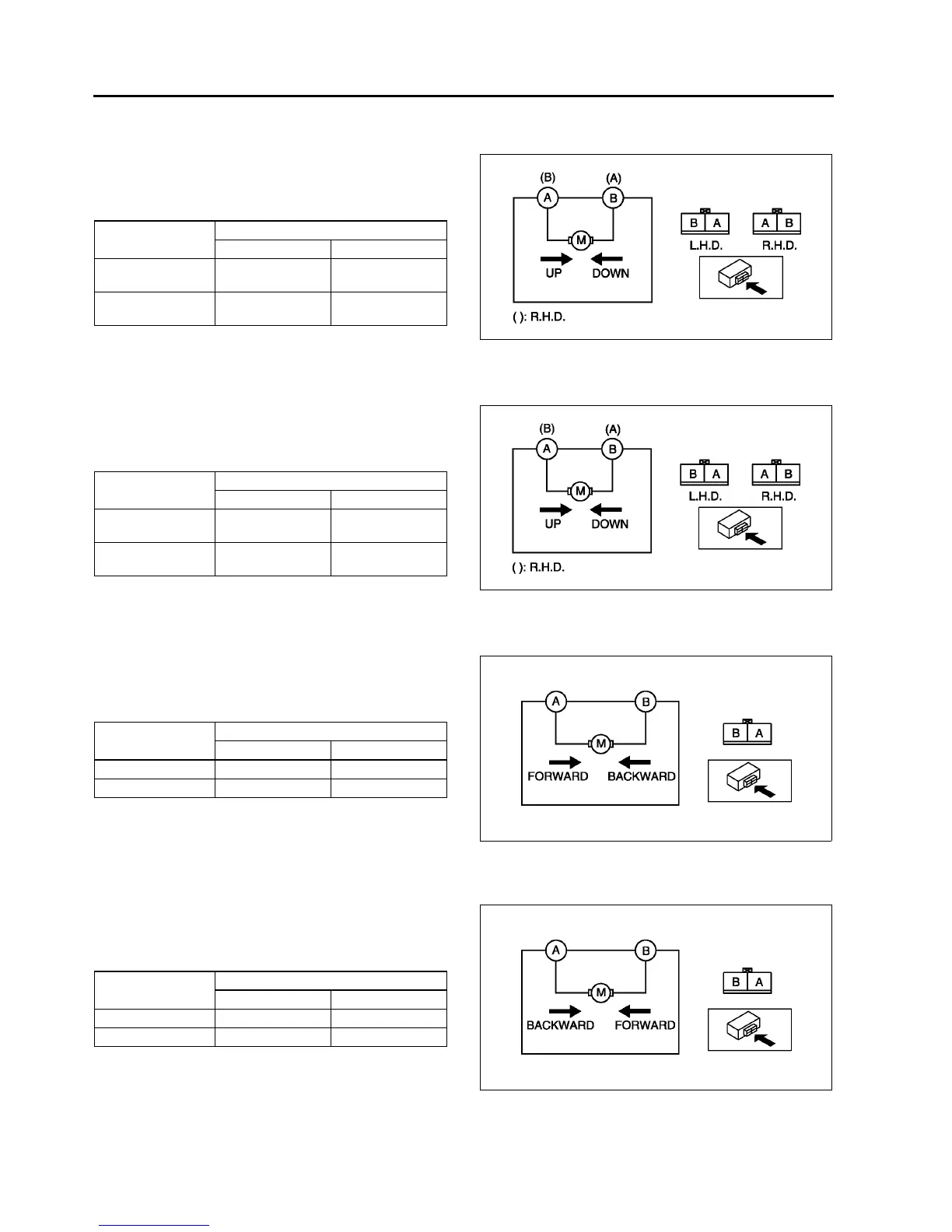

FRONT TILT MOTOR INSPECTION
A6E775288650W01
1. Disconnect the front tilt motor connector.
2. Inspect the front tilt motor operation when B+ is
applied to the terminals as shown.
• If not as specified, replace the seat cushion
frame.
( ) : R.H.D.
End Of Sie
REAR TILT MOTOR INSPECTION
A6E775288651W01
1. Disconnect the rear tilt motor connector.
2. Inspect the rear tilt motor operation when B+ is
applied to the terminals as shown.
• If not as specified, replace the seat cushion
frame.
( ) : R.H.D.
End Of Sie
SLIDE MOTOR INSPECTION
A6E775288662W01
1. Disconnect the slide motor connector.
2. Inspect the slide motor operation when B+ is
applied to the terminals as shown.
• If not as specified, replace the seat cushion
frame.
End Of Sie
RECLINER MOTOR INSPECTION
A6E775288663W01
1. Disconnect the recliner motor connector.
2. Inspect the recliner motor operation when B+ is
applied to the terminal as shown.
• If not as specified, replace the seat cushion
frame.
End Of Sie
Motor operation
Connection
B+ GND
Up
A
(B)
B
(A)
Down
B
(A)
A
(B)
A6E7752W008
Motor operation
Connection
B+ GND
Up
A
(B)
B
(A)
Down
B
(A)
A
(B)
A6E7752W009
Motor operation
Connection
B+ GND
Forward A B
Backward B A
A6E7752W010
Motor operation
Connection
B+ GND
Forward B A
Backward A B
A6E7752W028
