S–56
MOLDING

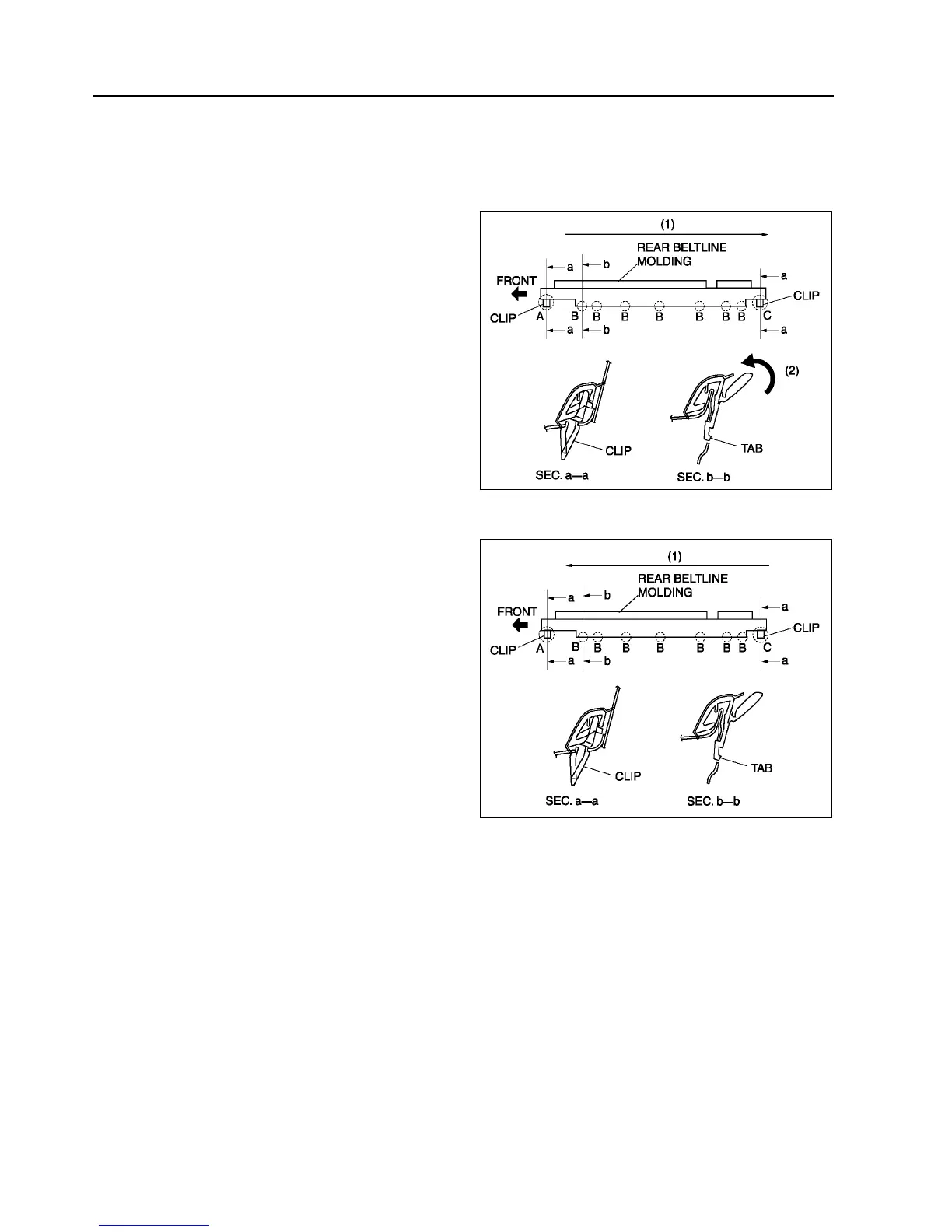

REAR BELTLINE MOLDING REMOVAL
A6E773050660W01
Note
• When removing the rear beltline molding, the clip may be damaged. If the clip is damaged, replace it with
a new one.
1. Pull the A section upward and remove the clip.
2. Rotate the B section of the front beltline molding
in direction (2), along the direction (1) shown in
the figure and remove it from the body.
3. Pull the C section upward and remove the clip.
Then remove the front beltline molding.
End Of Sie
REAR BELTLINE MOLDING INSTALLATION
A6E773050660W02
1. Press the clip at the C section into the body.
2. Press in the B section of the rear beltline molding
along the direction (1) to attach it to the body.
3. Press the clip at the A section in and attach the
rear beltline molding.
Note
• If the rear beltline molding is difficult to
attach, apply soapy water.
End Of Sie
A6E7730W004
A6E7730W005
