EXTERIOR LIGHTING SYSTEM
T–35
T

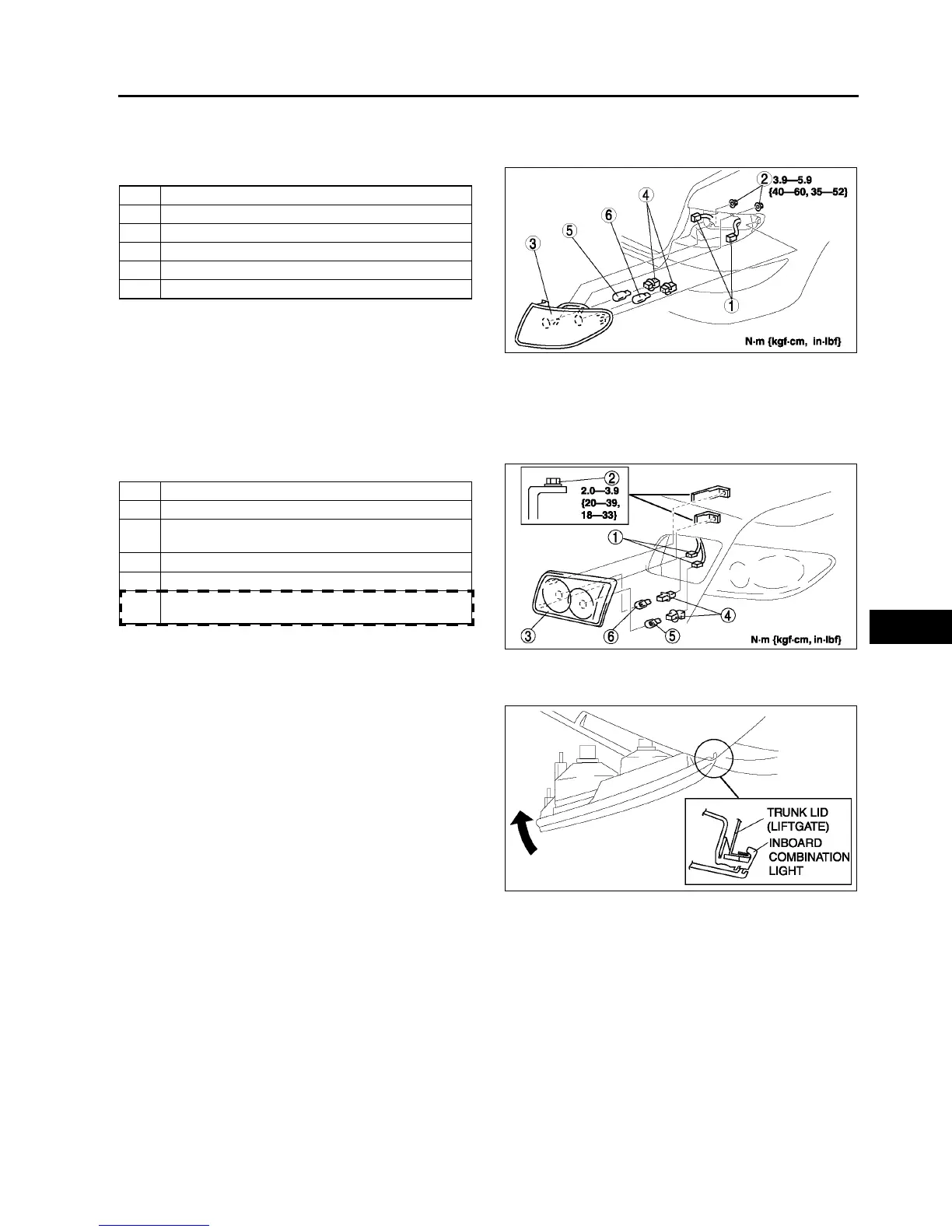

REAR COMBINATION LIGHT REMOVAL/INSTALLATION
A6E811251150W01
1. Disconnect the negative battery cable.
2. Remove the trunk side trim. (See S–92 TRUNK SIDE TRIM REMOVAL/INSTALLATION)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
End Of Sie
INBOARD COMBINATION LIGHT REMOVAL/INSTALLATION
A6E811251380W01
1. Disconnect the negative battery cable.
2. Remove the trunk lid trim (liftgate lower trim). (See S–93 TRUNK LID TRIM REMOVAL/INSTALLATION) (See
S–95 LIFTGATE LOWER TRIM REMOVAL/INSTALLATION)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
Inboard Combination Light Installation Note
1. Insert the inboard combination light into the trunk
lid (liftgate) as shown in the figure, then pivot it
inward and fix in place.
1 Connector
2Bolt
3 Rear combination light
4Socket
5 Rear turn light bulb
6 Brake light/taillight bulb
A6E8112W118
1 Connector
2Nut
3 Inboard combination light (See T–35 Inboard
Combination Light Installation Note)
4Socket
5 Back-up light bulb
6 Rear fog light bulb (L.H.D.: left side only, R.H.D.:
right side only)
A6E8112W119
A6E8112W120
