P–26
CONVENTIONAL BRAKE SYSTEM

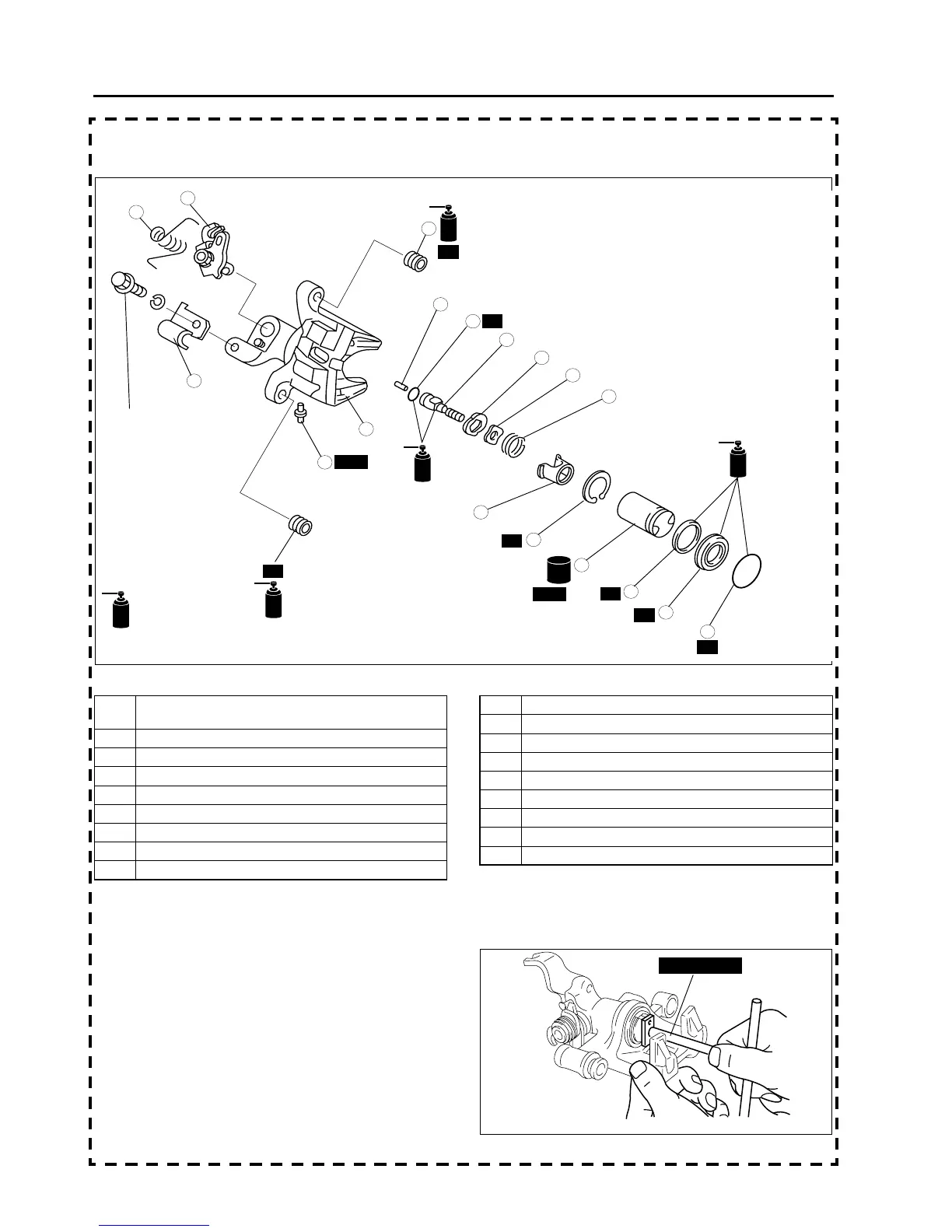

CALIPER (REAR) DISASSEMBLY/ASSEMBLY
A6A691226990W01
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
.
Piston Disassembly/Assembly Note
• Remove/install the piston using the SST.
End Of Sie
A6A6912W303
R
R
R
R
R
R
9
8
7
5
4
3
2
10
6
16
18
17
15
14
13
11
12
5.9—8.8
{61—89, 53—77}
37.3—49.0 N·m
{3.81—4.99 kgf·m,
27.6—36.1 ft·lbf}
N·m {kgf·cm, in·lbf}
BRAKE
BRAKE
FLUID
FLUID
SST
GREASE
GREASE
GREASE
GREASE
GREASE
GREASE
GREASE
GREASE
GREASE
GREASE
RUBBER GREASE
*49 0259 770B
R
1
*
SST
1Piston
(See P–26 Piston Disassembly/Assembly Note)
2 O-ring
3 Piston boot
4Piston seal
5 Snap ring
6Cover
7Spring
8 Washer
9 Stopper
10 Adjuster
11 O-ring
12 Connecting link
13 Bracket
14 Spring
15 Operating lever
16 Breeder screw
17 Boot
18 Caliper body
A6E6912W039
