Mazda 2002 6 - Console Removal;Installation

S–86
DASHBOARD AND CONSOLE
CONSOLE REMOVAL/INSTALLATION
A6E774264270W01
Applied VIN (assumed):
JMZ GG12✻✻✻# 100001—190206
JMZ GG14✻✻✻# 100001—190206
JMZ GY19✻✻✻# 100001—137241
JMZ GY89✻✻✻# 100001—137241

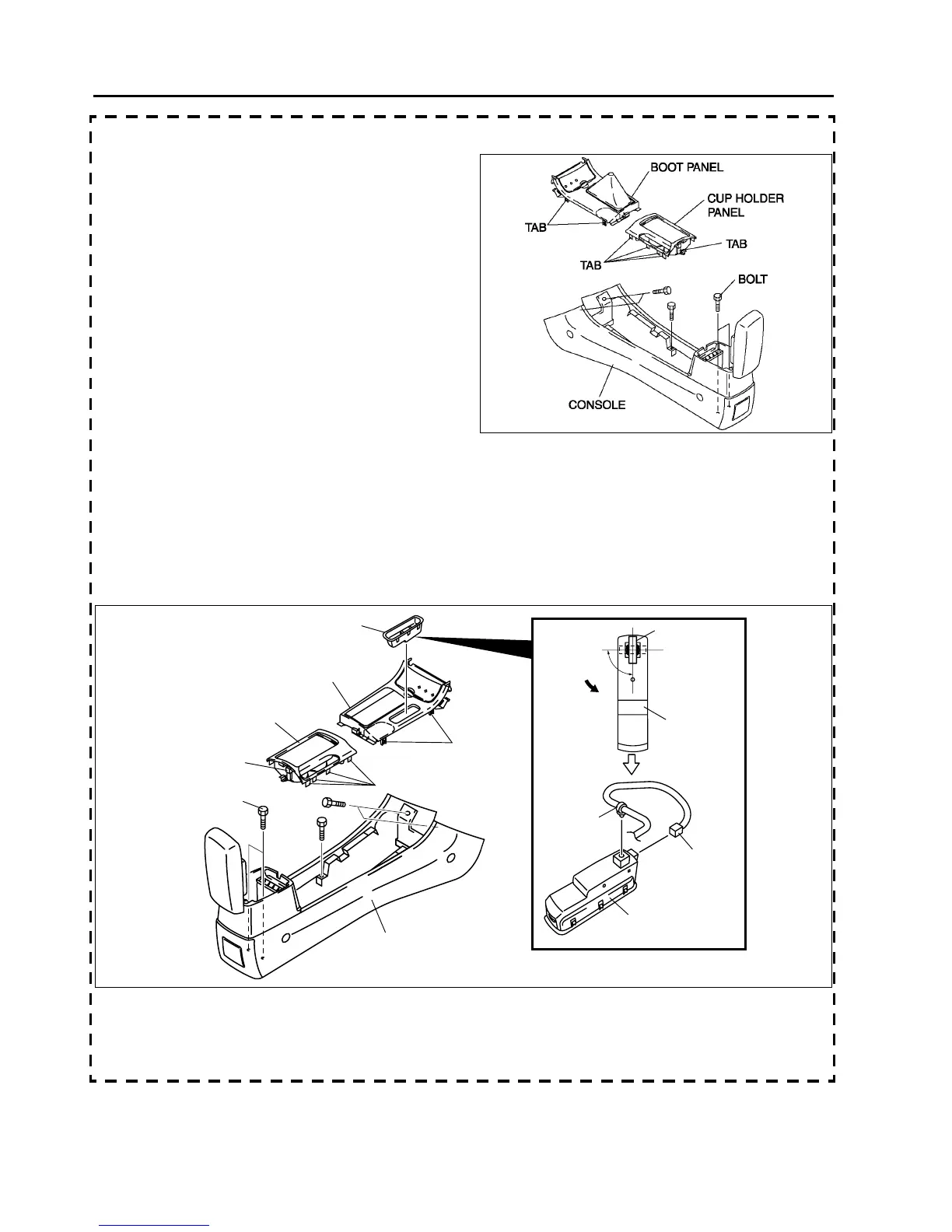

1. For MT vehicle, remove the shift lever knob.
2. Slightly bend back the cradle. (with car-navigation
system)
3. Remove the cup holder panel using a tape-
wrapped screwdriver.
4. Remove the boot panel using a tape-wrapped
screwdriver, disconnect the cigarette lighter
connector, and remove the front ashtray
illumination.
5. Remove the bolts.
6. Install in the reverse order of removal.
Applied VIN (assumed):
JMZ GG12✻✻✻# 190207—
JMZ GG14✻✻✻# 190207—
JMZ GY19✻✻✻# 137242—
JMZ GY89✻✻✻# 137242—
1. For MT vehicle, remove the shift lever knob.
2. Rotate the wiring harness clip installed on the cradle 90° in the direction indicated by the arrow in the figure and
pull it out. (with car-navigation system)
3. Disconnect the cradle connector.
4. Remove the boot panel using a tape-wrapped screwdriver, disconnect the cigarette lighter connector, and
remove the front ashtray illumination.
5. Remove the bolts.
6. Install in the reverse order of removal.
End Of Sie
A6E7742W011
90°
CRADLE
BOOT PANEL
CUP HOLDER PANEL
TA B
BOLT
CONSOLE
TA B
TA B
HARNESS
CLIP
CRADLE
CONNECTOR
CRADLE
HARNESS
CLIP
A6J7742L350
