S–58
OUTSIDE MIRROR

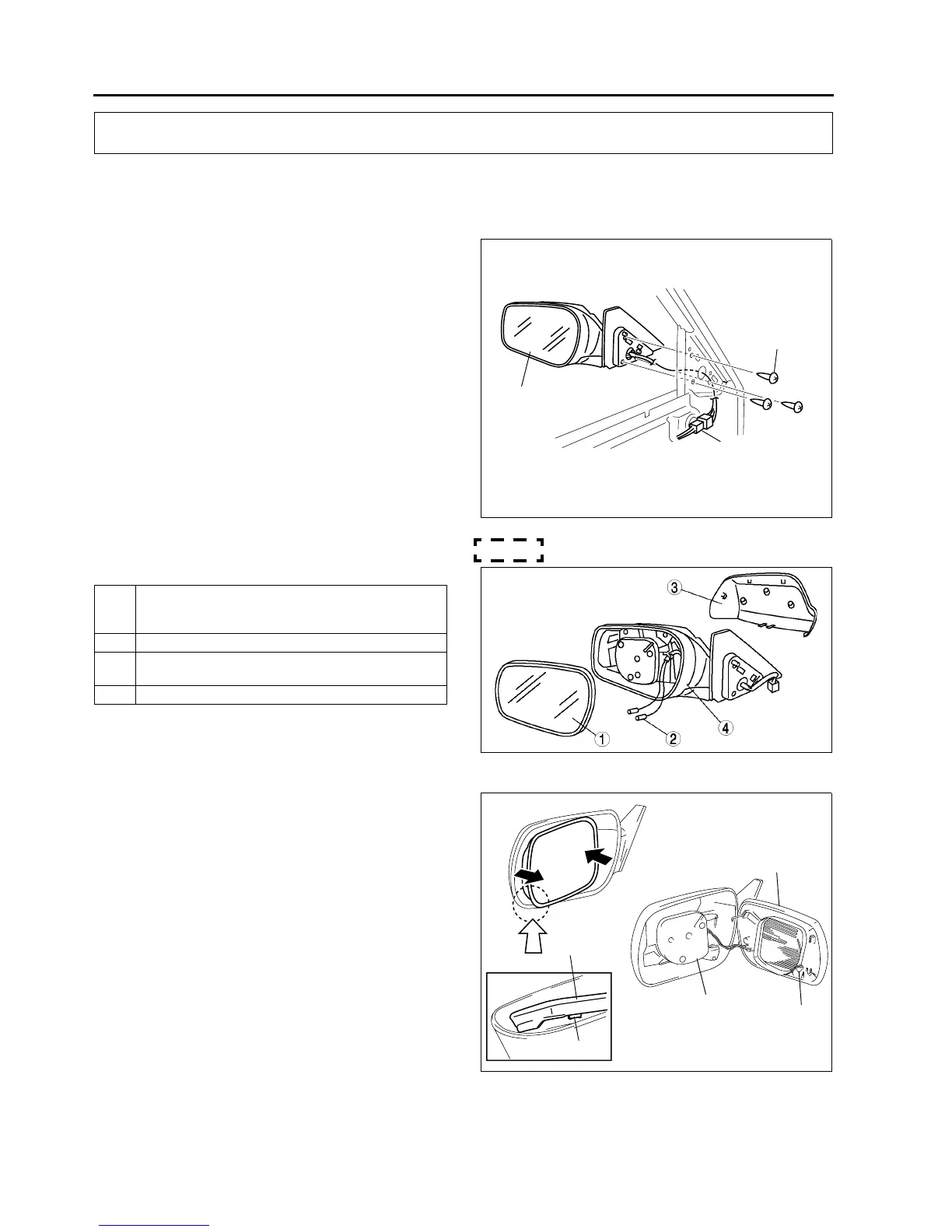

POWER OUTSIDE MIRROR REMOVAL/INSTALLATION
A6E773269110W01
1. Disconnect the negative battery cable.
2. Remove the inner garnish.
3. Remove the front door trim.
4. Disconnect the power outside mirror connector.
5. Remove the screws and the mirror retention clips.
6. Remove the power outside mirror.
7. Install in the reverse order of removal.
End Of Sie
POWER OUTSIDE MIRROR DISASSEMBLY/ASSEMBLY [TYPE A]
A6E773269110W02
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
Outside Mirror Glass Disassembly Note
1. Press area A of the glass so that area B moves
toward you.
2. Insert a screwdriver into the notch and remove
the glass from the mirror base.
OUTSIDE MIRROR
A6E7732W006
POWER OUTSIDE MIRROR
POWER OUTSIDE
MIRROR CONNECTOR
SCREW
1 Outside mirror glass
(See S–58 Outside Mirror Glass Disassembly Note)
(See S–59 Outside Mirror Glass Assembly Note)
2 Connector (with heated outside mirror)
3Cover
(See S–59 Cover Disassembly Note)
4 Outside mirror holder
A6E7732W002
A
B
VIEW
NOTCH
MIRROR
GLASS
MIRROR
BASE
NOTCH
MIRROR
GLASS
A6E7732W003
To Next Page
