OUTSIDE MIRROR
S–59
S

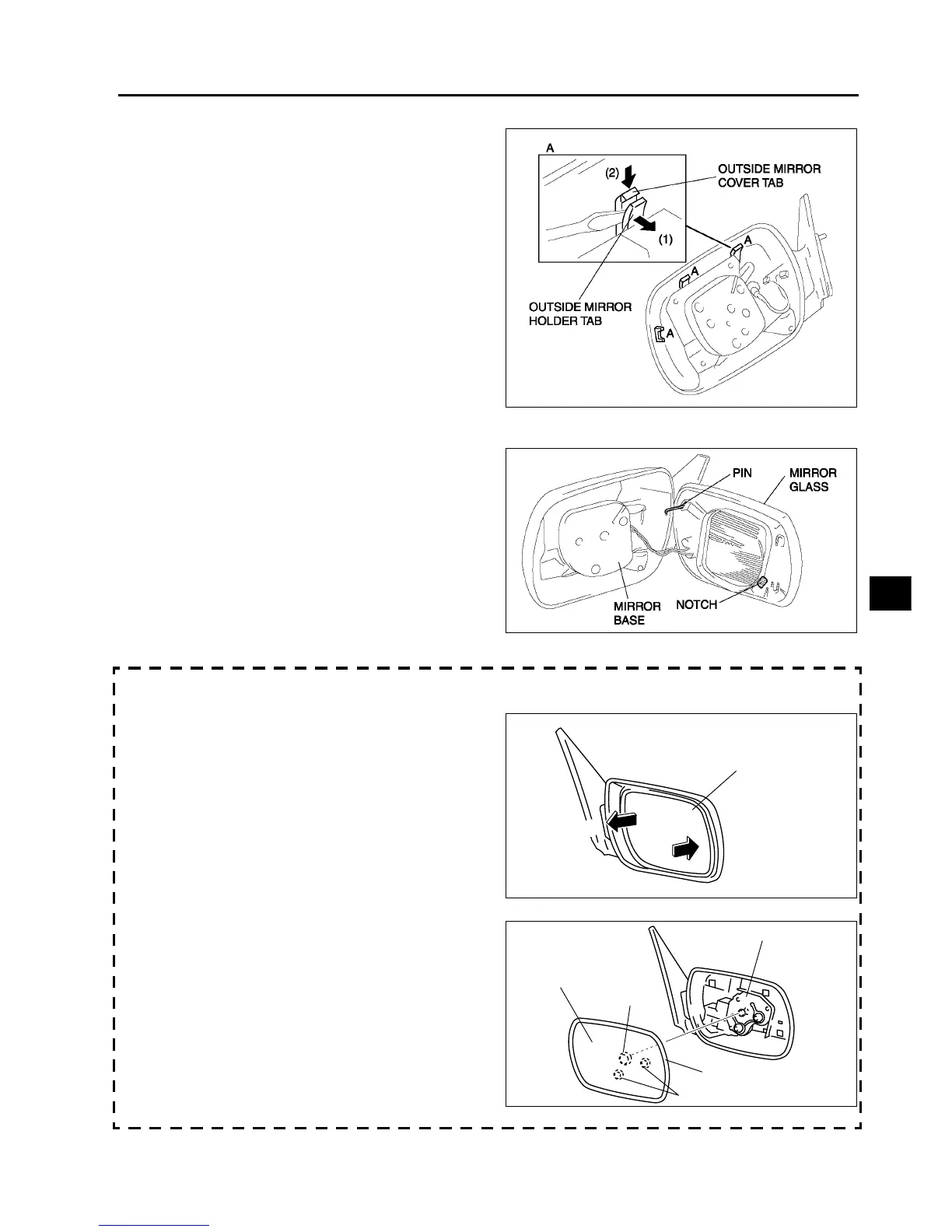

Cover Disassembly Note
1. Pull off the mirror holder tab with a screwdriver
and press the mirror cover tab downward.
Outside Mirror Glass Assembly Note
1. Press the mirror into the base so that the pin does
not dislodge.
End Of Sie
POWER OUTSIDE MIRROR DISASSEMBLY/ASSEMBLY [TYPE B]
A6E773269100W01
Mirror Glass Removal
1. Press area A of the mirror glass so that area B
moves outward.
2. Disengage clip A while lifting up the inside of the
mirror glass holder.
3. Pull the mirror glass holder outward, then
disengage clips B by pulling them out
4. Remove the mirror glass holder and the mirror
glass as a single unit.
A6E7732W004
A6E7732W005
MIRROR GLASS
A
B
ADA7732W003
MIRROR GLASS HOLDER
MIRROR GLASS
FRAME
CLIP B
CLIP A
ADA7732W004
