S–60
OUTSIDE MIRROR

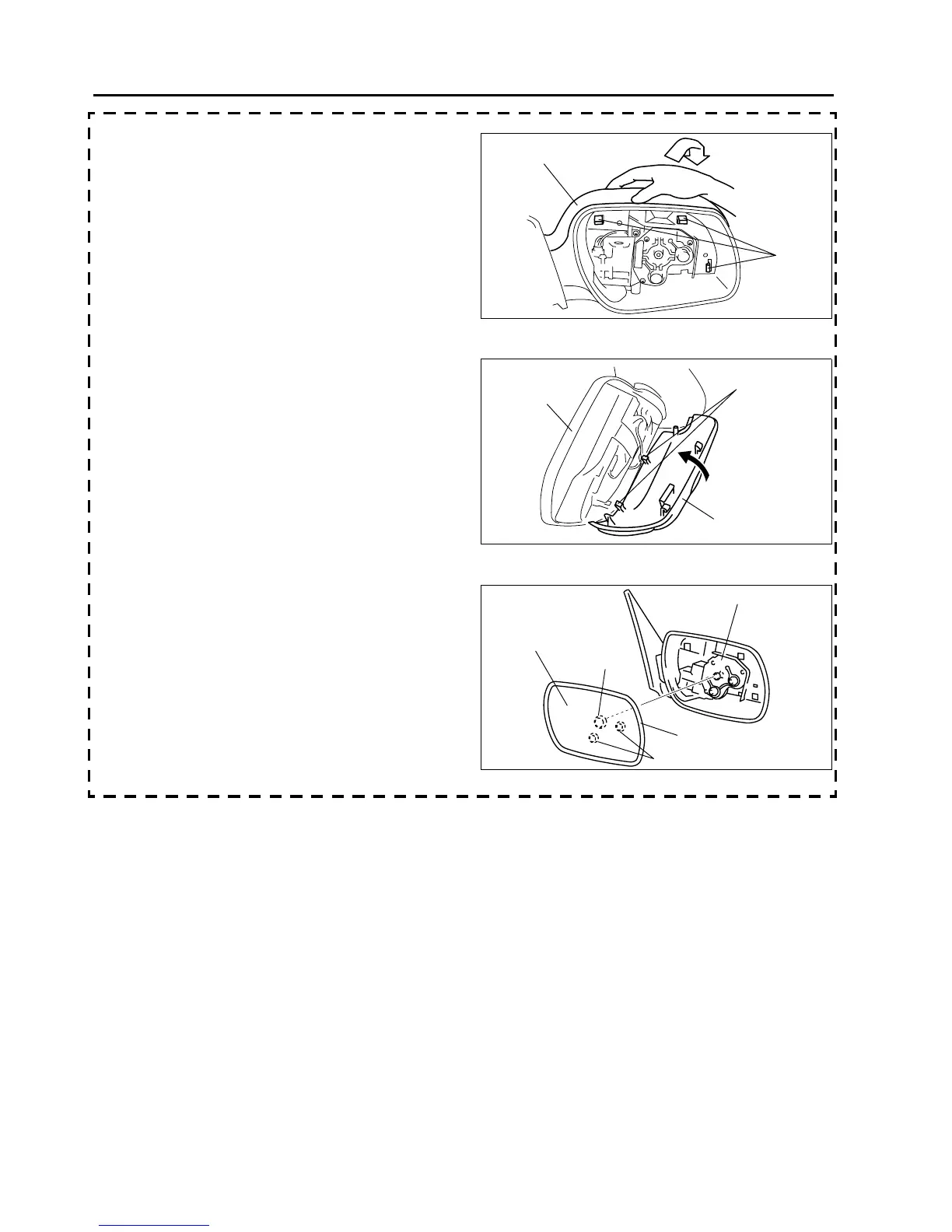

Mirror Garnish Removal
1. Remove the mirror glass from the outside mirror.
(See S–59 Mirror Glass Removal.)
2. Pinch the clip ends using pincers and detach the
clips by pushing them forward.
3. Grasp the upper side of the mirror garnish and
remove it by pulling it in the direction of the arrow.
Mirror Garnish Installation
1. Position the mirror garnish against the mirror
body in the direction of the arrow shown in the
figure, and insert the mirror garnish clips (6
locations) into the mirror body.
2. Install the mirror garnish so that there are no gaps
around the component.
Mirror Glass Installation
1. Press the mirror glass at clip A and engage it to
the frame.
2. Engage clips B while pushing the mirror glass to
the frame.
End Of Sie
CLIP
MIRROR GARNISH
ADA912ZW5SI1
CLIP
MIRROR BODY
MIRROR GARNISH
ADA912ZW5SI2
MIRROR GLASS HOLDER
MIRROR GLASS
FRAME
CLIP B
CLIP A
ADA7732W004
