FAN MOTOR
E–9
E
COOLING FAN REMOVAL/INSTALLATION
A6E362215025W01
1. Disconnect the negative battery cable.
2. Remove the shroud panel. (See S–119 SHROUD PANEL REMOVAL/INSTALLATION.)
3. Remove the A/C pipe stay.
4. Remove the ATX pipe stay (ATX).
5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
7.
End Of Sie

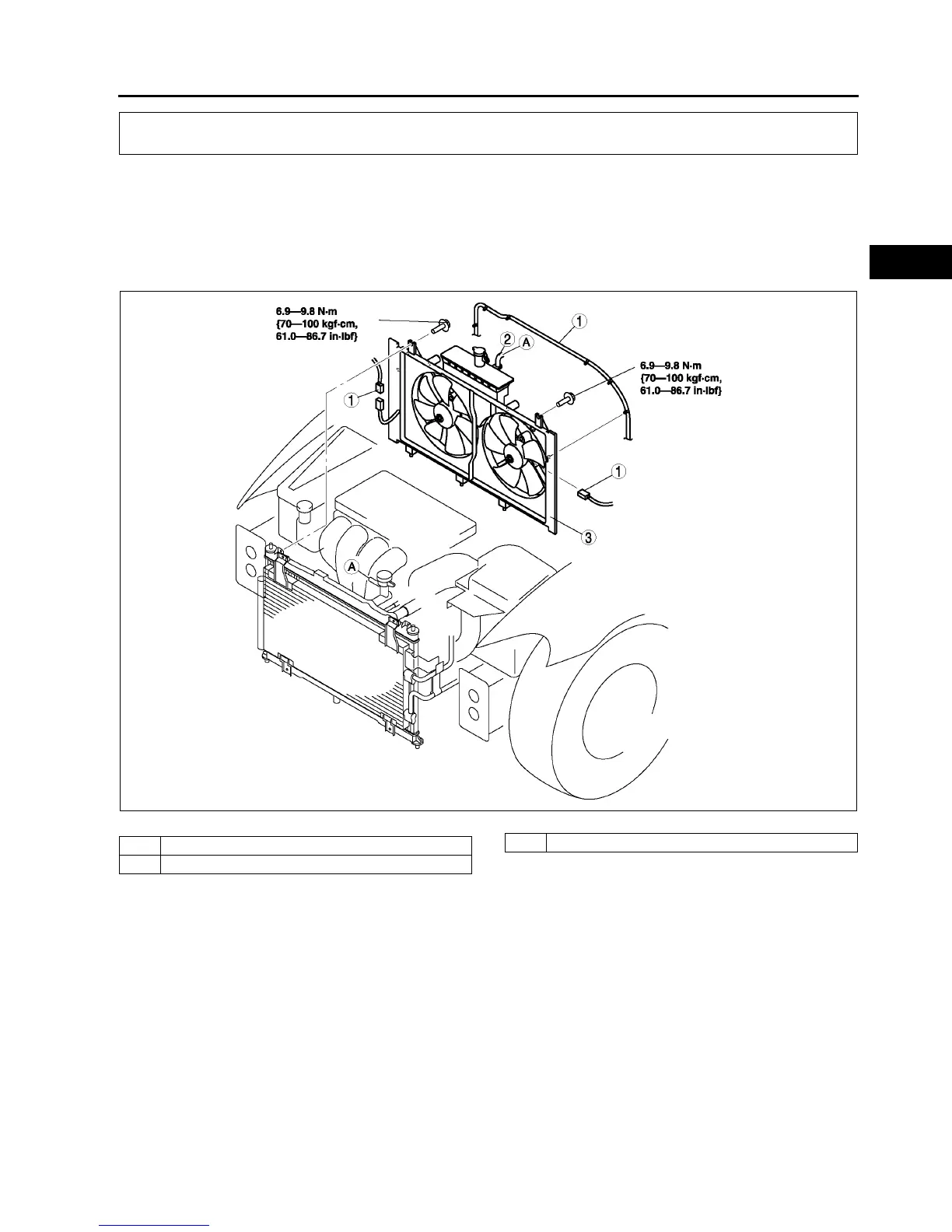

FAN MOTOR
AME3621W001
1 Cooling fan harness, connector
2 Coolant reservoir hose
3 Cooling fan assembly
To Next Page
