TRUNK LID
S–39
S

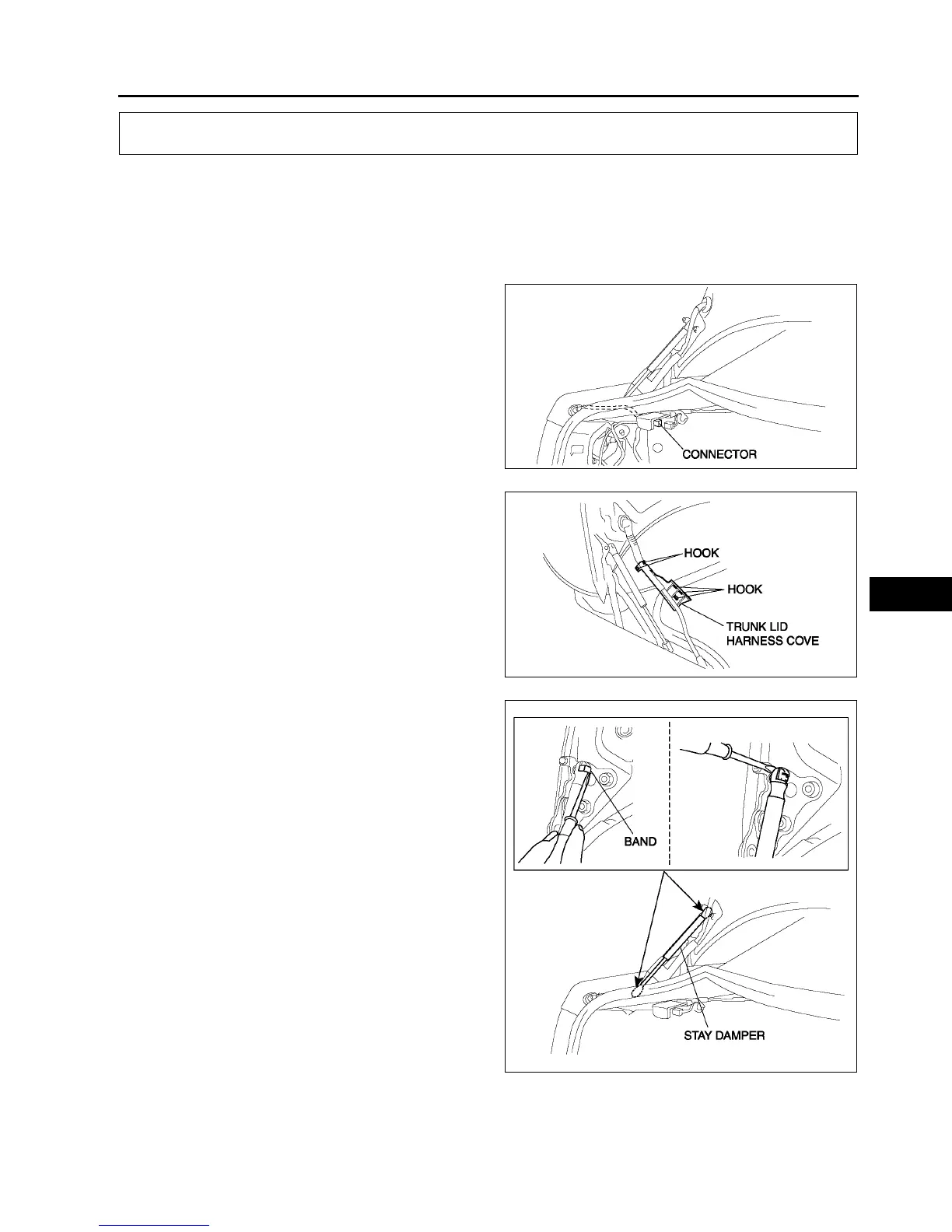

TRUNK LID REMOVAL/INSTALLATION
A6E772052610W01
Warning
• Removing the stay damper without supporting the trunk lid can be dangerous. The trunk lid may
fall and injure you. Open the trunk lid fully and support it before removing the stay damper.
1. Disconnect the negative battery cable.
2. Disconnect the trunk lid harness connector, pull
the trunk lid harness out from the cabin.
3. Disconnect the hooks, which secure the trunk lid
harness to the trunk lid hinge.
4. Pry away the stay damper's band with a
screwdriver.
5. Pry out the connecting part of the stay damper
and the hinge with a screwdriver to disconnect
them. Then remove the stay damper.
TRUNK LID
A6E7720W001
A6E7720W004
A6E7720W002
To Next Page
