PARKING BRAKE SYSTEM
P–26–1
P
P–26 BRAKING SYSTEM
PARKING BRAKE (LEVER TYPE) INSPECTION
A6E691444000W01
1. Pull the parking brake lever a few times.
2. Depress the brake pedal a few times.
3. Inspect the parking brake stroke by pulling the parking brake lever with a force of 98 N {10 kgf, 22 lbf}.
Stroke
3—6 notches
End Of Sie
PARKING BRAKE (LEVER TYPE) ADJUSTMENT
A6E691444000W02
1. Start the engine and depress the brake pedal several times.
2. Stop the engine.
3. Pull the underside of the rear ashtray case in the
direction shown by the arrow and remove clips A
from the console.
4. Disengage the hooks from the console and
remove the rear ashtray case.
5. Verify the position of the adjusting nut while
looking in from above the console (A) as shown,
and set the socket on the nut.
6. Turn the adjusting nut to adjust the parking brake
lever.
7. After adjustment, inspect the following points:
(1) Turn the ignition switch to ON, pull the parking
brake lever one notch, and verify that the
parking brake warning light illuminates.
(2) Verify that the rear brakes do not drag.
End Of Sie

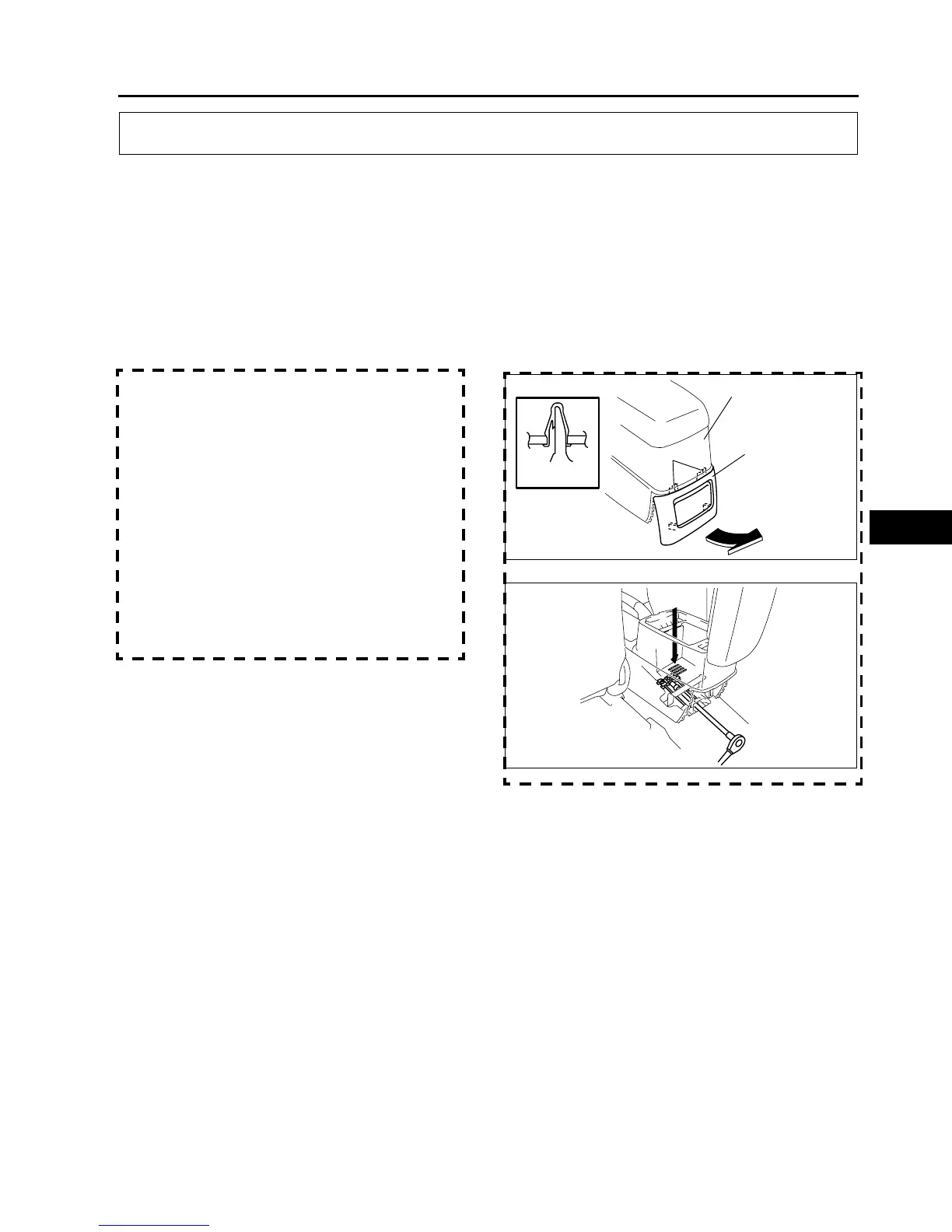

PARKING BRAKE SYSTEM
A6E6914W011
CLIP A
TA B
CONSOLE
REAR ASHTRAY CASE
A
A
A6E6914W012
A
