Mazda 2002 6 - Seat Back Striker Removal;Installation; Power Seat Switch Inspection

SEAT
S–115
S

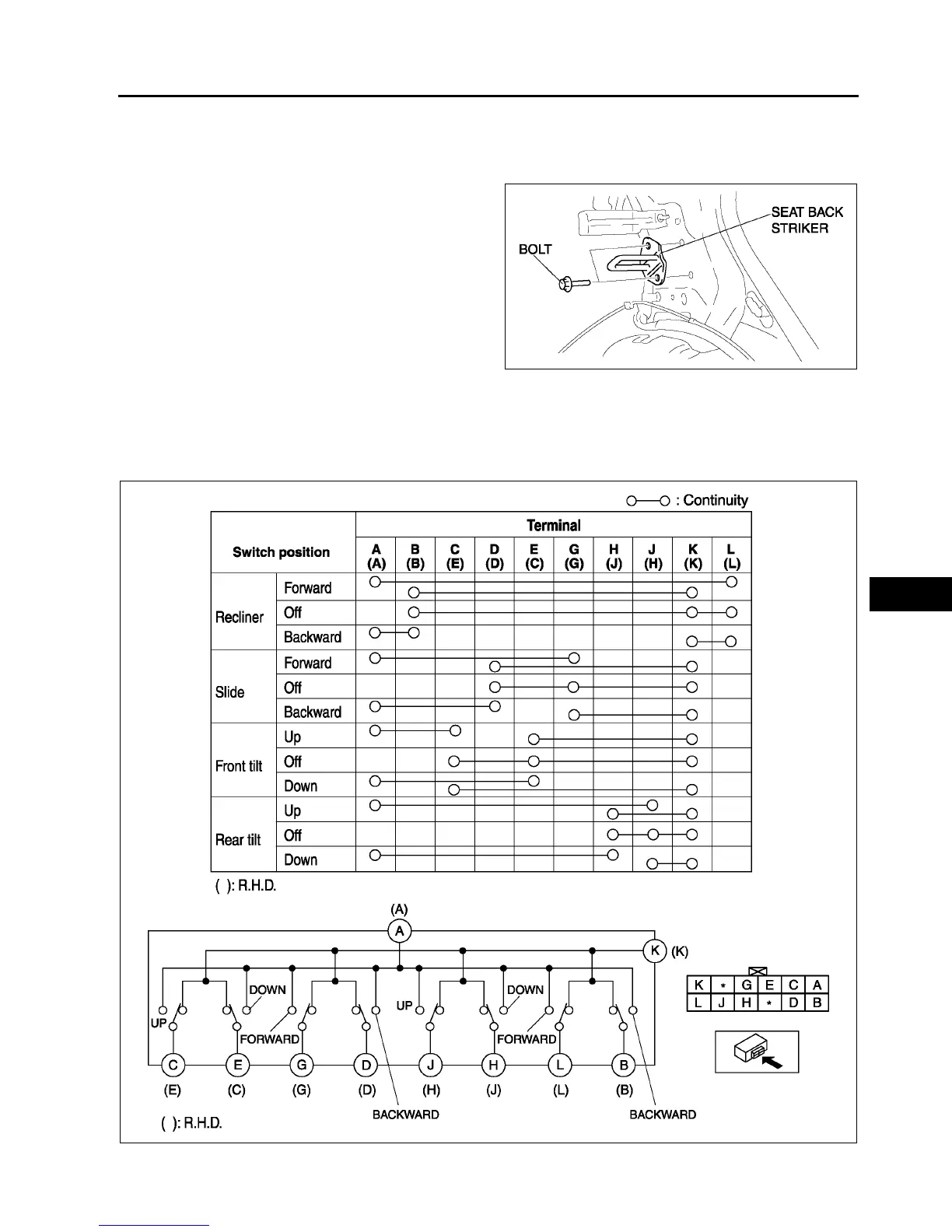

SEAT BACK STRIKER REMOVAL/INSTALLATION
A6E775262361W01
1. Remove the tire house trim.
2. Remove the trunk side upper trim and trunk side lower trim.
3. Remove the bolts.
4. Remove the seat back striker.
5. Install in the reverse order of removal.
End Of Sie
POWER SEAT SWITCH INSPECTION
A6E775257155W01
1. Disconnect the power seat switch connector.
2. Disconnect the rear tilt motor connector.
3. Inspect for continuity between the power seat switch connector terminals using an ohmmeter.
• If not as specified, replace the power seat switch.
A6E7752W016
A6E7752W029
