EXTERIOR LIGHTING SYSTEM
T–37
T

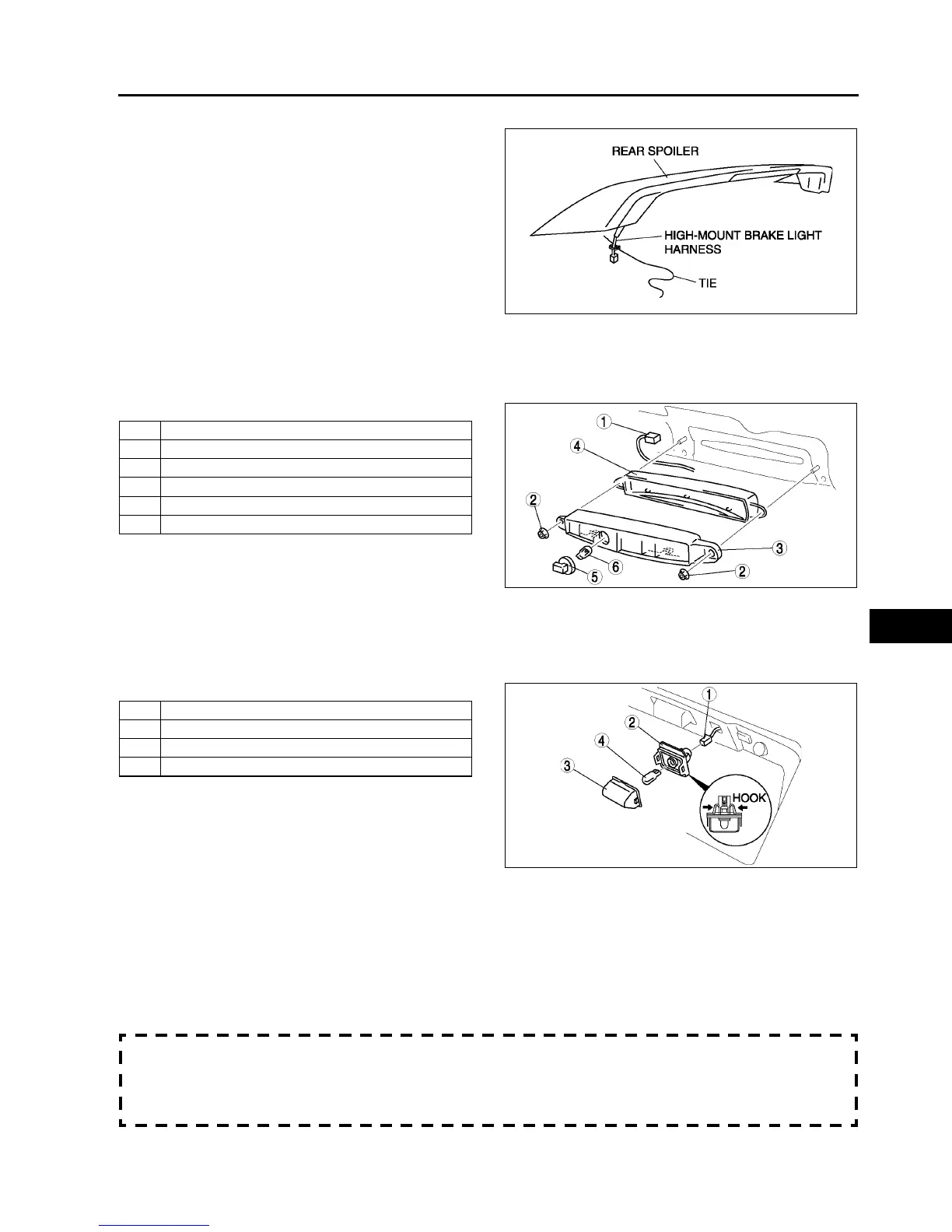

High-mount brake light removal note
1. Tie a string to the end of the connector of the
high-mount brake light beforehand so that the
connector can be passed easily through the rear
spoiler during installation.
5HB
1. Disconnect the negative battery cable.
2. Remove the liftgate lower trim. (See S–95 LIFTGATE LOWER TRIM REMOVAL/INSTALLATION)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
End Of Sie
LICENSE PLATE LIGHT REMOVAL/INSTALLATION
A6E811251270W01
1. Disconnect the negative battery cable.
2. Remove the rear finisher. (See S–54 REAR FINISHER REMOVAL/INSTALLATION)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
End Of Sie
COMBINATION SWITCH REMOVAL/INSTALLATION
A6E811266120W01
1. Disconnect the negative battery cable.
2. Remove the driver-side air bag module. (See T–120 DRIVER-SIDE AIR BAG MODULE REMOVAL/
INSTALLATION.)
3. Remove the steering wheel. (See N–7 STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
4. Remove the column cover. (See S–84 COLUMN COVER REMOVAL/INSTALLATION)
5. Remove the clock spring. (without DSC) (See T–125 CLOCK SPRING REMOVAL/INSTALLATION.)
Caution
• For vehicles with DSC, the clock spring is generally not to be removed from the combination
switch as may result in a malfunction of the steering angle sensor. However, remove it only when
replacing the clock spring as a single unit by referring to CLOCK SPRING REMOVAL/
INSTALLATION. (See T–125 CLOCK SPRING REMOVAL/INSTALLATION.)
A6E8112W116
1 Connector
2Nut
3 High-mount brake light
4Lens
5 Socket
6 High-mount brake light bulb
A6E8112W142
1 Connector
2 License plate light
3Lens
4 License plate light bulb
A6E8112W108
To Next Page
