REAR SUSPENSION
R–29
R

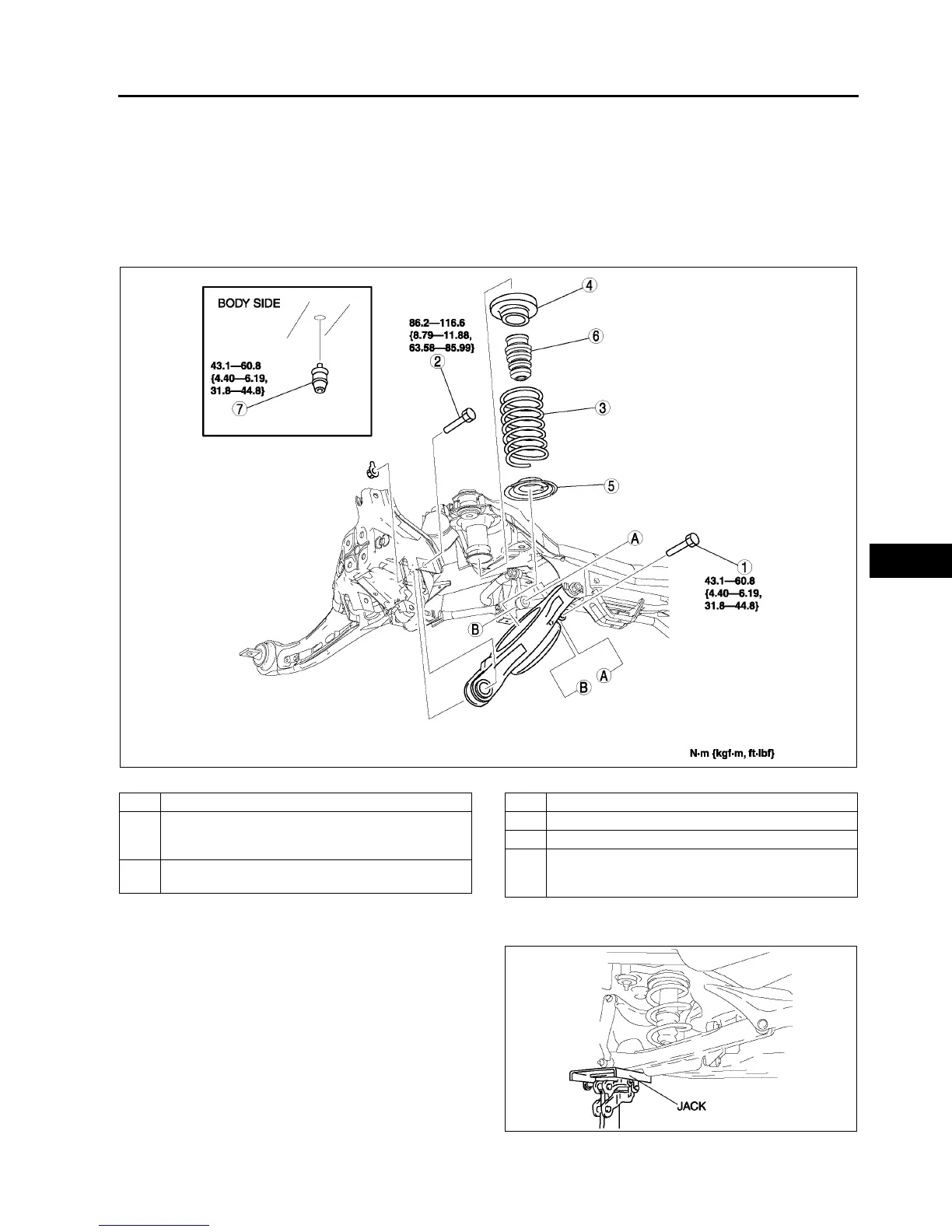

REAR COIL SPRING REMOVAL/INSTALLATION
A6E741628011W01
1. Remove the rear auto leveling sensor.
(See T–32 REAR AUTO LEVELING SENSOR REMOVAL/INSTALLATION.)
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. Adjust the headlight zeroset.
(See T–31 HEADLIGHT ZEROSET.)
5. Inspect the rear wheel alignment.
(See R–6 REAR WHEEL ALIGNMENT.)
.
Bolt (Rear Lower Arm Outer Side) Removal Note
1. Support the lower arm with a jack.
2. Loosen the inner bolt of the lower arm.
3. Remove the outer bolt of the lower arm.
A6E7416W022
1 Bolt (stabilizer control link lower side)
2 Bolt (rear lower arm outer side)
(See R–29 Bolt (Rear Lower Arm Outer Side)
Removal Note)
3 Rear coil spring
(See R–30 Rear Coil Spring Installation Note)
4 Upper spring seat rubber
5 Lower spring seat
6 Bound stopper (spring side)
7 Bound stopper (body side)
(See R–30 Bound Stopper (Body Side) Removal/
Installation Note)
A6E7416W019
To Next Page
