AUTOMATIC TRANSAXLE
K–43
K

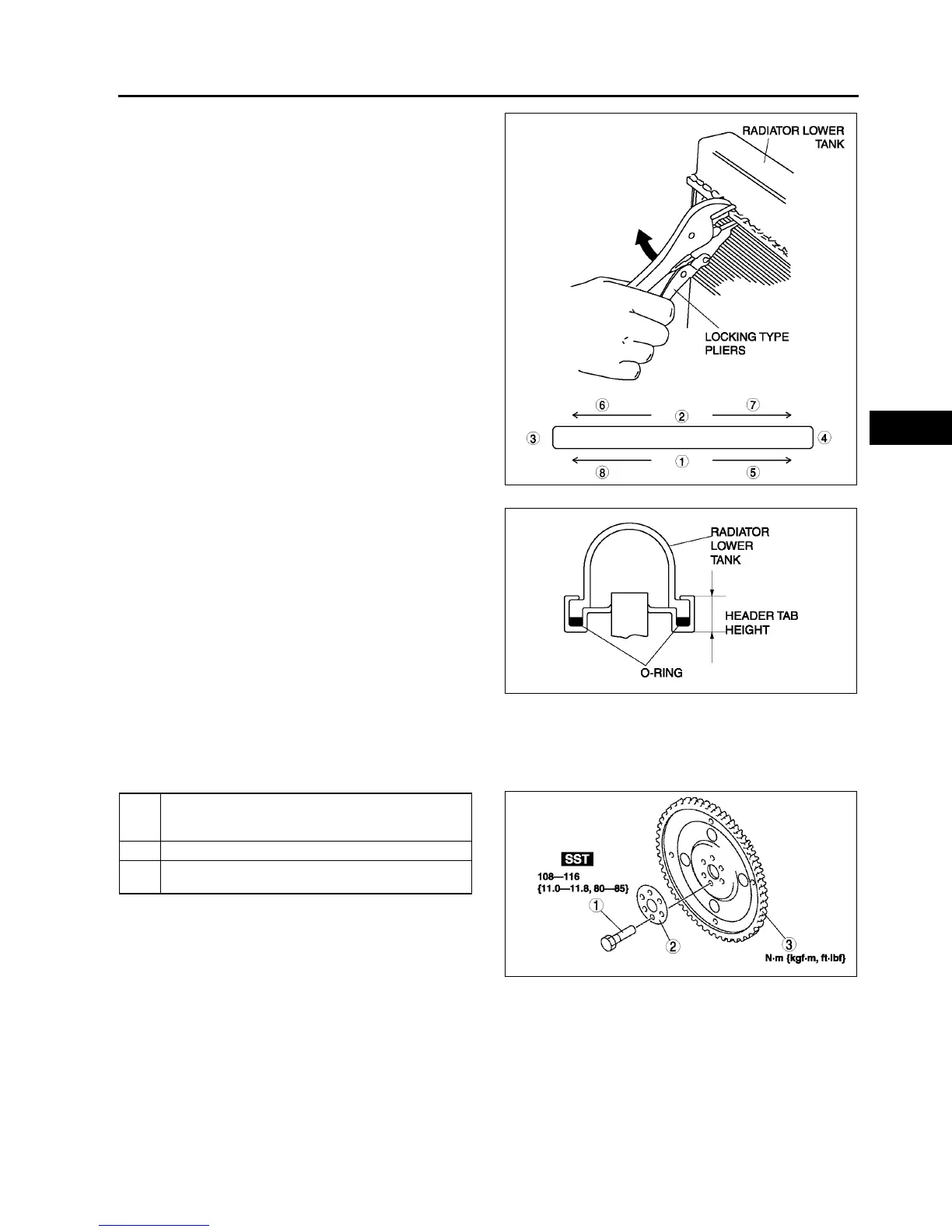

4. Squeeze the header tabs down in order as shown
against the lip of radiator outer tank base with
locking-type pliers while rotating the pliers toward
the tank.
5. Verify the height of the header tabs is same as
the height before removal.
6. Inspect for leakage from radiator. (See E–4
ENGINE COOLANT LEAKAGE INSPECTION.)
End Of Sie
DRIVE PLATE REMOVAL/INSTALLATION
A6E561419020W01
1. Remove the transaxle.(See K–29 AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION.)
2. Remove in the order indicated in the figure.
3. Install in the reverse order of removal.
.
A6E5614W076
A6E5614W073
1 Drive plate mounting bolts
(See K–44 Drive Plate Mounting Bolts Removal
Note.)
2 Adapter
3 Drive plate
(See K–44 Drive Plate Installation Note.)
A6E5614W078
To Next Page
