P–42
DYNAMIC STABILITY CONTROL

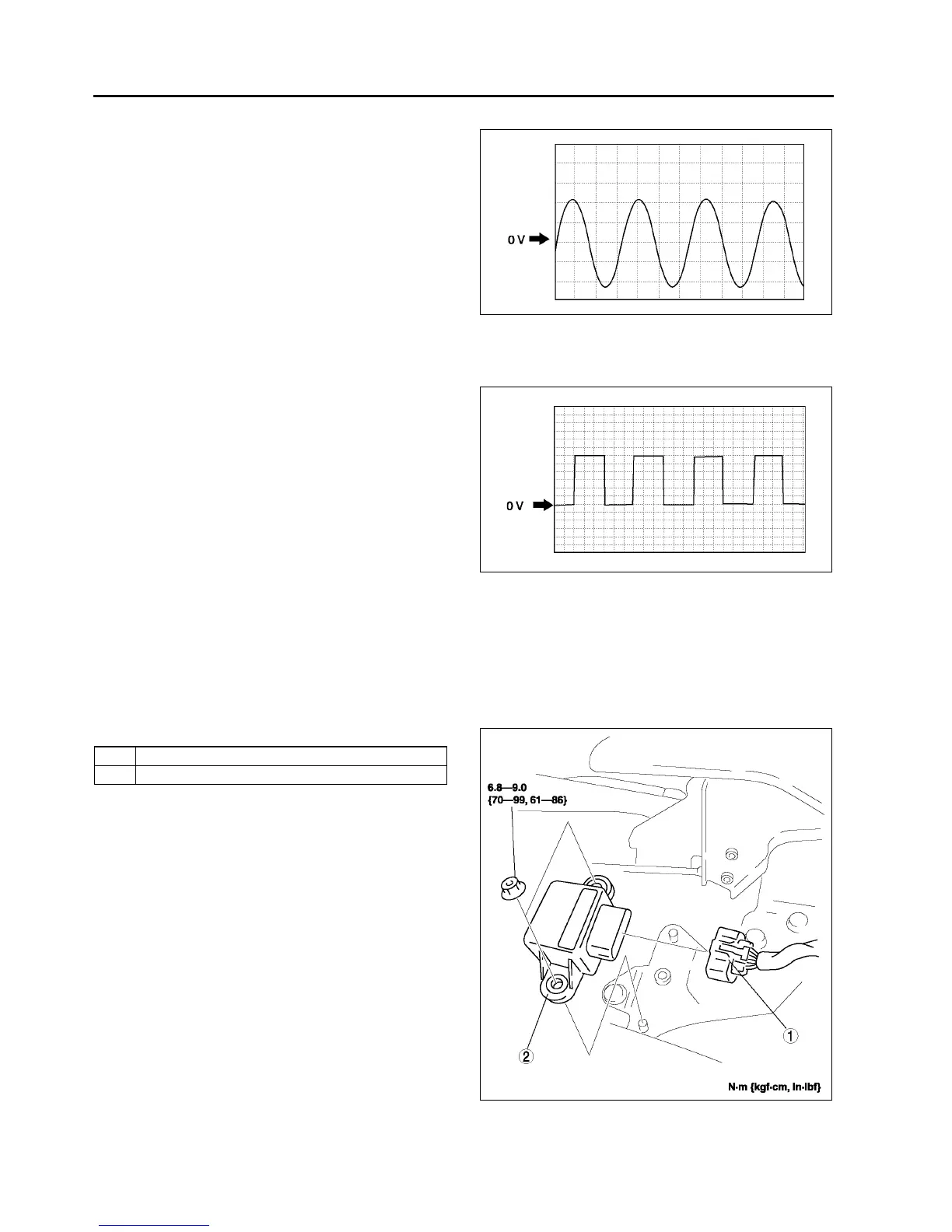

Wheel speed
• DSC HU/CM terminal:
RF : M ( + ) — I ( - )
RR : K ( + ) — H ( - )
LF : F ( + ) — J ( - )
LR : Q ( + ) — N ( - )
• Oscilloscope setting:
1 V/DIV (Y), 2 ms/DIV (X), AC range
• Vehicle condition: Driving 30 km/h (18.6 mph)
Note
• As vehicle speed increases, period of wave
shortens.
• If there is malfunctioning in the sensor rotor,
wave profile warps.
Vehicle speed output
• DSC HU/CM terminal: AE ( + ) — A( - )
• Oscilloscope setting:
1 V/DIV (Y), 5 ms/DIV (X), DC range
• Vehicle condition: Driving 30 km/h (18.6 mph)
Note
• As vehicle speed increases, period of wave
shortens.
End Of Sie
COMBINE SENSOR REMOVAL/INSTALLATION
A6E692067650W05
Caution
• Be careful and do not allow the combine sensor to fall. If by chance it is subjected to strong
impact, replace it.
1. Remove the center console.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. After installation, perform the combine sensor
initialization procedure. (See P–44 COMBINE
SENSOR INITIALIZATION PROCEDURE.)
End Of Sie
A6E6921W013
A6E6921W012
1 Combine sensor connector
2 Combine sensor
A6E6920W004
