G–6
CHARGING SYSTEM
GENERATOR REMOVAL/INSTALLATION
A6E471018300W01
Warning
• When the battery cables are connected, touching the vehicle body with generator terminal B will
generate sparks. This can cause personal injury, fire, and damage to the electrical components.
Always disconnect the battery negative cables before performing the following operation.
Caution
• The generator can be damaged by the heat from the exhaust manifold. Make sure the generator
duct and the generator heat insulator are installed securely.
1. Disconnect the negative battery cable.
2. Remove the under cover.
3. Disconnect the joint shaft from the drive shaft (RH). (R.H.D.) (See M–17 DRIVE SHAFT REMOVAL/
INSTALLATION.)
4. Remove the drive belt. (See B–3 DRIVE BELT REPLACEMENT.)
5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
Generator Removal Note
1. Remove the generator from above. (L.H.D.)
2. Remove the generator from below. (R.H.D.)
End Of Sie

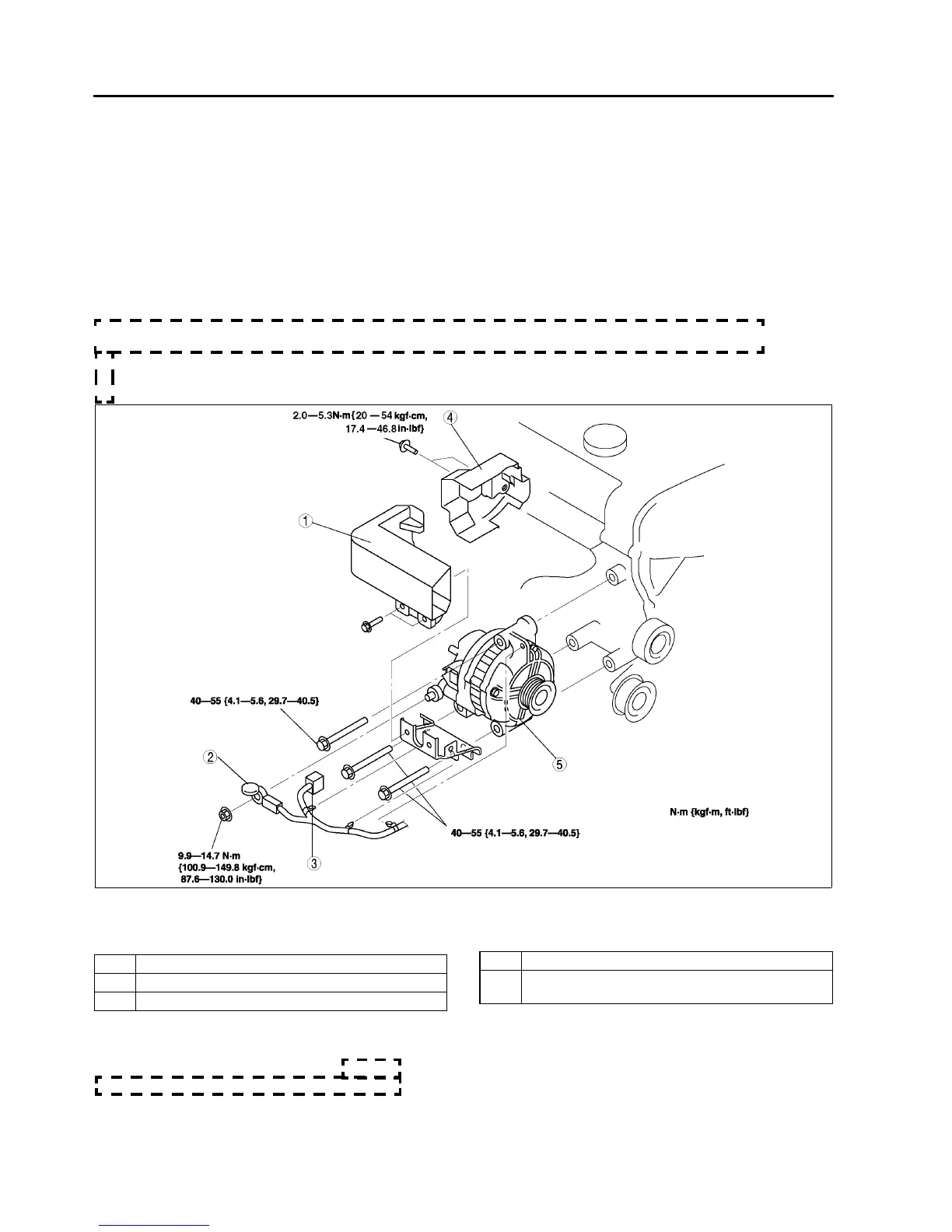

AME4710W002
1 Generator duct
2 B terminal cable
3 Generator connector
4 Generator heat insulator
5 Generator
(See G–6 Generator Removal Note)
To Next Page
