STARTER REMOVAL/INSTALLATION
A6E471418400W01
Warning
• When the battery cables are connected, touching the vehicle body with starter terminal B will
generate sparks. This can cause personal injury, fire, and damage to the electrical components.
Always disconnect the battery negative cables before performing the following operation.
1. Disconnect the negative battery cable.
2. Remove the under cover.
3. Remove the air cleaner assembly.(See F–10 INTAKE-AIR SYSTEM REMOVAL/INSTALLATION.)
4. Remove the clutch release cylinger.(MTX) (See H–9 CLUTCH RELEASE CYLINDER REMOVAL/
INSTALLATION.)
5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
End Of Sie
STARTING SYSTEM

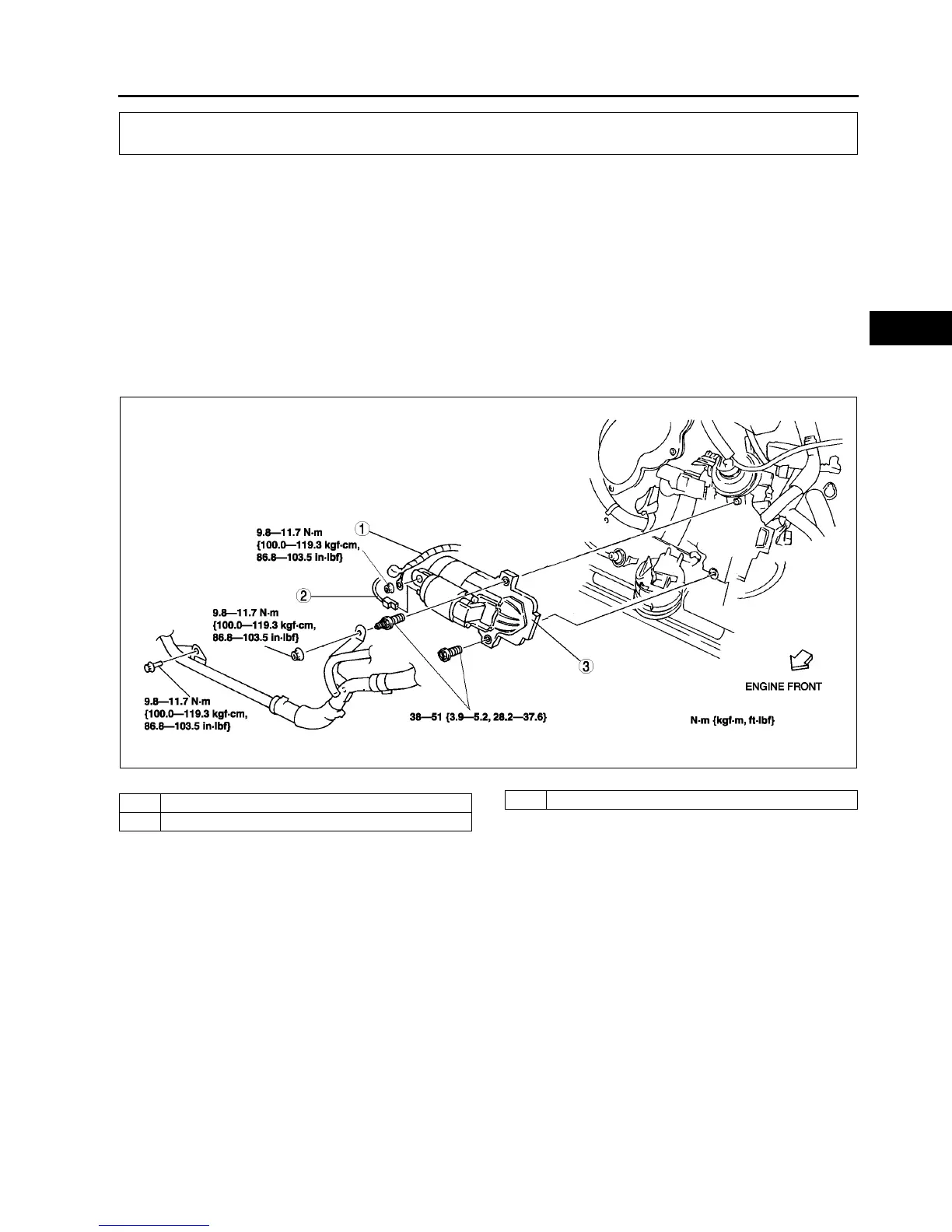

AME4714W001
1 Terminal B wire
2 Terminal S wire
3Starter
