Mazda 2002 6 - Dashboard Disassembly;Assembly; Side Panel Removal;Installation

DASHBOARD AND CONSOLE
S–83
S
DASHBOARD DISASSEMBLY/ASSEMBLY
A6E774255100W02
1. Remove the passenger-side air bag module.
2. Remove the ventilator grilles.
3. Remove the audio unit.
4. Remove the climate control unit.
5. Disassemble in the order indicated in the table.
6. Assemble in the reverse order of disassembly.
.
End Of Sie
SIDE PANEL REMOVAL/INSTALLATION
A6E774264960W01
1. Disengage clips using a tape-wrapped flathead
screwdriver.
2. Pull the side panel toward you, then disengage
tabs from dashboard, and remove the side panel.
3. Install in the reverse order of removal.
End Of Sie

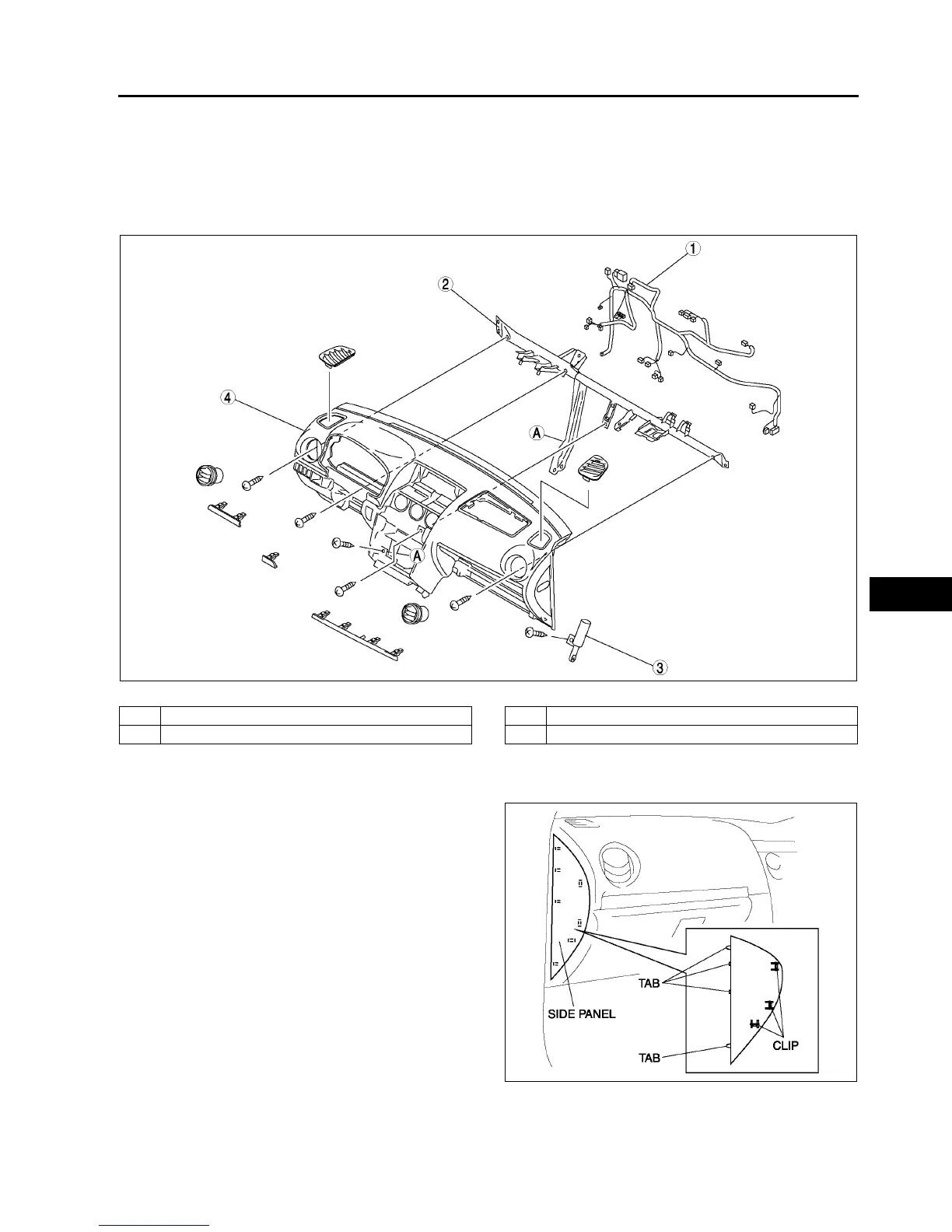

A6E7742W003
1 Dashboard harness
2 Dashboard member
3 Damper
4 Dashboard
A6E7742W010
