LOCATION INDEX
CLUTCH LOCATION INDEX
A6E490001036W01
.
LOCATION INDEX
A6E4900W001

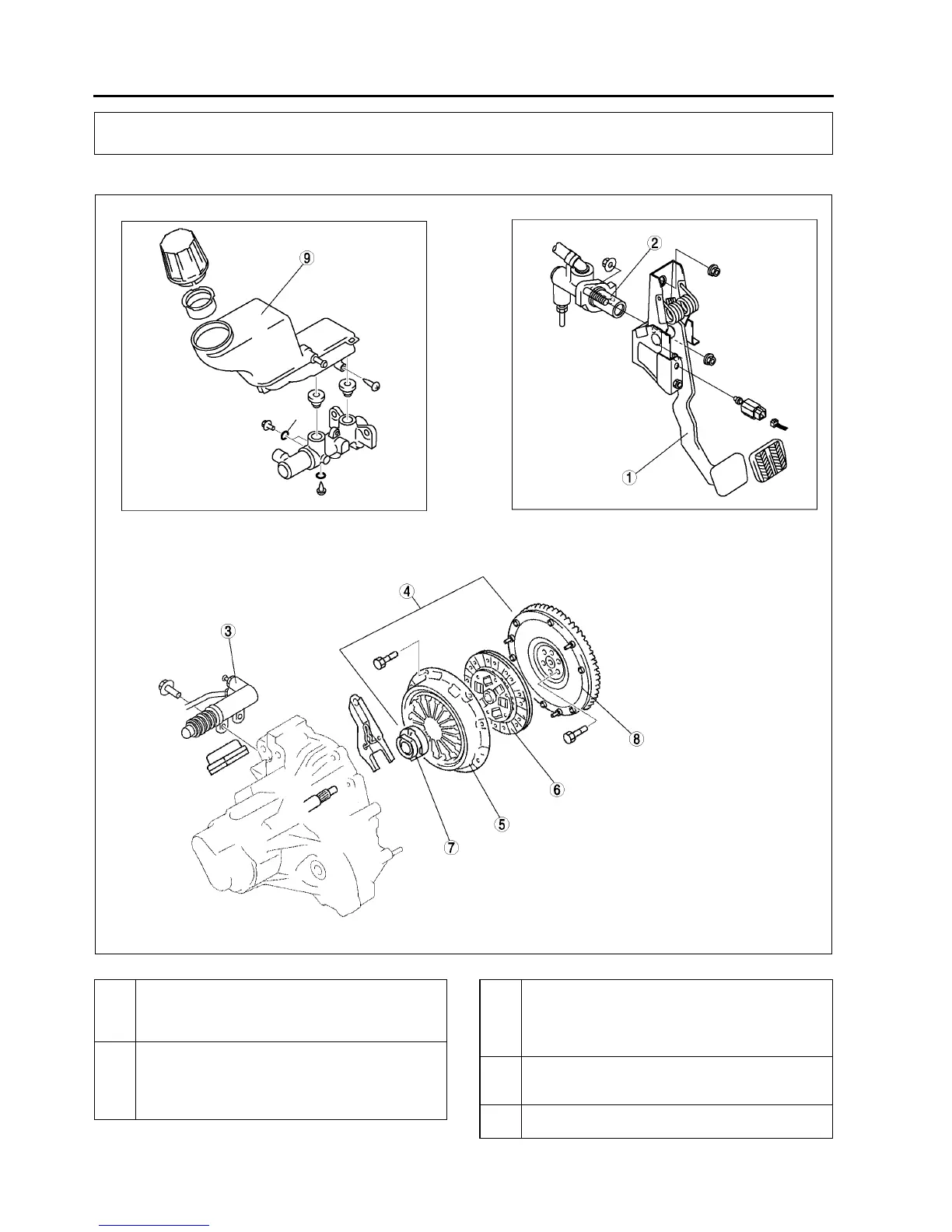

1 Clutch pedal
(See H–5 CLUTCH PEDAL ADJUSTMENT)
(See H–6 CLUTCH PEDAL REMOVAL/
INSTALLATION)
2 Clutch master cylinder
(See H–7 CLUTCH MASTER CYLINDER
REMOVAL/INSTALLATION)
(See H–8 CLUTCH MASTER CYLINDER
DISASSEMBLY/ASSEMBLY)
3 Clutch release cylinder
(See H–9 CLUTCH RELEASE CYLINDER
REMOVAL/INSTALLATION)
(See H–10 CLUTCH RELEASE CYLINDER
DISASSEMBLY/ASSEMBLY)
4 Clutch unit
(See H–11 CLUTCH UNIT REMOVAL/
INSTALLATION)
5 Clutch cover
(See H–13 CLUTCH COVER INSPECTION)
