F–10
INTAKE-AIR SYSTEM

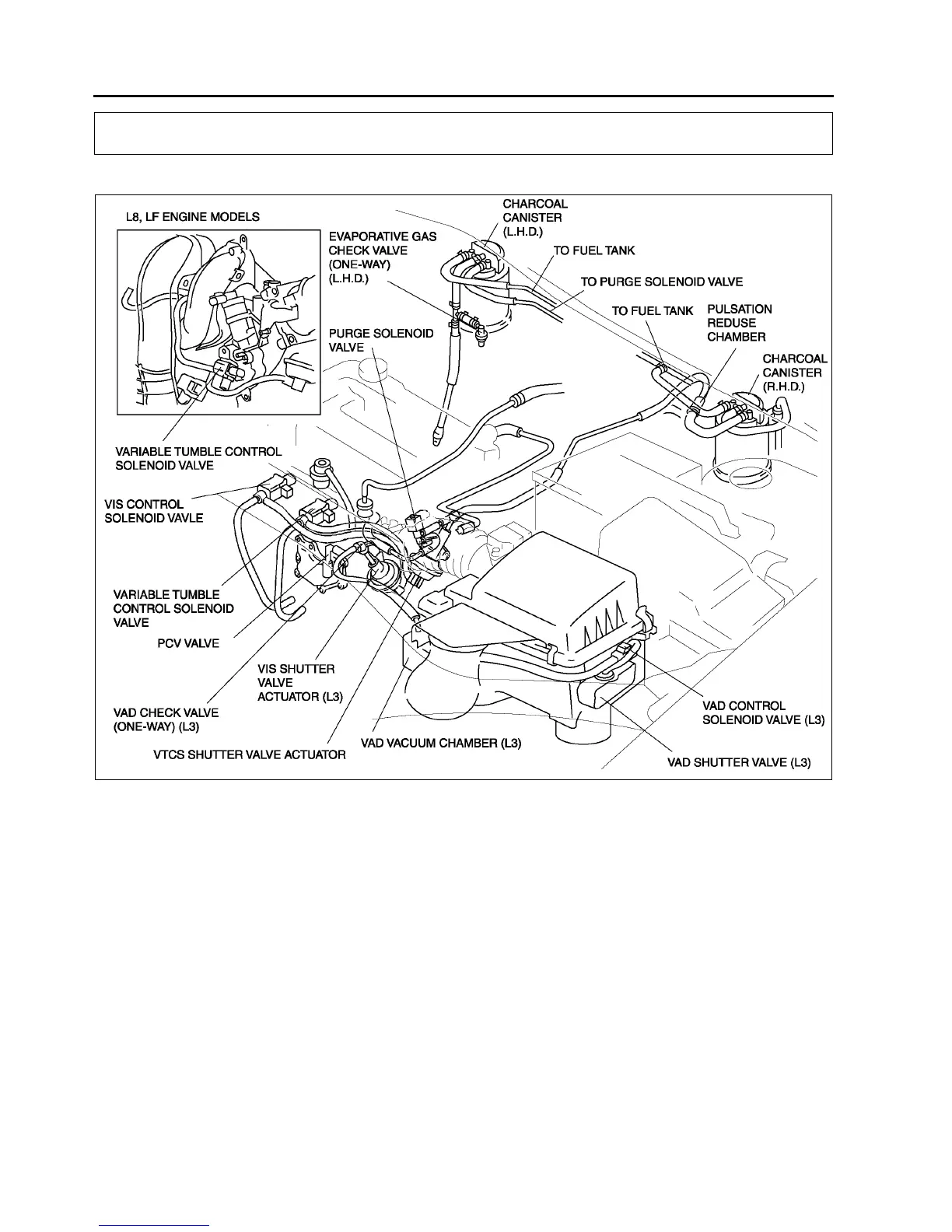

VACUUM HOSE ROUTING DIAGRAM
A6E391020030W01
End Of Sie
INTAKE-AIR SYSTEM REMOVAL/INSTALLATION
A6E391013000W01
Warning
• When the engine and intake-air system are hot, they can badly burn. Turn off the engine and wait
until they are cool before removing the intake-air system.
• Fuel vapor is hazardous. It can easily ignite, causing serious injury and damage. Always keep
sparks and flames away from fuel.
• Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death and
damage. Fuel can also irritate skin and eyes. To prevent this, always complete the “Fuel Line
Safety Procedure”. (See F–17 BEFORE REPAIR PROCEDURE.)
1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
INTAKE-AIR SYSTEM
A6E3910W034
To Next Page
