S–118
SEAT

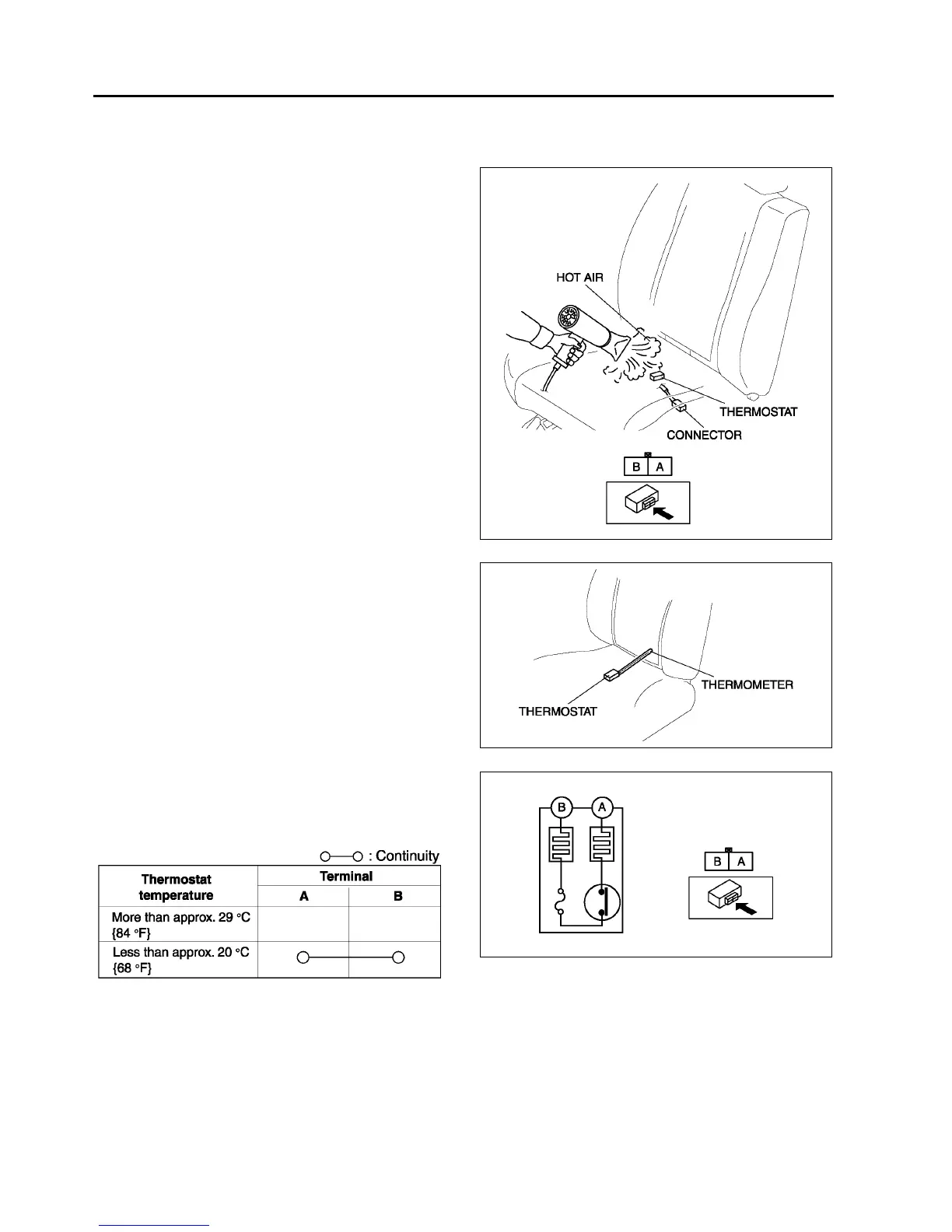

SEAT WARMER UNIT INSPECTION
A6E775259000W03
1. Remove the front seat. (See S–105 FRONT SEAT REMOVAL/INSTALLATION.)
2. Remove the seat cushion trim.
3. While inspecting for continuity between the
terminals A and B of the connector, use a dryer to
warm the thermostat of the seat warmer unit on
seat cushion.
4. When the indication on the ohmmeter is no
continuity, turn off the dryer, then use a
thermometer to measure the temperature of the
thermostat.
5. Verify that the temperature is approximately
29 °C {84 °F}.
6. Verify that there is continuity between the terminals
of seat warmer unit’s connector using an
ohmmeter when temperature drops to
approximately 20 °C {68 °F}.
End Of Sie
A6E7752W020
A6E7752W021
A6E7752W022
A6E7752W023
To Next Page
