CONVENTIONAL BRAKE SYSTEM
End Of Sie

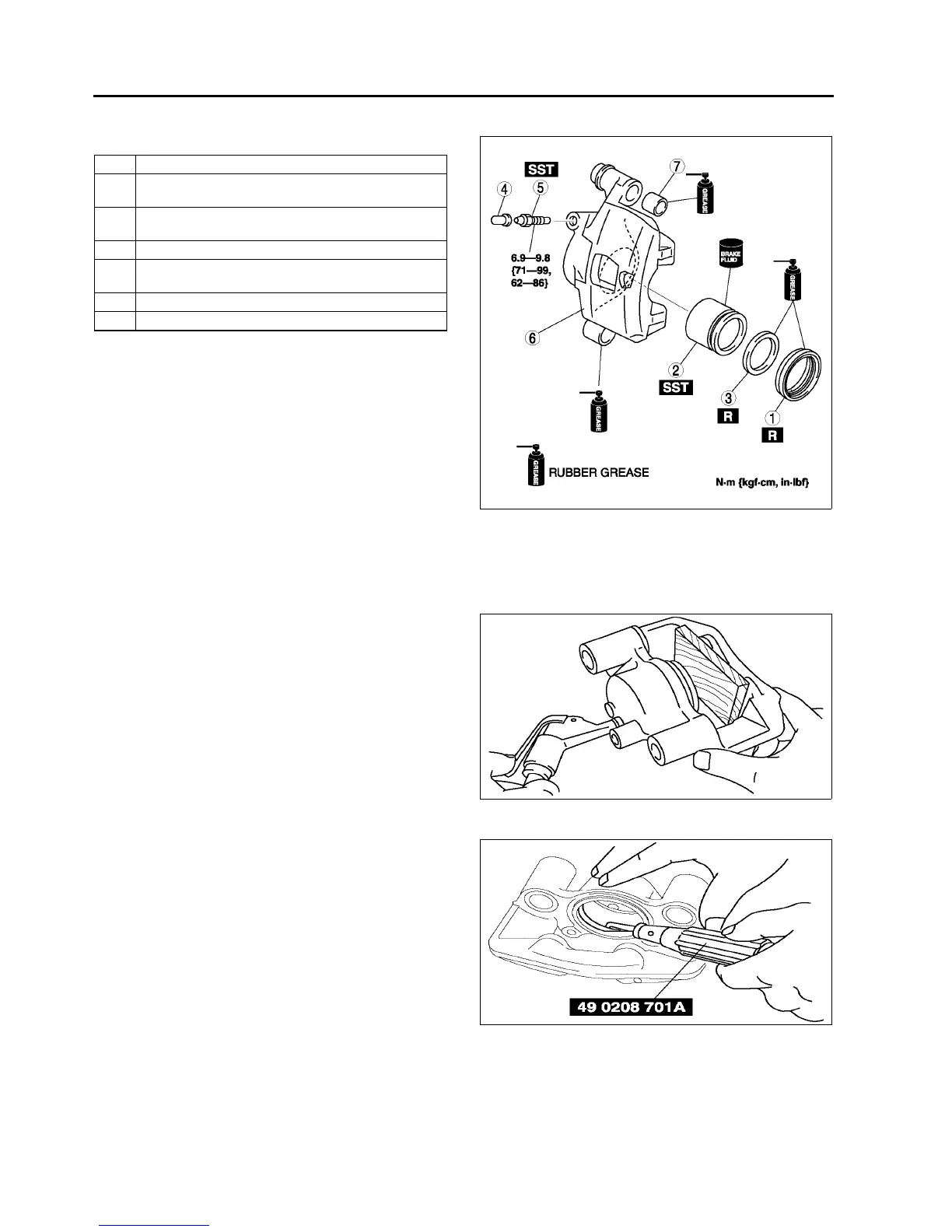

CALIPER (FRONT) DISASSEMBLY/ASSEMBLY
A6E691233990W01
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of removal.
Piston Disassembly Note
Caution
• Blow the compressed air slowly to prevent the piston from suddenly popping out.
1. Place a piece of wood in the caliper, then blow
compressed air through the hole to force the
piston out of the caliper.
Piston Seal Disassembly Note
1. Remove the piston seal from the brake caliper
using the SST.
1 Dust seal
2Piston
(See P–22 Piston Disassembly Note)
3Piston seal
(See P–22 Piston Seal Disassembly Note)
4 Bleeder cap
5 Bleeder screw
(See P–23 Bleeder Screw Assembly Note)
6 Caliper body
7 Boot
A6E6912W046
A6E6912W047
A6E6912W048
