CONVENTIONAL BRAKE SYSTEM
P–21
P
Disc Pad Installation Note
1. Push the piston fully inward using the SST.
2. Install the disc pad.
End Of Sie

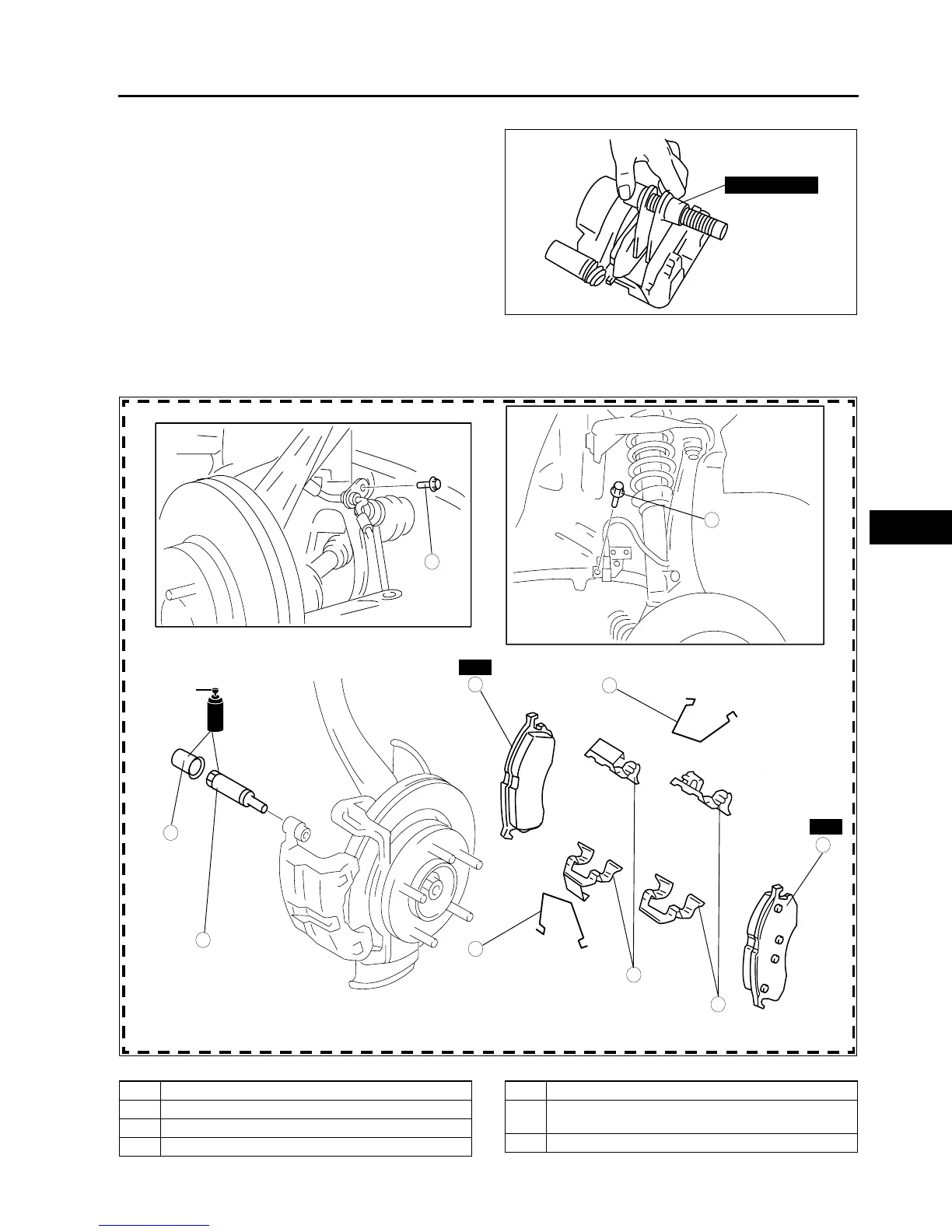

DISC PAD (FRONT) REPLACEMENT
A6E691233630W01
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
.
49 0221 600C
A6E6912W038
7
7
5
5
4
3
1
2
6
SST
6
SST
GREASE
18.5—25.5
{1.89—2.60,
13.7—18.8}
L8, LF (GCC SPECS.)
LF (EUROPEAN (L.H.D. U.K.) SPECS.), L3
L8, LF (GCC SPECS.):
44.1—49.0 {4.47—4.99, 32.4—36.1}
LF (EUROPEAN (L.H.D. U.K.) SPECS.), L3:
49.0—53.9 {5.00—5.49, 36.2—39.7}
RUBBER GREASE
18.5—25.5
{1.89—2.60,
13.7—18.8}
N·m {kgf·m, ft·lbf}
A6E6912W032
1Bolt
2Bolt
3Cap
4 Guide pin
5M-spring
6 Disc pad
(See P–21 Disc Pad Installation Note)
7 Guide plate
