P–20
CONVENTIONAL BRAKE SYSTEM

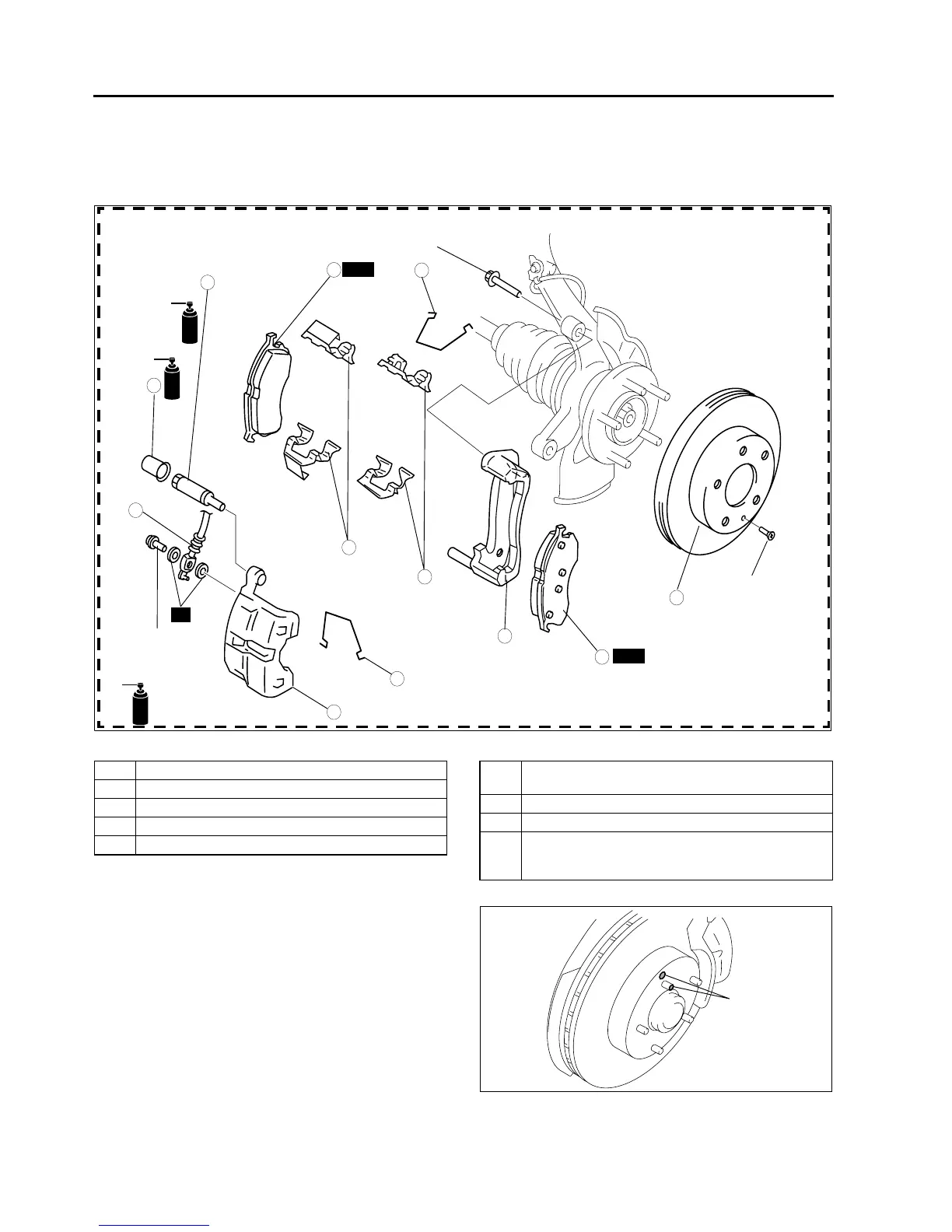

FRONT BRAKE (DISC) REMOVAL/INSTALLATION
A6E691233980W02
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, depress the pedal a few times, rotate the wheel by hand, and verify that the brake does not
drag.
.
Disc Plate Removal Note
1. Mark the wheel hub bolt and disc plate before
removal for reference during installation.
Disc Plate Installation Note
1. Remove any rust or grime on the contact face of the disc plate and wheel hub.
2. Install the disc plate and align the marks made before removal.
A6E6912W301
9
8
7
5
5
4
3
1
2
6
6
SST
SST
R
RUBBER GREASE
21.6—29.4
{2.21—3.00,
16.0—21.6}
78.4—101.9
{8.00—10.3, 57.9—75.1}
GREASE
GREASE
GREASE
GREASE
GREASE
GREASE
9.8—14.7 N·m
{100—149 kgf·cm,
87—129 in·lbf}
7
N·m {kgf·m, ft·lbf}
L8, LF (GCC SPECS.):
44.1—49.0 {4.47—4.99, 32.4—36.1}
LF (EUROPEAN (L.H.D. U.K.) SPECS.), L3:
49.0—53.9 {5.00—5.49, 36.2—39.7}
L8, LF (GCC SPECS.)
LF (EUROPEAN (L.H.D. U.K.)
SPECS.), L3
1 Flexible hose
2Cap
3 Guide pin
4 Caliper
5 M-spring
6Disc pad
(See P–21 Disc Pad Installation Note)
7 Guide plate
8 Mounting support
9 Disc plate
(See P–20 Disc Plate Removal Note)
(See P–20 Disc Plate Installation Note)
MARK
A6E6912W037
