P–38
DYNAMIC STABILITY CONTROL
DSC HU/CM REMOVAL/INSTALLATION
A6E692067650W03
Caution
• When replacing the DSC HU/CM, configuration procedure must be done before removing the DSC
HU/CM. If configuration is not completed before removing the DSC HU/CM, DTC B2477 will be
detected.
• Do not drop the DSC HU/CM. Replace it if it is subjected to an impact.
1. Configurate the DSC HU/CM (when only replacing it).(See P–29 ABS (ABS/TCS) or DSC HU/CM
CONFIGURATION.)
2. Remove the battery, battery tray and battery tray bracket.(See G–3 BATTERY REMOVAL/INSTALLATION.)
3. Remove the under cover.
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
.

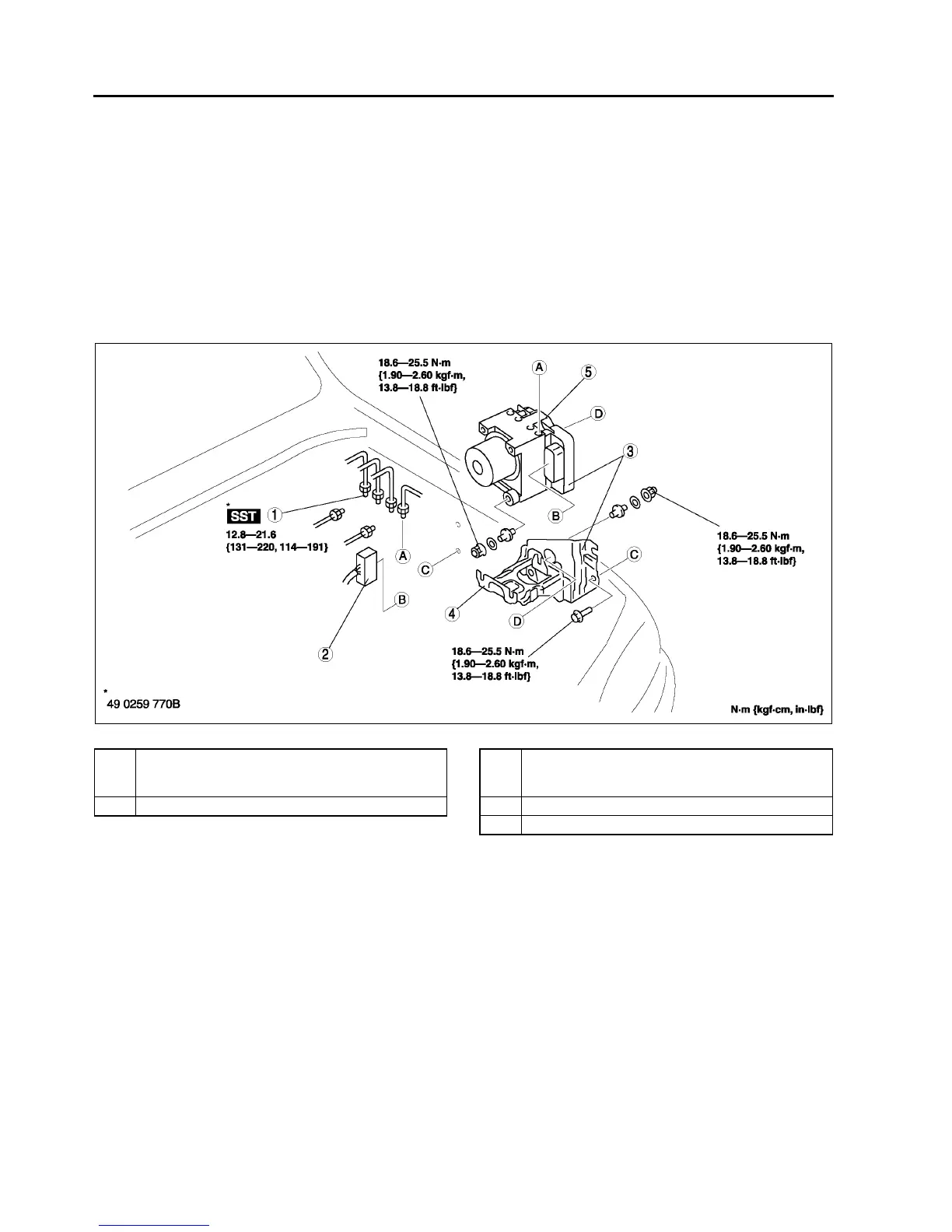

A6E6920W001
1 Connector
(See P–39 Connector Removal Note)
(See P–39 Connector Installation Note)
2 Brake pipe
3 DSC HU/CM and Bracket
(See P–39 DSC HU/CM and Bracket Removal/
Installation Note)
4Bracket
5 DSC HU/CM
To Next Page
