T–110
CRUISE CONTROL SYSTEM

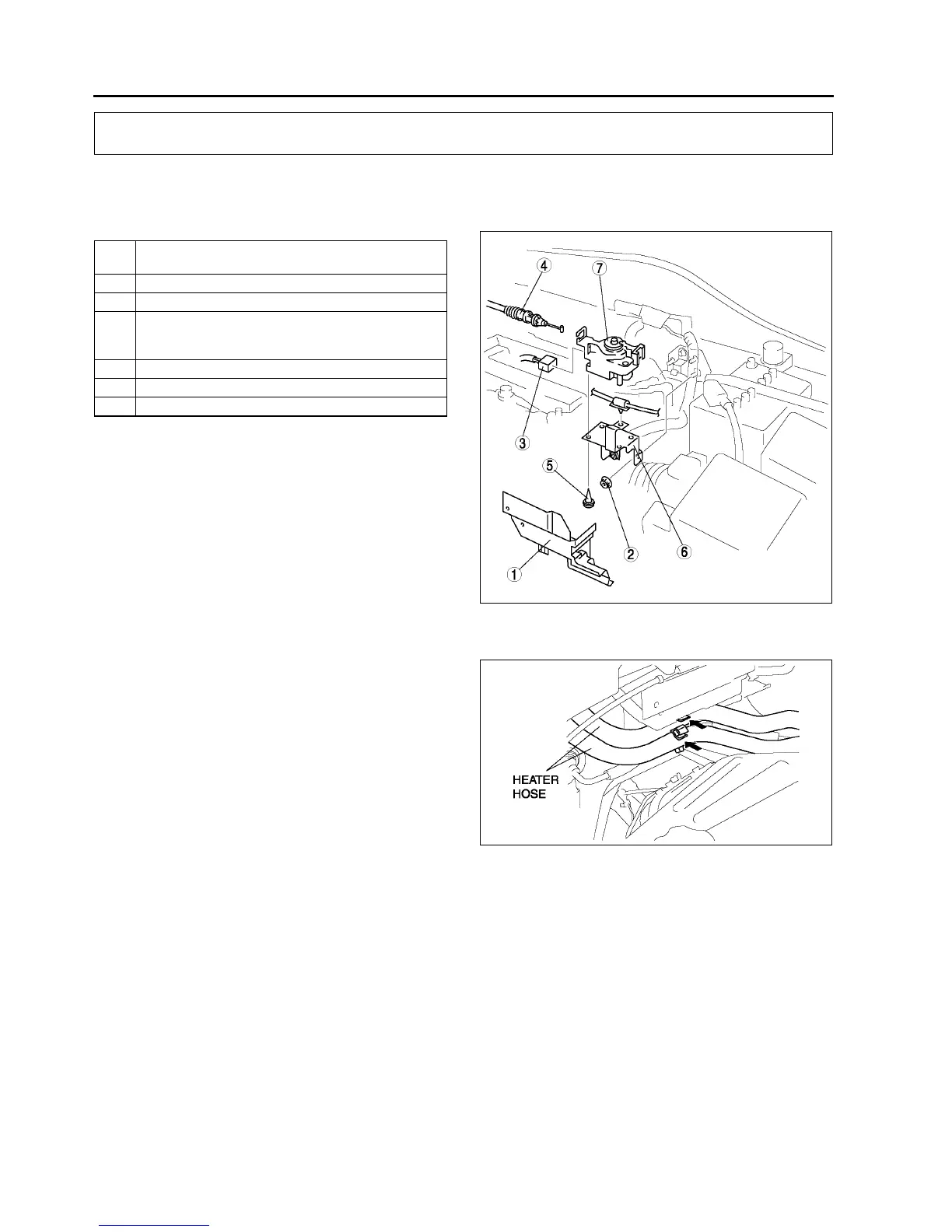

CRUISE ACTUATOR REMOVAL/INSTALLATION
A6E812866310W01
1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
Cover Removal Note
1. Unclamp the clips of the heater hoses at the front
of the cover.
End Of Sie
CRUISE ACTUATOR INSPECTION
A6E812866310W02
1. Disconnect the cruise actuator connector.
2. Measure the voltage, continuity and resistance at the cruise actuator terminals as indicated below.
• If not as specified, inspect the parts listed under “Action.”
• If the parts and wiring harnesses are okay but the system still does not work properly, replace the cruise
actuator.
CRUISE CONTROL SYSTEM
1Cover
(See T–110 Cover Removal Note)
2Nut
3 Connector
4 Actuator cable
(See T–112 ACTUATOR CABLE REMOVAL)
(See T–114 ACTUATOR CABLE INSTALLATION)
5Screw
6Bracket
7 Cruise actuator
A6E8128W001
A6E8128W002
To Next Page
