CRUISE CONTROL SYSTEM
T–111
T

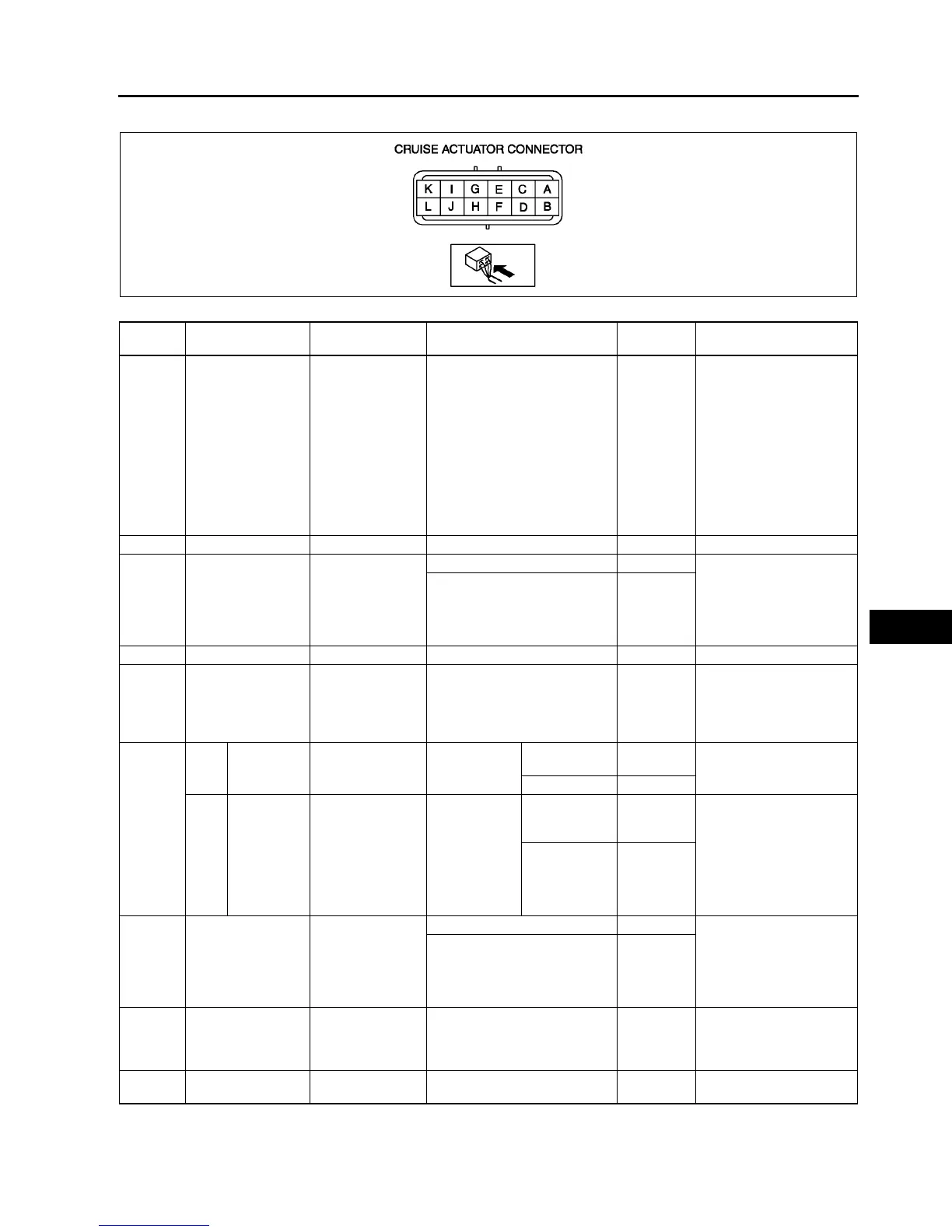

Terminal Voltage Table (Reference)
Terminal Signal Connected to Test condition
Voltage (V)
/Continuity
Action
A Vehicle speed
• DSC HU/CM
(with DSC)
• ABS (ABS/
TCS) HU/CM
(with ABS
(ABS/TCS))
1. Ignition switch at ON
position and cruise control
main switch held at on.
2. Front tire rotating
Alternates
below 1.0
and 5
• Inspect METER IG 15
A fuse
• Inspect DSC HU/CM
(See P–40 DSC HU/
CM INSPECTION)
• Inspect ABS (ABS /
TCS) HU/CM
(See P–29 ABS (ABS/
TCS) HU/CM
INSPECTION)
• Inspect related
harness
B —— — ——
C Brake switch on/off Brake switch
Depress brake pedal B+ • Inspect brake switch
(See P–8 BRAKE
SWITCH
INSPECTION)
• Inspect related
harness
Replace brake pedal Below 1.0
D —— — ——
E
O/D control
(ATX only)
PCM Ignition switch at ON position B+
• Inspect PCM
(See F–45 PCM
INSPECTION)
• Inspect related
harness
F
MTX
Clutch
switch on/off Clutch switch
Inspect for
continuity to
ground
Depress
crutch switch
Yes
• Inspect clutch switch
• Inspect related
harness
Other No
ATX
Selector
lever
position
TR switch
Inspect for
continuity to
ground
Selector lever
at N or P
position
Yes
• Inspect TR switch
(See K–14
TRANSAXLE RANGE
(TR) SWITCH
INSPECTION)
• Inspect starter
• Inspect related
harness
Other No
G
Cruise set indicator
light output
Cruise set
indicator light
Ignition switch at ON position B+ • Inspect METER IG 15
A fuse
• Inspect instrument
cluster
• Inspect related
harness
Ignition switch at LOCK
position or ACC position
Below 1.0
H
Cruise main
indicator light
output
Cruise main
indicator light
Under any condition: inspect
for continuity to ground
Yes
• Inspect instrument
cluster
• Inspect related
harness
I
Cruise actuator
ground
GND
Under any condition: inspect
for continuity to ground
Yes • Inspect GND
A6E8128W013
