CLUTCH UNIT
H–11
H
CLUTCH UNIT REMOVAL/INSTALLATION
A6E492016000W01
1. Remove in the order indicated in the table.
2. Install in the reverse order oremoval.
.

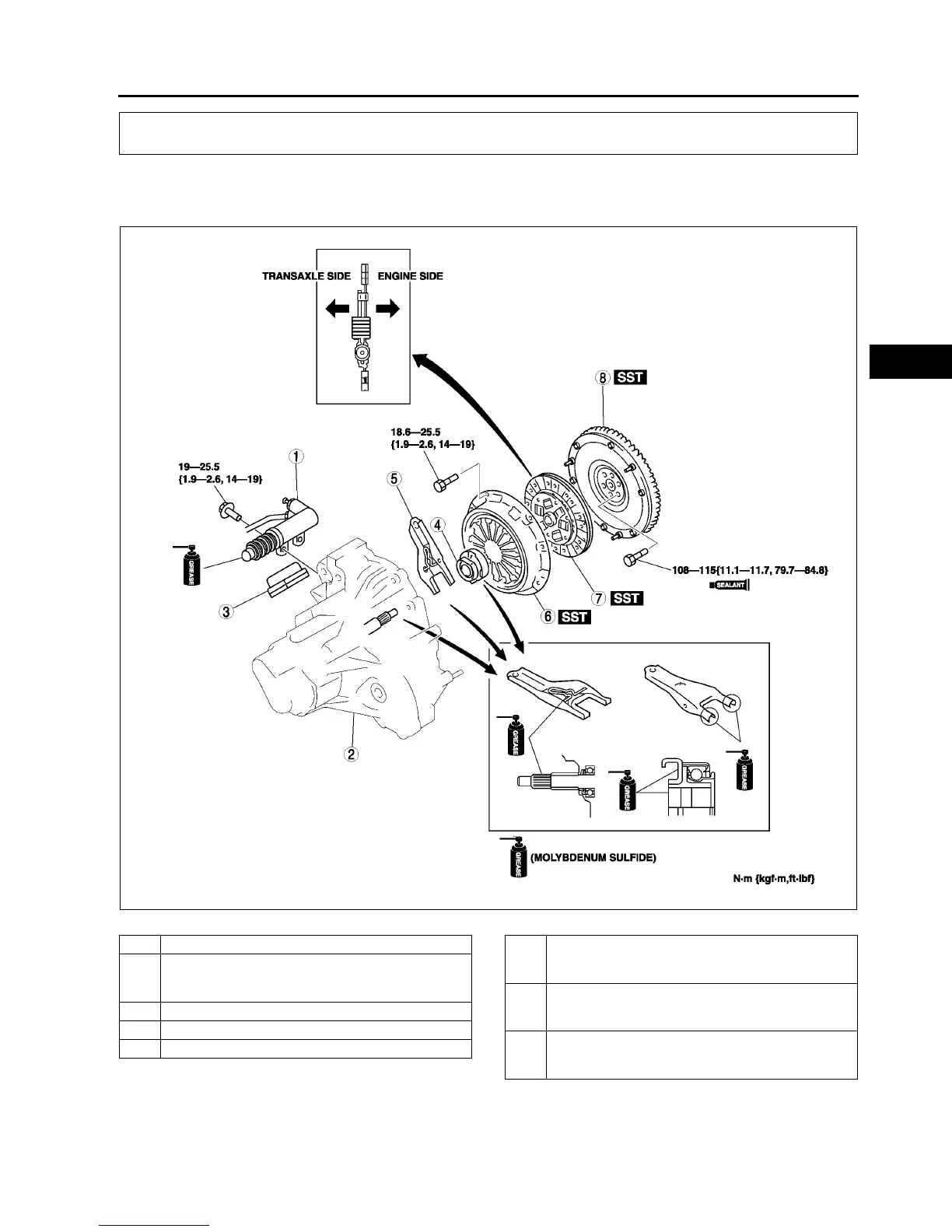

CLUTCH UNIT
A6E4920W001
1 Clutch release cylinder
2 Manual transaxle
(See J–5 MANUAL TRANSAXLE REMOVAL/
INSTALLATION)
3Boot
4 Clutch release collar
5 Clutch release fork
6 Clutch cover
(See H–12 Clutch Cover and Disc Removal Note)
(See H–13 Clutch Cover Installation Note)
7Clutch disc
(See H–12 Clutch Cover and Disc Removal Note)
(See H–13 Clutch Disc Installation Note)
8 Flywheel
(See H–12 Flywheel Removal Note)
(See H–12 Flywheel Installation Note)
To Next Page
