T–176
ON-BOARD DIAGNOSTIC [AUDIO]
DTC 07:ER07
A6E817566900W25
Diagnostic procedure
End Of Sie
DIAGNOSTIC ASSIST FUNCTION
A6E817566900W26

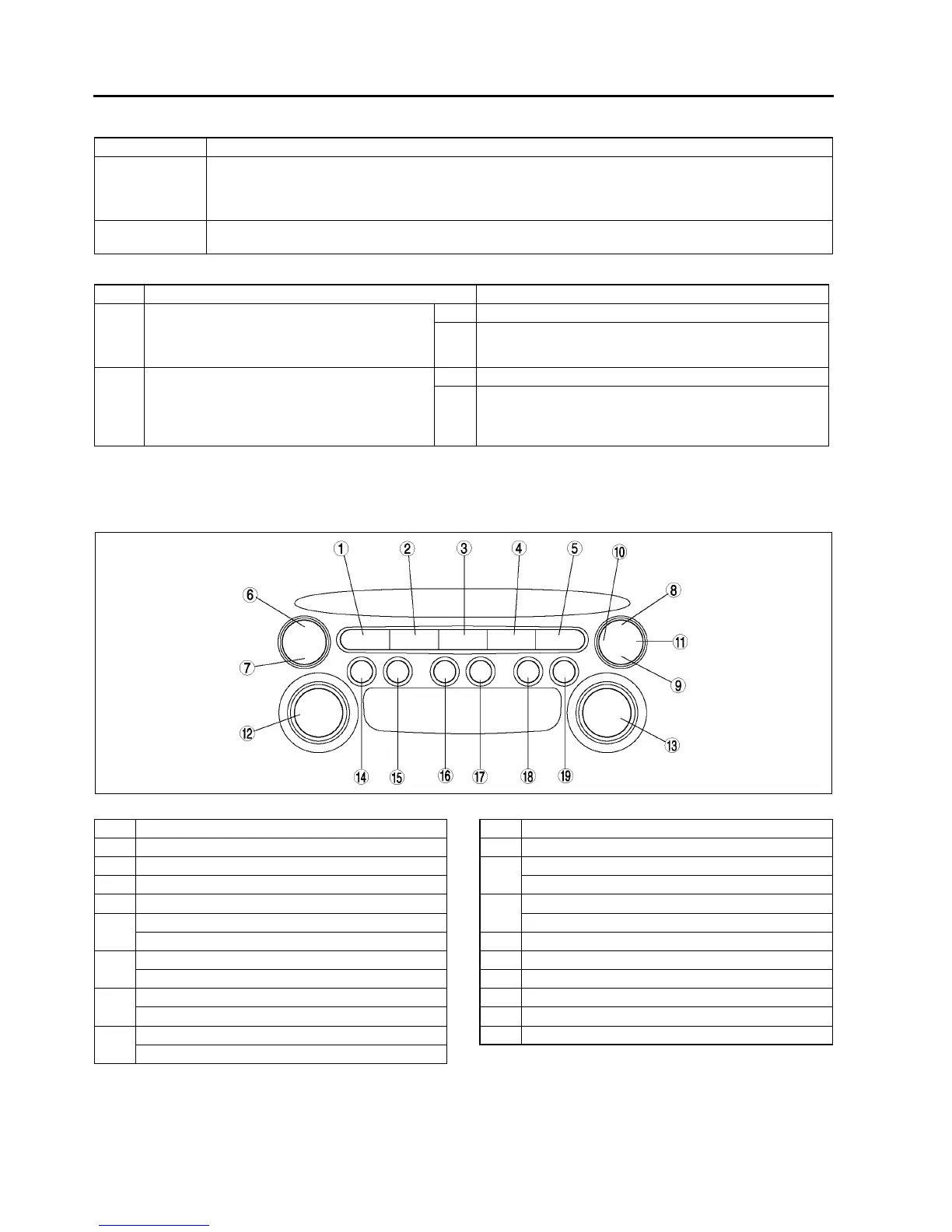

Structural View
Switch location
.
DTC 07:Er07 MD player
DETECTION
CONDITION
Note
• When error occurs, error message “CHECK MD” is displayed in the LCD.
• Base unit detects MD reading error.
POSSIBLE
CAUSE
• Defective MD (scratches or dirt)
• MD player malfunction
STEP INSPECTION ACTION
1 INSPECT MD
• Inspect condition of MD where error has
occurred.
• Is MD okay?
Yes Go to next step.
No Repair (remove foreign material) or replace MD, then go to
next step.
2 INSPECT MD PLAYER
• Clear DTC.
• Insert and play MD for 12 seconds or more.
• Start on-board diagnostic test mode.
• Is DTC 07:Er07 displayed?
Yes Replace MD player.
No Troubleshooting completed.
A6E8175W001
1 FM1 button
2 FM2 button
3AM button
4 CD button
5 TAPE/MD button
6 SEEK button (upper) (type A)
SCAN button (type B)
7 SEEK button (lower) (type A)
AUTO-M button (type B)
8 TA button (type A)
SEEK button (upper) (type B)
9 AUTO-M button (type A)
SEEK button (lower) (type B)
10 AF button (type A)
11 PYT button (type A)
12 POWER button (type A)
AUDIO CONT button (type B)
13 AUDIO CONT button (type A)
POWER button (type B)
14 Preset button “1”
15 Preset button “2”
16 Preset button “3”
17 Preset button “4”
18 Preset button “5”
19 Preset button “6”
