BODY SHELL
S–119
S
SHROUD PANEL REMOVAL/INSTALLATION
A6E775453140W01
1. Remove the bonnet. (See S–10 BONNET REMOVAL/INSTALLATION.)
2. Remove the front bumper. (See S–47 FRONT BUMPER REMOVAL/INSTALLATION.)
3. Remove the front combination light. (See T–26 FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
4. Remove the front bumper reinforcement. (See S–48 BUMPER REINFORCEMENT REMOVAL/
INSTALLATION.)
5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
End Of Sie
COWL PANEL REMOVAL/INSTALLATION
A6E775453580W01
1. Remove the windshield wiper arm and blade. (See T–57 WINDSHIELD WIPER ARM AND BLADE REMOVAL/
INSTALLATION.)
2. Remove the cowl grille.
3. Remove the windshield wiper motor. (See T–56 WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION.)
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
End Of Sie
BODY SHELL

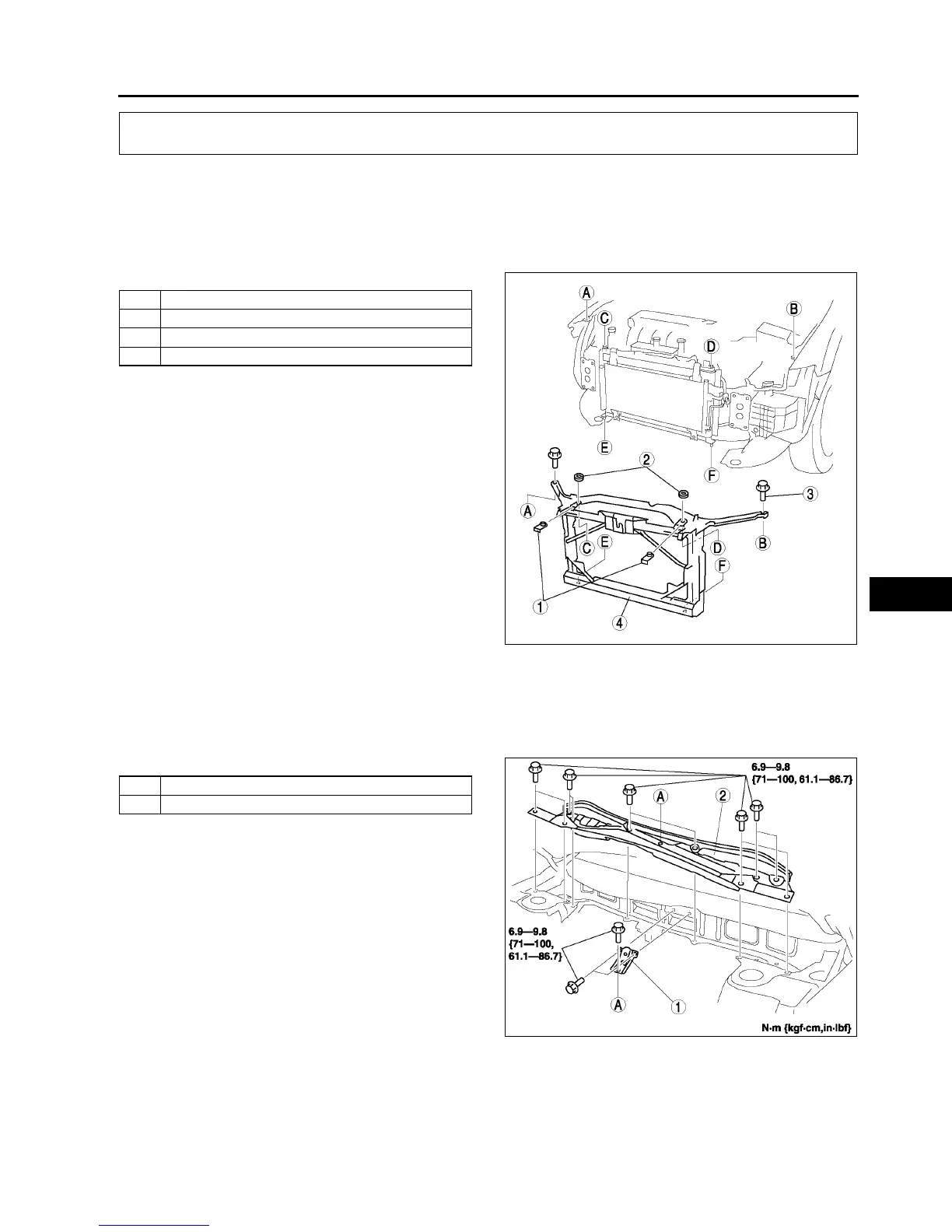

1 Radiator mount cover
2 Radiator mount rubber
3Bolt
4 Shroud panel
A6E7754W001
1Gusset
2 Cowl panel
A6E7754W002
To Next Page
