AUTOMATIC TRANSAXLE SHIFT MECHANISM
K–46–3
K
SELECTOR CABLE ADJUSTMENT
A6E561646102W02
1. Remove the center console.
2. Shift the selector lever to P position.

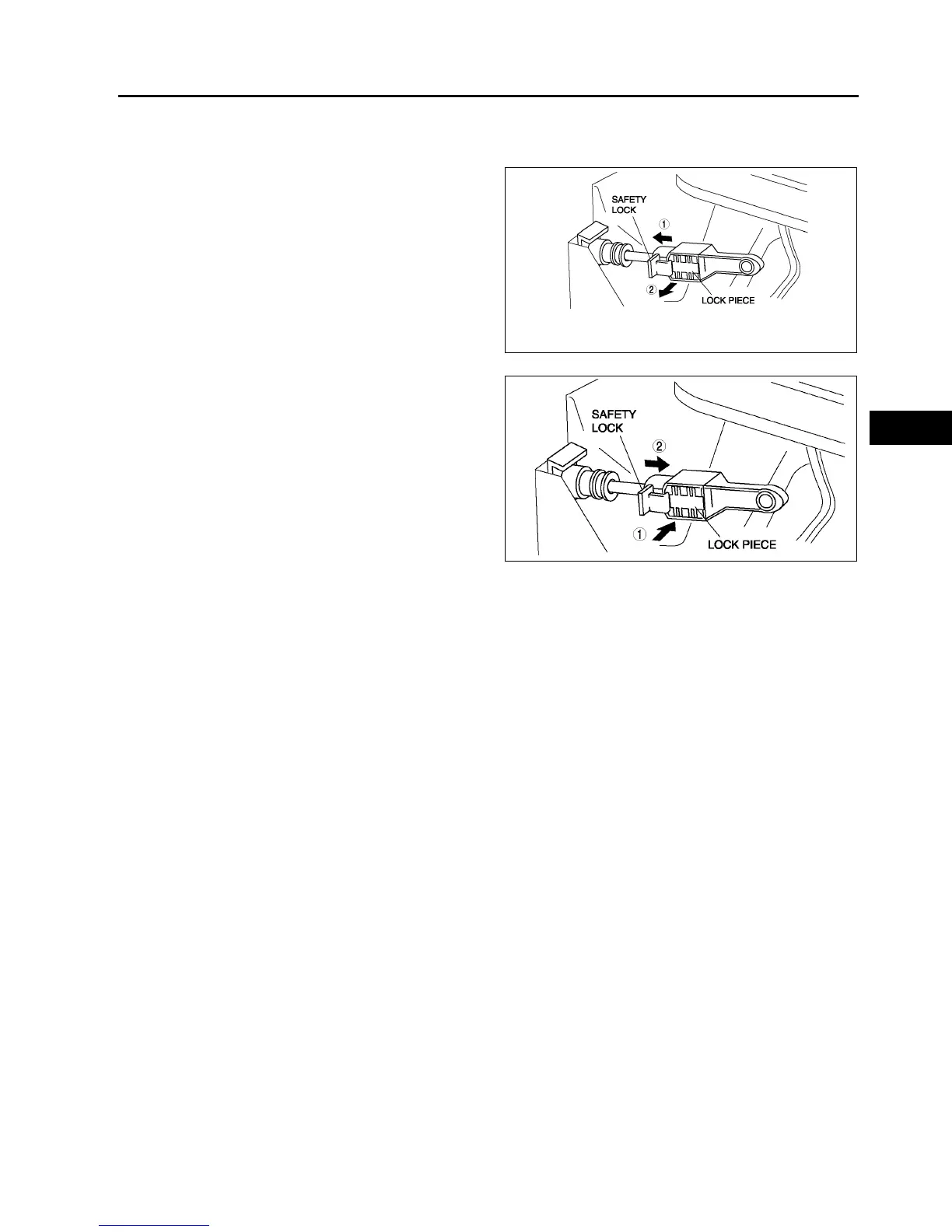

3. Unlock the lock piece of the selector cable
(selector lever side) in the order shown in the
figure.
4. Verify that the manual shaft is in P position.
5. Lock the lock piece of the selector cable (selector
lever side) in the order shown in the figure.
6. Install the center console.
7. Shift the selector lever from P position to L range,
and make sure that there are no other
components in that area to interfere with the lever.
End Of Sie
SELECTOR LEVER REMOVAL/INSTALLATION
A6E561646102W03
1. Disconnect the negative battery cable.
2. Remove battery and battery tray.
3. Remove the air cleaner compornent. (See F–10 INTAKE-AIR SYSTEM REMOVAL/INSTALLATION.)
4. Remove the console.
5. Remove the dashboard compleat.
(See S–82 DASHBOARD REMOVAL/INSTALLATION.)
6. Remove the SAS control module.
(See T–124 SAS UNIT REMOVAL/INSTALLATION.)
7. Remove the climate control unit. (See U–44 CLIMATE CONTROL UNIT REMOVAL.) (See U–45 CLIMATE
CONTROL UNIT INSTALLATION.)
8. Remove the rear heat duct. (See U–23 REAR HEAT DUCT REMOVAL/INSTALLATION.)
9. Remove in the order shown in the figure.
10. Remove the battery, battery tray and battery bracket.
End Of Sie
