S–90
TRIM

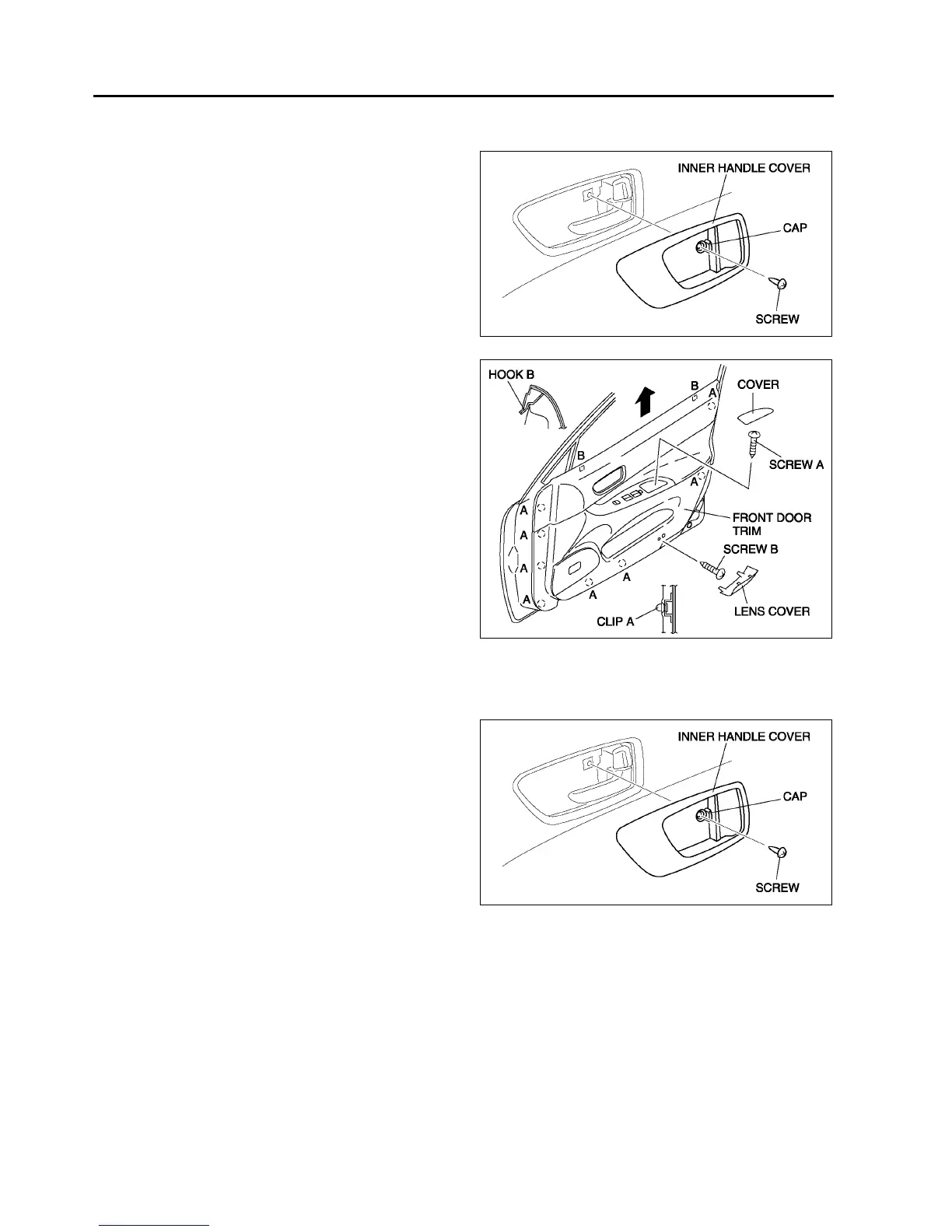

FRONT DOOR TRIM REMOVAL/INSTALLATION
A6E774468420W01
1. Disconnect the negative battery cable.
2. Open the cap using a small screwdriver, then
remove the screw.
3. Remove the inner handle cover.
4. Remove the inner garnish.
5. Remove the cover, then remove screw A.
6. Remove the lens cover, then remove screw B.
7. Disengage clips A from the front door using a
fastener remover.
8. Pull the front door trim upward, then disengage
hooks B from the front door.
9. Disconnect the power door mirror switch
connector and the power window main switch
connector (driver’s side) or power window
subswitch connector (passenger’s side).
10. Remove the courtesy light.
11. Remove the front door trim.
12. Remove the switch panel from the front door trim.
13. Install in the reverse order of removal.
End Of Sie
REAR DOOR TRIM REMOVAL/INSTALLATION
A6E774468520W01
1. Disconnect the negative battery cable if equipped with power window system.
2. Remove the regulator handle if equipped.
3. Open the cap using a small screwdriver, then
remove the screw.
4. Remove the inner handle cover.
5. Remove the cover, then remove screw.
6. Disengage clips A from the rear door using a
fastener remover.
A6E7744W009
A6E7744W010
A6E7744W009
