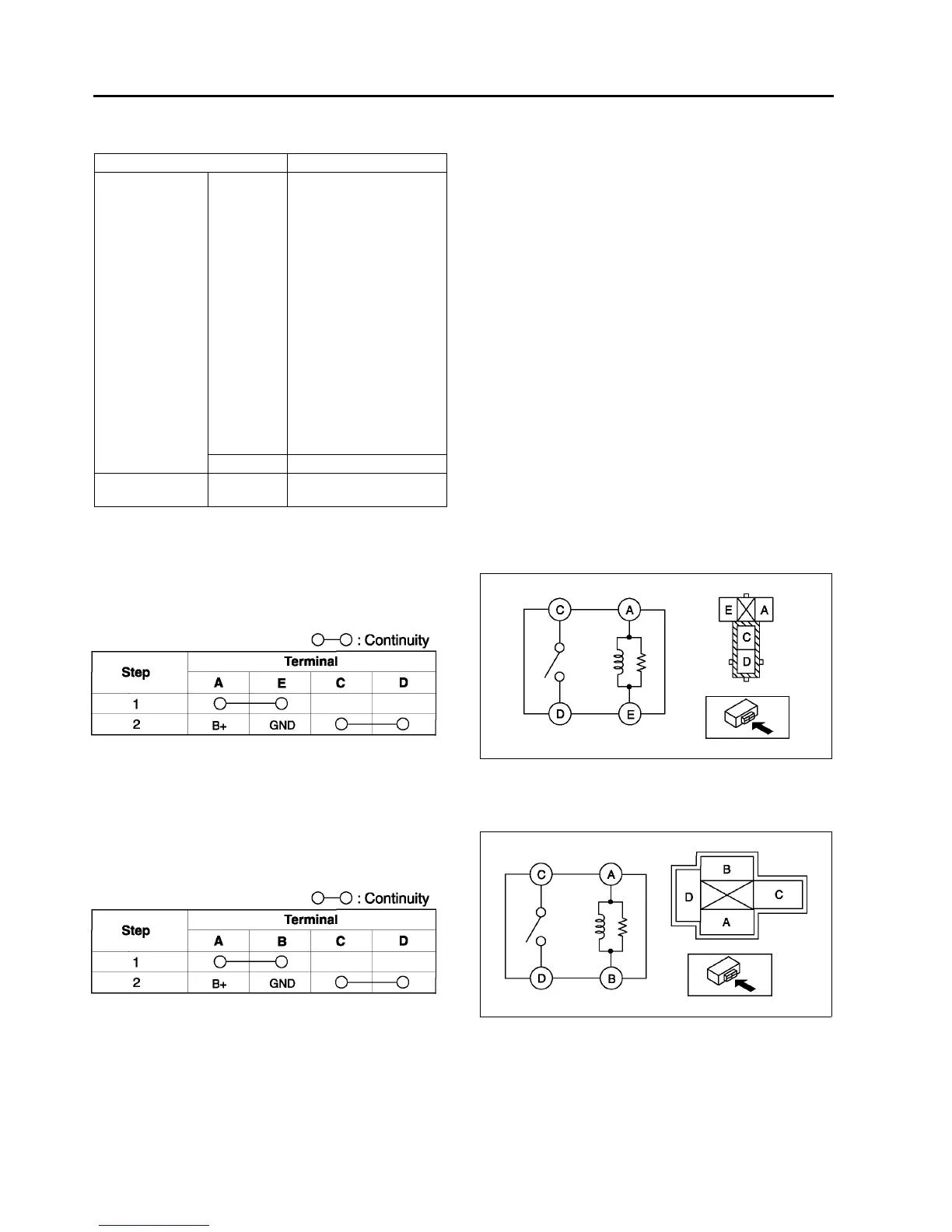

RELAY INSPECTION
A6E811067730W02
Relay Type
Four-terminal
Type A
1. Remove the relay.
2. Inspect for continuity between the relay terminals
using an ohmmeter.
• If not as specified, replace the relay.
Type B
1. Remove the relay.
2. Inspect for continuity between the relay terminals
using an ohmmeter.
• If not as specified, replace the relay.
Terminal type Parts name
Four-terminal
Type A
• Main relay
• Fuel pump relay
• Stater relay
• TNS relay
• Front fog light relay
• Rear fog light relay
• Horn relay
• Headlight cleaner
relay
• Rear window
defroster relay
• Woofer relay
• A/C relay
• Blower relay
• Cooling fan relay No.1
(except L3 engine)
• Cooling fan relay No.2
• Cooling fan relay No.3
• Cooling fan relay No.4
Type B • Headlight relay
Five-terminal Type C
• Cooling fan relay No.1
(L3 engine only)
A6E8110W118
A6E8110W121
A6E8110W125
A6E8110W123
