SHIFT MECHANISM
J–9
J
SHIFT MECHANISM REMOVAL/INSTALLATION
A6E511446010W01
1. Remove the battery, battery tray and battery bracket.
2. Remove the air cleaner component. (See F–10 INTAKE-AIR SYSTEM REMOVAL/INSTALLATION.)
3. Remove the dashboard compleat.
(See S–82 DASHBOARD REMOVAL/INSTALLATION.)
4. Remove the SAS control module.
(See T–124 SAS UNIT REMOVAL/INSTALLATION.)
5. Remove the climate control unit. (See U–44 CLIMATE CONTROL UNIT REMOVAL.) (See U–45 CLIMATE
CONTROL UNIT INSTALLATION.)
6. Remove the rear heat duct. (See U–23 REAR HEAT DUCT REMOVAL/INSTALLATION.)
7. Remove in the order indicated in the table.
8. Install in the reverse order of removal.
9. Install the air cleaner component.
10. After installation, verify that the shift lever can be shifted smoothly into each position.
.

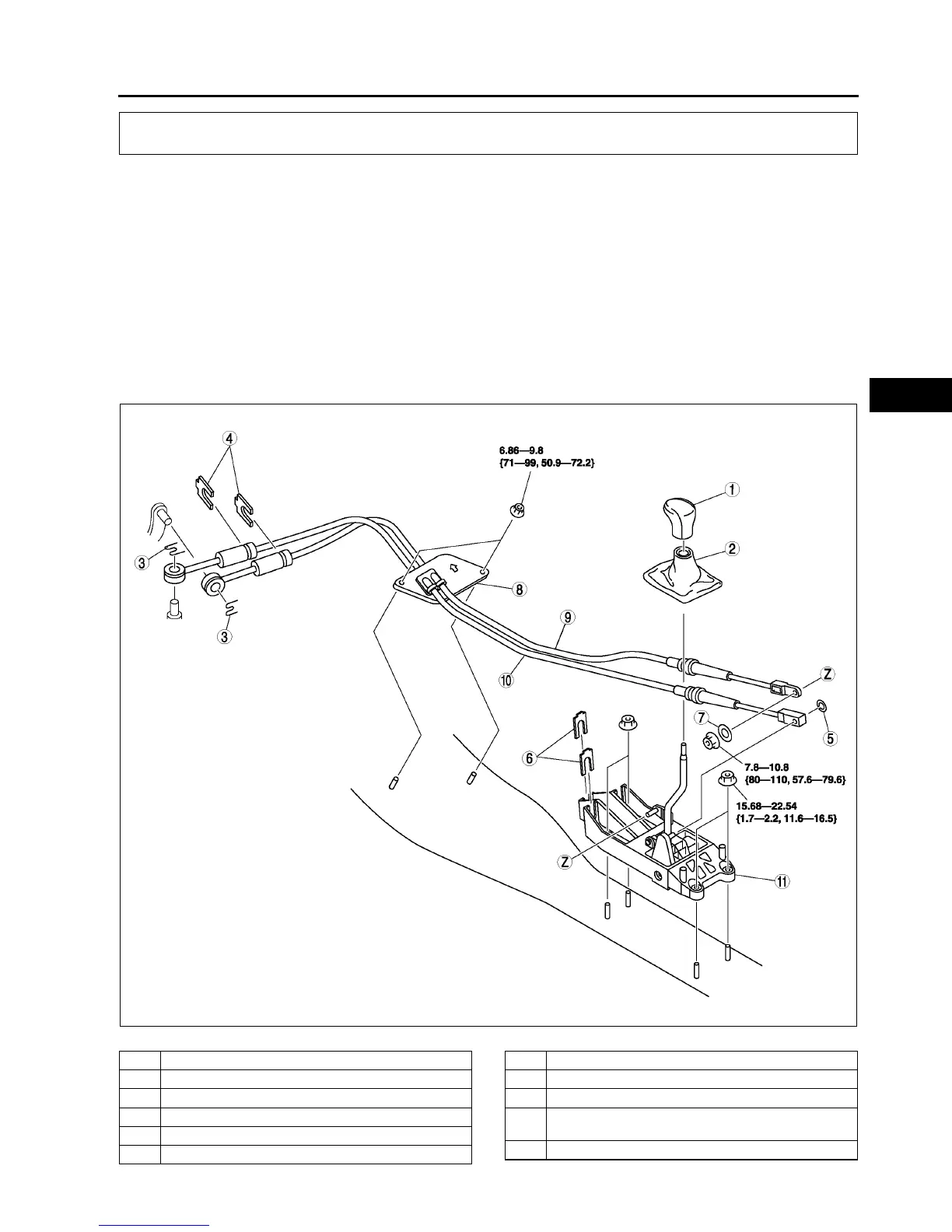

SHIFT MECHANISM
A6E5114W001
1 Shift lever knob
2 Boot panel
3Clip
4Clip
5Clip
6Clip
7Plain Washer
8 Seal plate
9 Main shift cable
10 Main select cable
(See J–10 Select Cable Installation Note)
11 Sift lever assembly
To Next Page
