T–90
IMMOBILIZER SYSTEM

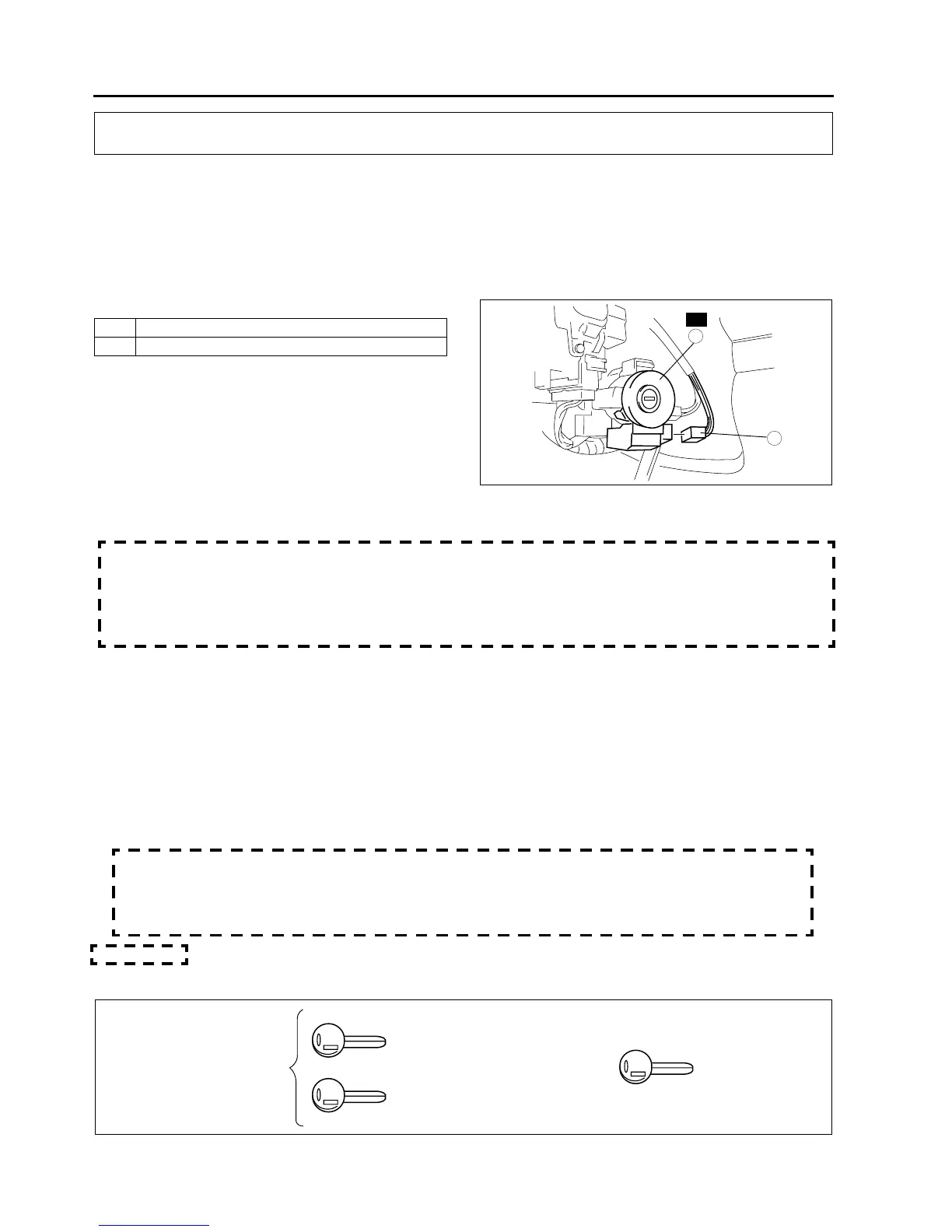

COIL REMOVAL/INSTALLATION
A6E812267004W01
Note
• Do not remove the coil unless you are replacing it.
• When only the coil is replaced, the immobilizer system reprogram procedure is not necessary.
1. Disconnect the negative battery cable.
2. Remove the column cover.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
End Of Sie
IMMOBILIZER SYSTEM REPROGRAM PROCEDURE
A6E812267000W01
Caution
• Do not perform key registration or start the engine under the following conditions. Doing so could
result in a key registration error or the engine not starting even with a correctly registered key.
— If a large, metal object is close to a valid key
— If an electrical device is close to a valid key
— If two or more valid keys are on the same key ring
Note
• When an error occurs during the reprogram procedures, except when the PCM is replaced, repeat the
procedure from Step 1. If you still cannot reprogram, confirm how many keys can start the engine. Then,
perform the key replacement or addition reprogram procedure according to the valid key number.
• To make a copy of the key or replace the immobilizer system component parts (the key(s), and/or PCM),
the customer should bring all keys to the dealer. This is because the previously programmed key IDs are
erased when reprogramming the key IDs into the PCM.
• The immobilizer system cannot be deactivated.
• Confirm that all keys registered can start the engine after the reprogram procedure. When confirming, wait
for more than 5 seconds before inserting the next key.
• When the customer does not need to register more than two keys, the following procedures can be
stopped after registering two keys.
• If the engine is started during the key registration procedure, the key registration mode will be erased.
Therefore, do not start the engine until the key registration procedure for all the necessary keys is
finished.
• A maximum of 8 keys can be registered for one vehicle.
• Two or more valid keys are necessary to start engine.
Key Addition
When the customer has two or more valid keys
IMMOBILIZER SYSTEM
1 Connector
2Coil
R
2
1
A6E8122W001
VALID KEYS
NEW KEY
KEY 1
KEY 2
KEY 3
A6E8122W003
To Next Page
