AIR BAG SYSTEM
T–133
T

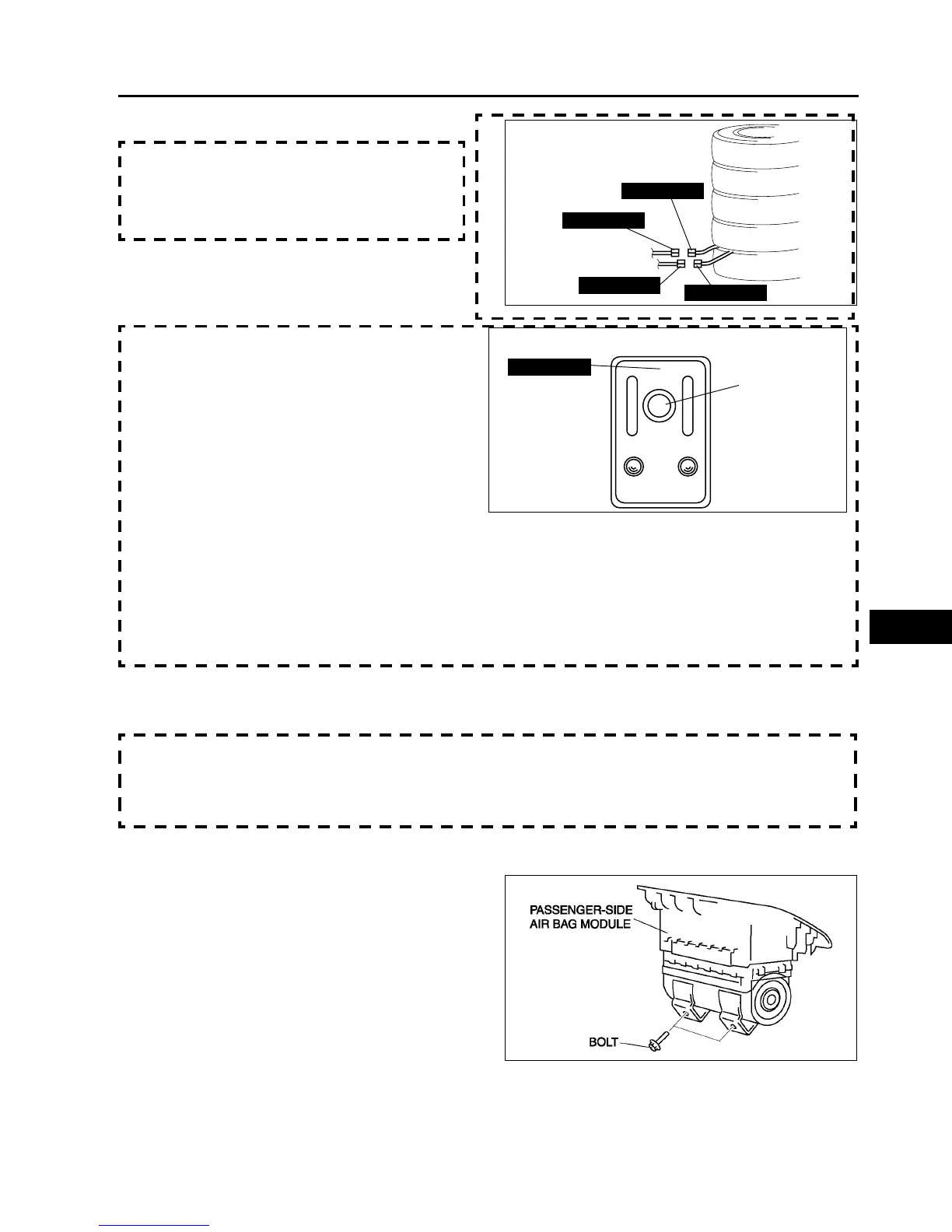

6. Connect the SST (Deployment tool) to the SST
(Adapter harness).
7. Connect both SSTs (Deployment tool) to the
battery. Connect the power supply red clip to the
positive battery terminal, and the black clip to the
negative battery terminal.
8. Verify that the red lamp on both SSTs
(Deployment tool) is illuminated.
9. Make sure all persons are standing at least 6 m
{20 ft} away from the vehicle.
10. Press the activation switch on the SST
(Deployment tool) connected with 49 L066 002
(a yellow connector) of the SST (Adapter
harness), and after 3 s, press the activation
switch on the other SST (Deployment tool) to
operate (deploy) the air bag module (both
inflators).
Warning
• Verify that air bag module operation
(explosive) sound occurs twice. If no
operation (explosive) sound was heard
or a single operation (explosive) sound
was heard, both inflators would not
have operated (deployed) properly. This may cause serious injury because the air bag module may
operate (deploy) accidentally. If the two operation (explosive) sounds are not heard, perform Step
10 again. In case that the two operation (explosive) sounds in total are not verified even though
Step 10 is performed again, leave the air bag module alone for 30 min or more before getting near
it again.
• The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do
not touch the air bag module for at least 15 min after deployment.
11. Disconnect the SST (Deployment tool) from the SST (Adapter harness).
Passenger-side air bag module
Warning
• The passenger-side air bag module is a dual inflator type. If one inflator is forced to operate
(deploy), the other may operate (deploy) accidentally. To prevent injury while disposing of the air
bag module, make sure to operate (deploy) both passenger-side air bag module inflators
simultaneously, following the procedure below.
1. Remove the passenger-side air bag module. (See T–121 PASSENGER-SIDE AIR BAG MODULE REMOVAL/
INSTALLATION.)
2. Install the bolts to the passenger-side air bag
module.
49 H066 002
49 L066 002
49 G066 003
49 H066 002
BHJ0810W106
49 H066 002
ACTIVATION
SWITCH
A6E8130W028
A6E8130W035
To Next Page
