U–14
BASIC SYSTEM

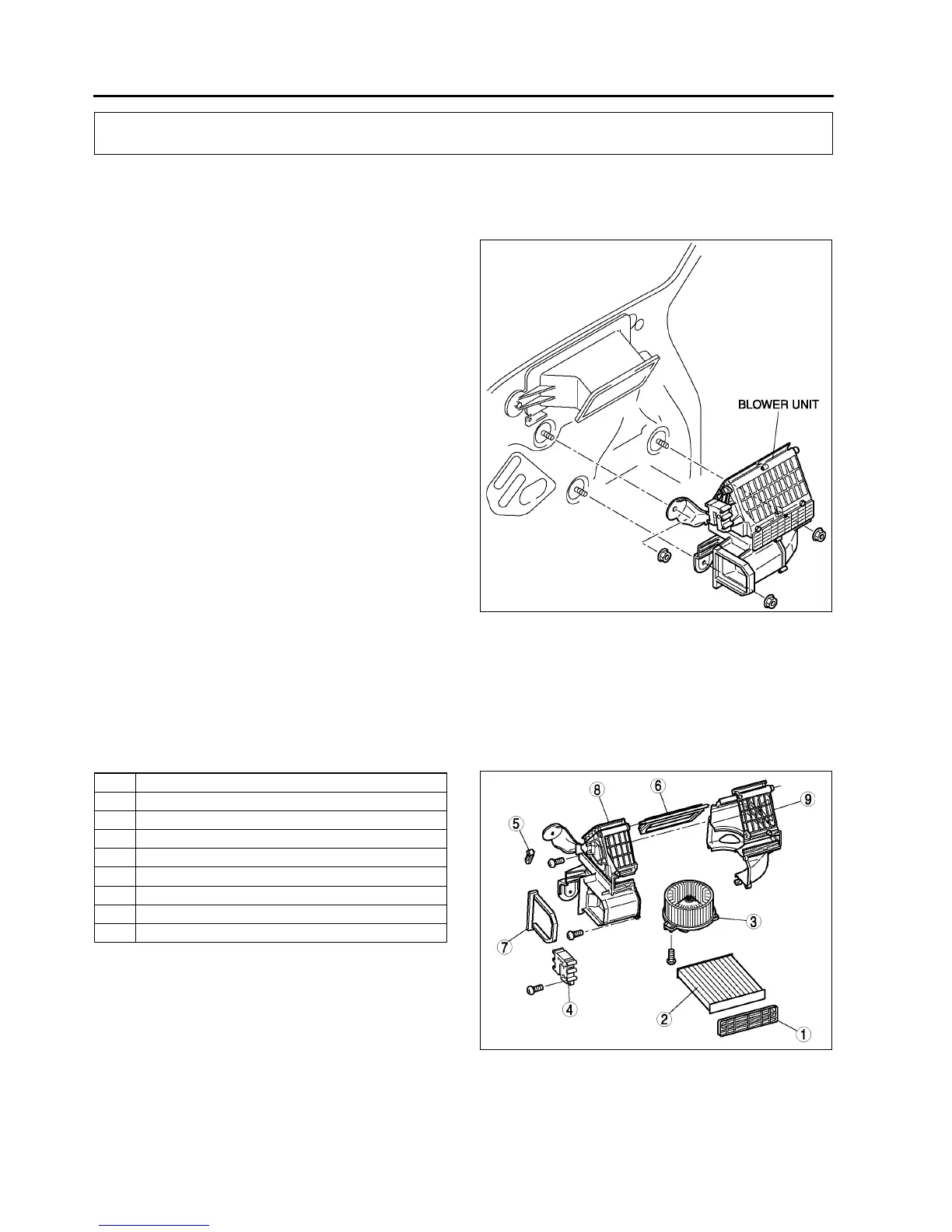

BLOWER UNIT REMOVAL/INSTALLATION
A6E851661140W01
1. Disconnect the negative battery cable.
2. Remove the dashboard. (See S–82 DASHBOARD REMOVAL/INSTALLATION.)
3. Remove the A/C unit. (See U–15 A/C UNIT REMOVAL/INSTALLATION.)
4. Remove the blower unit.
5. Install in the reverse order of removal.
End Of Sie
BLOWER UNIT DISASSEMBLY/ASSEMBLY
A6E851661140W02
1. Disassemble in the order indicated in the table.
Caution
• Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may
result.
.
2. Assemble in the reverse order of disassembly.
End Of Sie
BASIC SYSTEM
A6E8516W001
1 Air filter cover
2 Air filter
3Blower motor
4 Air intake actuator
5 Air intake crank
6 Air intake door
7 Polyurethane protector
8 Blower case (1)
9 Blower case (2)
A6E8516W002
To Next Page
