CONTROL SYSTEM
U–41
U
CABIN TEMPERATURE SENSOR INSPECTION
A6E854061757W02
1. Measure the temperature around the cabin temperature sensor.
2. Measure the resistance between terminals of the
cabin temperature sensor.

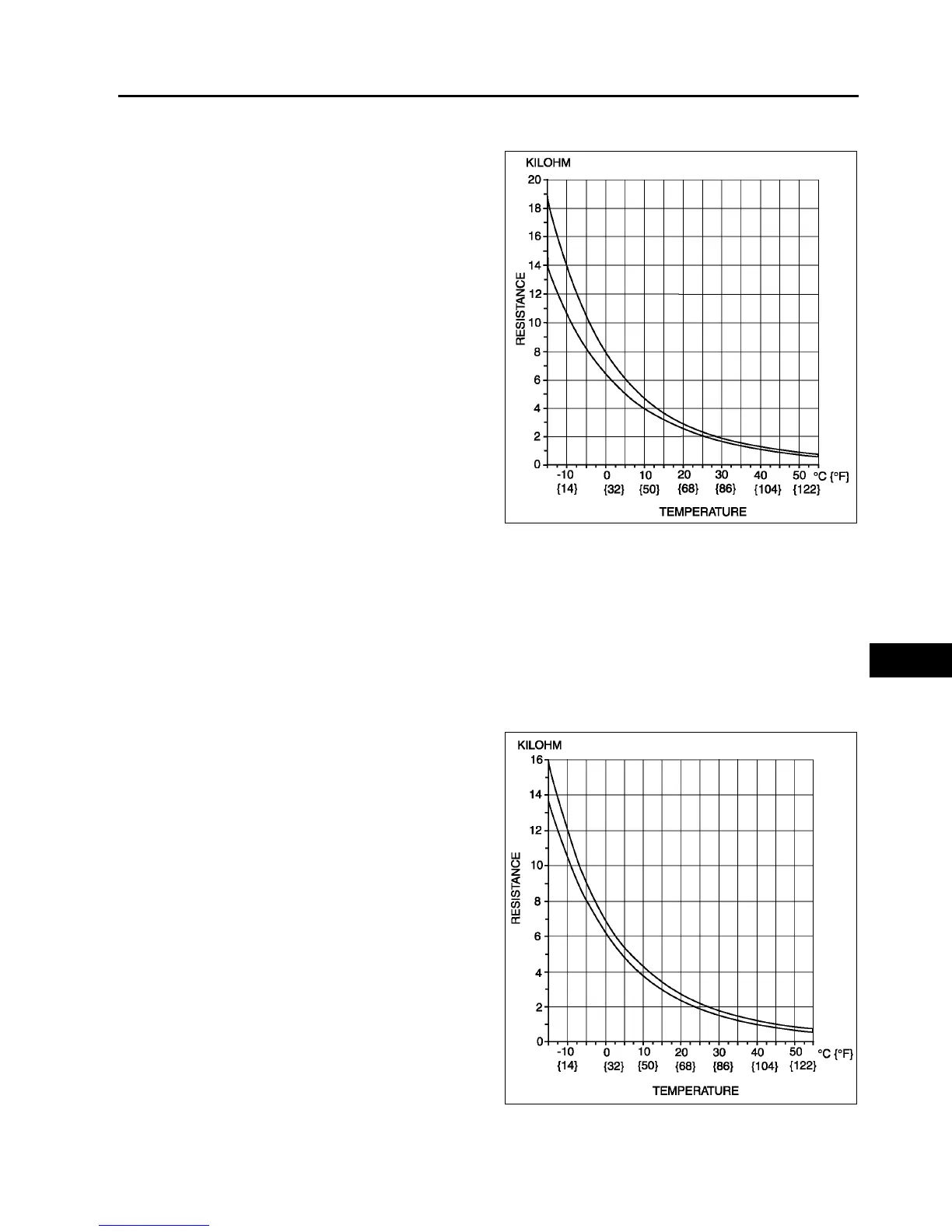

• If the resistance is not as shown in the graph,
replace the cabin temperature sensor.
End Of Sie
EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION
A6E854061022W01
1. Remove the evaporator temperature sensor from the A/C unit. (See U–18 A/C UNIT DISASSEMBLY/
ASSEMBLY.)
End Of Sie
EVAPORATOR TEMPERATURE SENSOR INSPECTION
A6E854061022W02
1. Turn the AUTO switch on.
2. Set the temperature control at MAX COLD (Turn the left).
3. Turn the A/C switch.
4. Set the RECIRCULATE mode.
5. Close all doors and windows.
6. Wait for 5 minutes.
7. Remove the glove compartment.
8. Disconnect the evaporator temperature sensor.
9. Measure the temperature at the blower inlet.
10. Measure the resistance between terminals of the
evaporator temperature sensor.
• If the resistance is not as shown in the graph,
replace the evaporator temperature sensor.
End Of Sie
A6E8540W021
A6E8540W019
