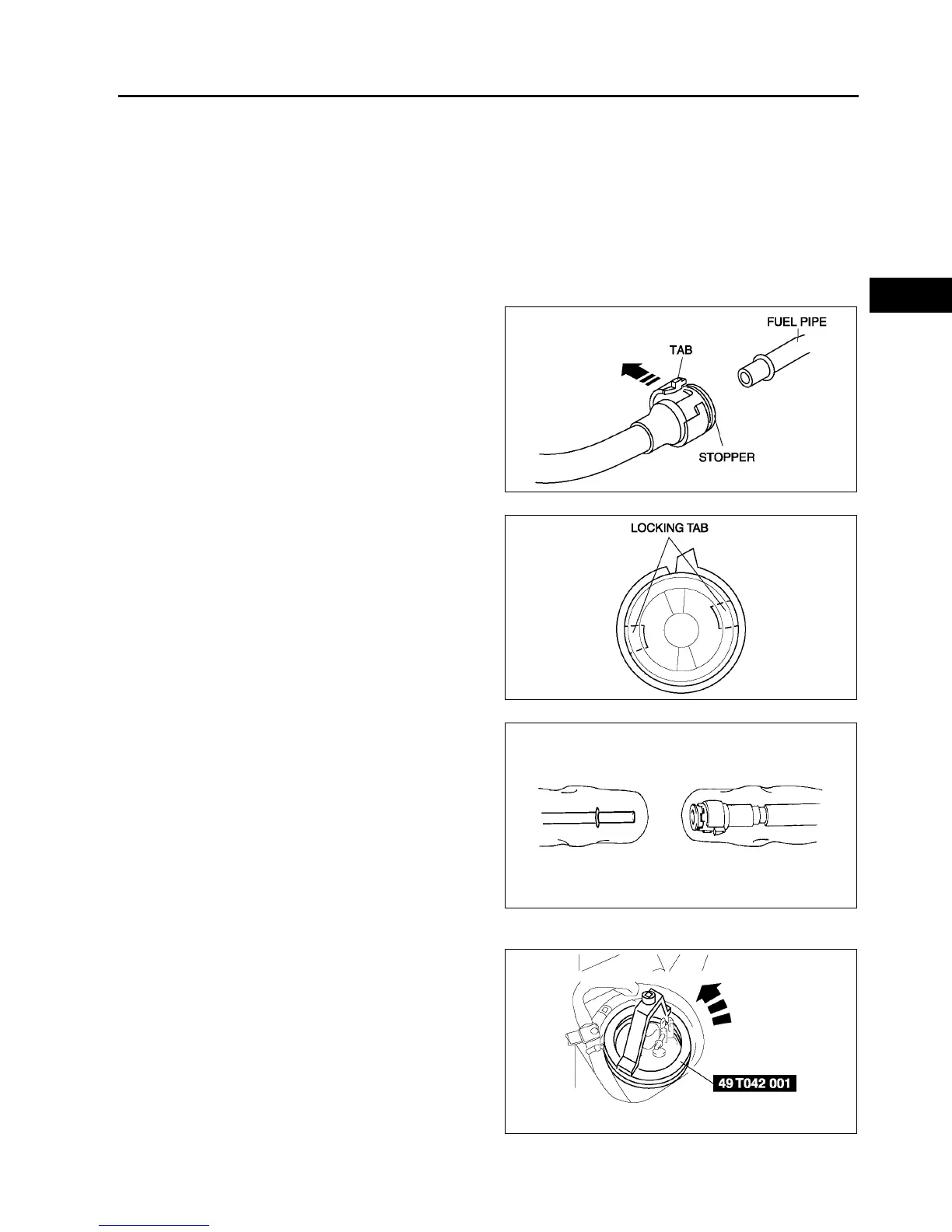

Plastic Fuel Hose Removal Note
Caution
• The quick release connector may be damaged if the tab is bent excessively. Do not expand the tab
over the stopper.
1. Disconnect the quick release connector.
(1) Push the tab on the locking coupler 90 degrees until it stops.
(2) Pull the fuel hose straight back.
Note
• The stopper may be removed from the quick connector. Take care not to lose it.
Reinstall it to the quick release connector
before reconnecting the fuel line.
• The locking coupler has two internal locking
tabs which retain the fuel pipe. Be sure that
the tab on the locking coupler is rotated until
it stops to release two internal locking tabs.
2. Cover the disconnected quick release connector
and fuel pipe with vinyl sheets or the like to
prevent them from being scratched or
contaminated with foreign material.
Fuel Pump Cap Removal Note
1. Using the SST, remove the fuel pump unit.
A6E3912W001
A6E3912W002
A6E3912W039
A6E3912W036
