FUEL SYSTEM
F–24–2
F
Note
• The disassembly/assembly procedure differs
depending on whether the nylon tube
between the fuel filter (high-pressure) and
fuel pump is equipped or not, or if the fuel
filter (high-pressure) and fuel pump are
replaced as a single unit or replaced
separately.

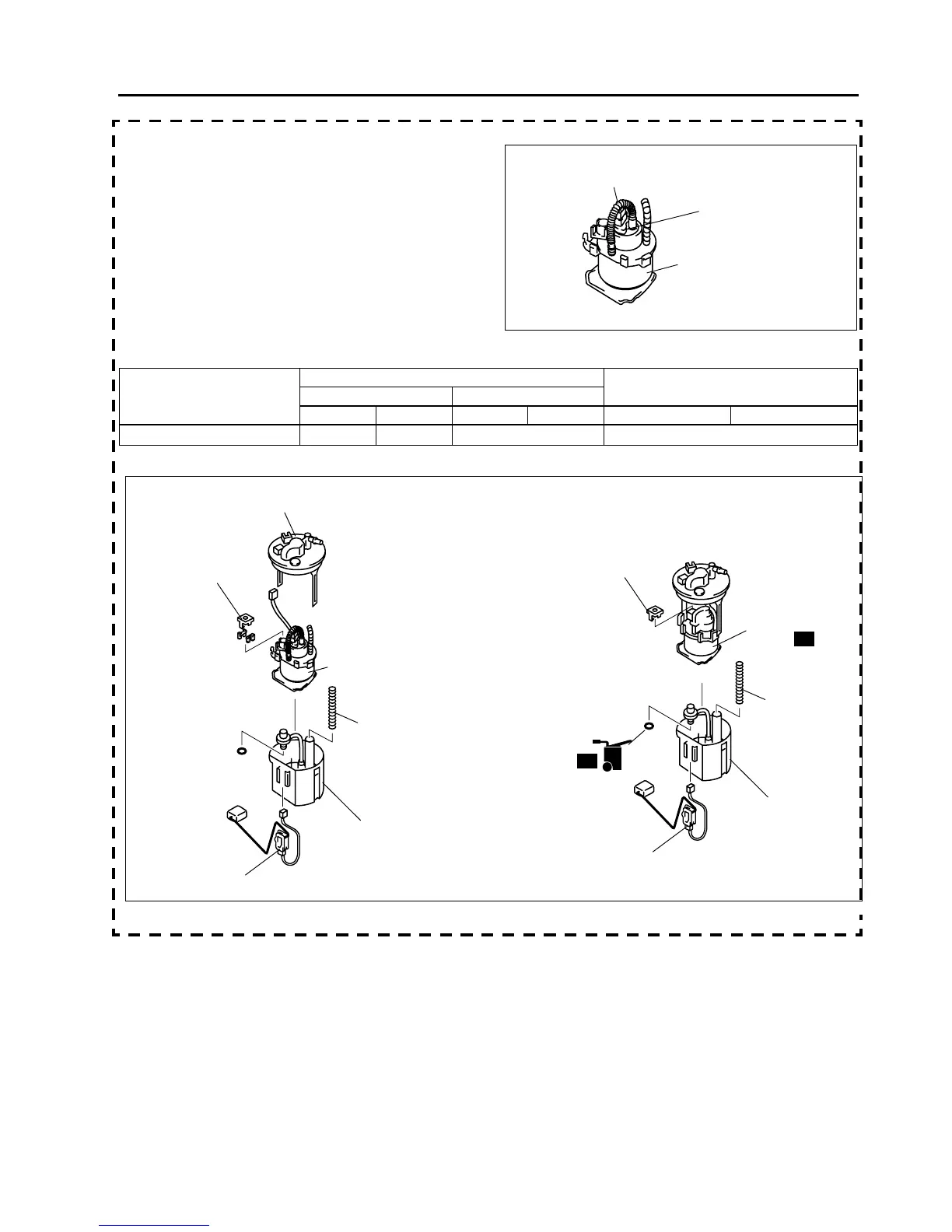

Type A; With nylon tube, replaced as a single unit (2WD)
NYLON TUBE
FUEL PUMP
FUEL FILTER
(HIGH-PRESSURE)
C6E114ZL4026
Specification
With nylon tube
Without nylon tube
Single Separately
2WD 4WD 2WD 4WD 2WD 4WD
Type A
—
BC
R
OIL
OIL
R
SET PLATE
HOLDING
COVER
HOLDING
COVER
FUEL FILTER
(HIGH-PRESSURE)
FUEL FILTER
(HIGH-PRESSURE)
SPRING
SPRING
RESERVE CUP
RESERVE CUP
FUEL GAUGE SENDER UNIT
FUEL GAUGE SENDER UNIT
DISASSEMBLY
ASSEMBLY
C6E114ZL4015
