Mazda 2002 6 - Page 132

FUEL SYSTEM
F–24–8
F
Note
• Perform Step 14 (4WD).
• Go to Step 15 (2WD).

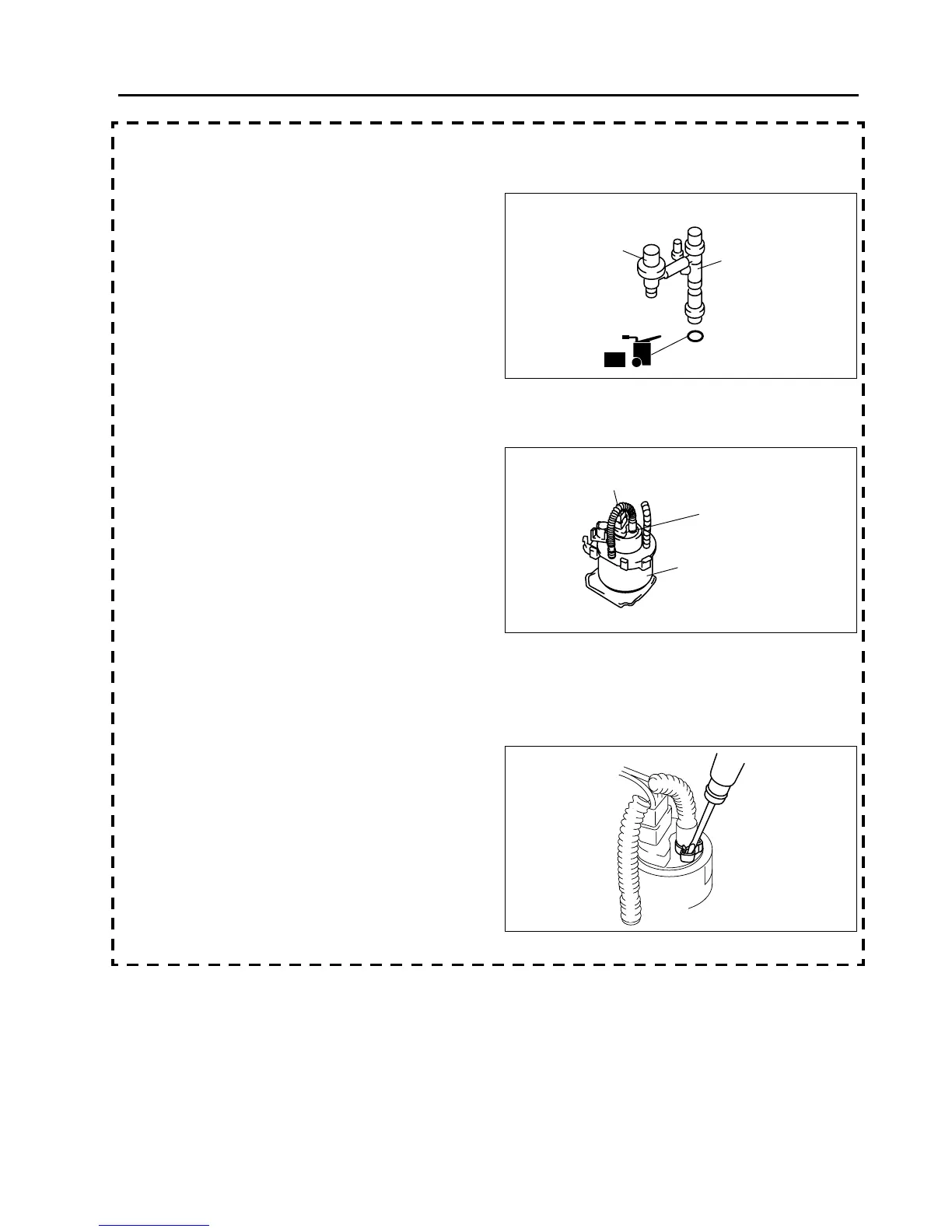

14. Remove the O-ring from the transfer jet pump and
replace with a new one (4WD).
Note
• The disassembly procedure differs
depending on whether the nylon tube
between the fuel filter (high-pressure) and
fuel pump is equipped or not, or if the fuel
filter (high-pressure) and fuel pump are
replaced as a single unit or replaced
separately
• Perform Step 15 (type B).
• Go to Step 23 (type A).
• Go to Step 19 (type C).
Type B
Caution
• Cut the nylon tube in the center. If it is cut at the both ends, it may cause pipe damage.
15. Cut apart the nylon tube in the center part between the fuel filter (high-pressure) and fuel pump.
16. Insert the tip of a flathead screwdriver into the
position shown in the figure and loosen the fuel
pump discharge pipe clip by slowly moving it left
and right.
17. Detach the clips.
R
OIL
OIL
4WD
PRESSURE
REGULATOR
TRANSFER
JET PUMP
O-RING
C6E114ZL4035
NYLON TUBE
FUEL PUMP
FUEL FILTER
(HIGH-PRESSURE)
C6E114ZL4026
C6E114ZL4007
