CONTROL SYSTEM
F–48–12

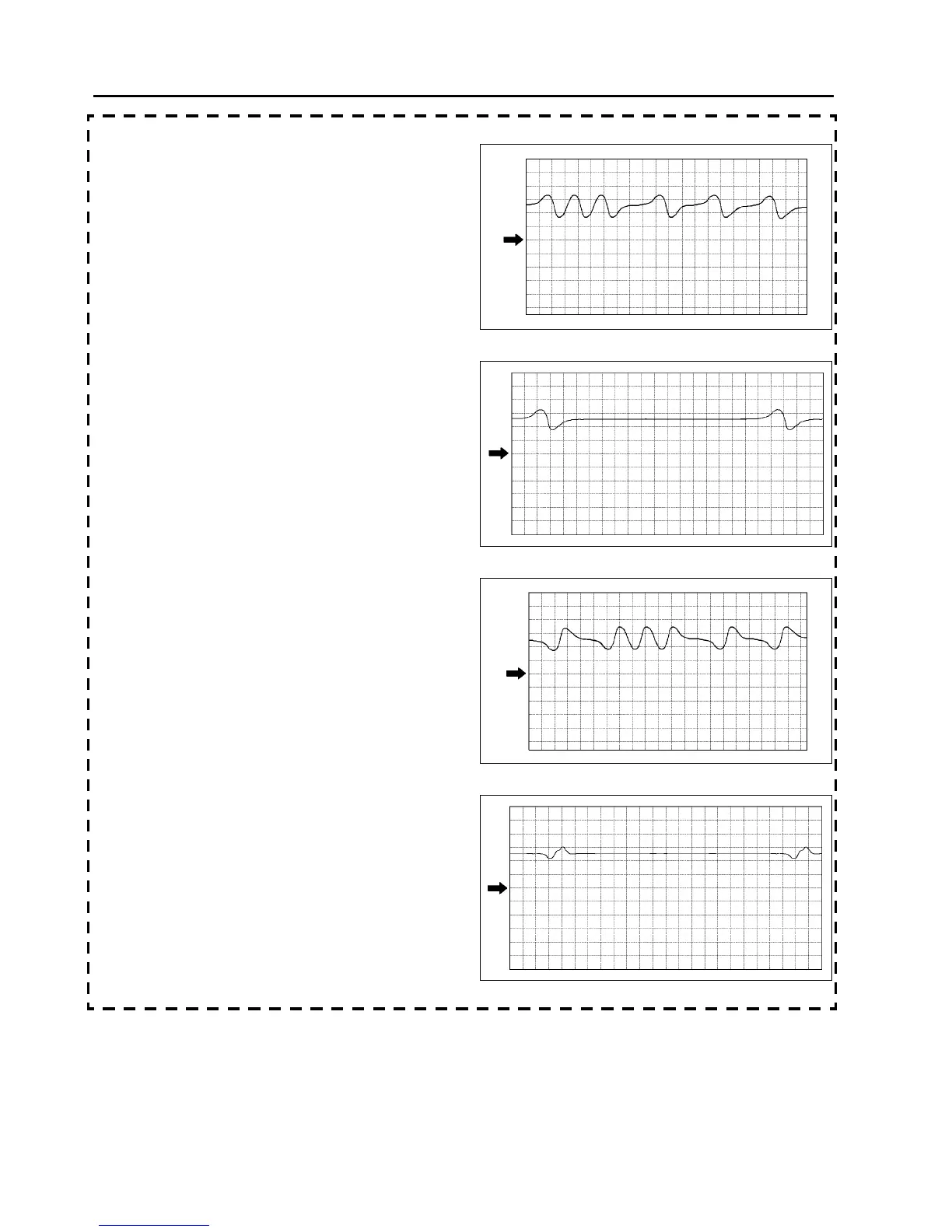

CMP sensor signal
L3 engine (+)
PCM terminals
• 2J(+)—2H(–)
Oscilloscope setting
• 1 V/DIV (Y), 10 ms/DIV (X), DC range
Vehicle condition
• Idle after warm up (engine speed approx. 650
rpm [MTX] or 700 rpm [ATX], no load, P/S off, A/C
off)
LF, L8 engine (+)
PCM terminals
• 2J(+)—2H(–)
Oscilloscope setting
• 1 V/DIV (Y), 10 ms/DIV (X), DC range
Vehicle condition
• Idle after warm up (engine speed approx. 650
rpm [MTX] or 700 rpm [ATX], no load, P/S off, A/C
off)
L3 engine (–)
PCM terminals
• 2M(+)—2H(–)
Oscilloscope setting
• 1 V/DIV (Y), 10 ms/DIV (X), DC range
Vehicle condition
• Idle after warm up (engine speed approx. 650
rpm [MTX] or 700 rpm [ATX], no load, P/S off, A/C
off)
LF, L8 engine (–)
PCM terminals
• 2M(+)—2H(–)
Oscilloscope setting
• 1 V/DIV (Y), 10 ms/DIV (X), DC range
Vehicle condition
• Idle after warm up (engine speed approx. 650
rpm [MTX] or 700 rpm [ATX], no load, P/S off, A/C
off)
0 V
A6A3940W012
0 V
A6A3940W013
0 V
A6A3940W014
0 V
A6A3940W015
